China Diesel Forklift Truck FD35 3.5 ton forklifts 3500kg with fork length 1070 mm
Date: 2022-04-20 View:

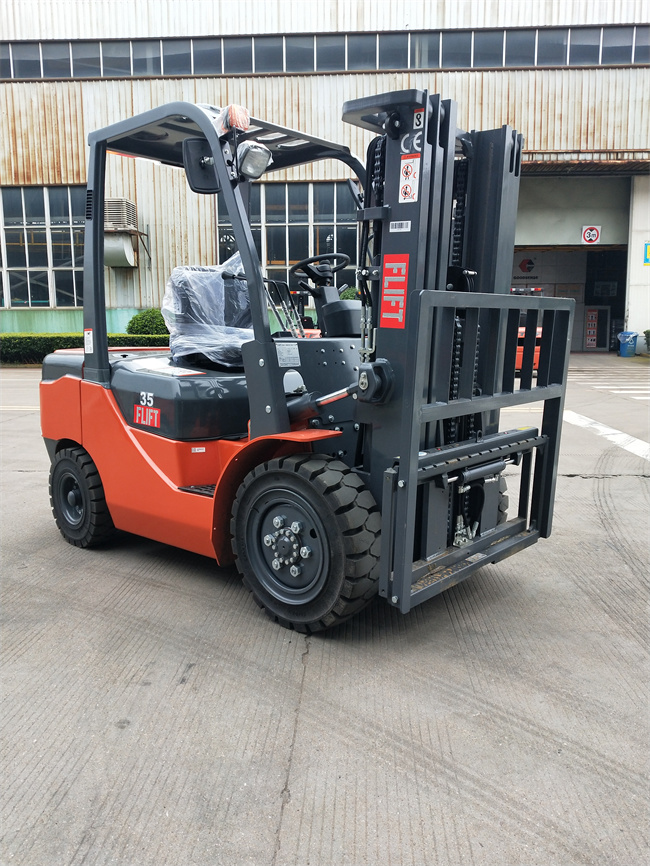

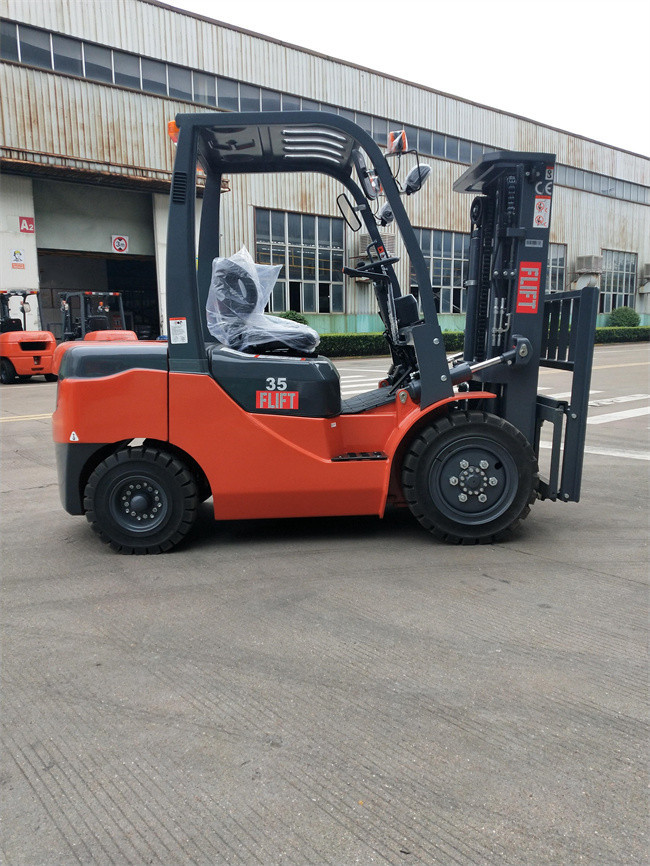

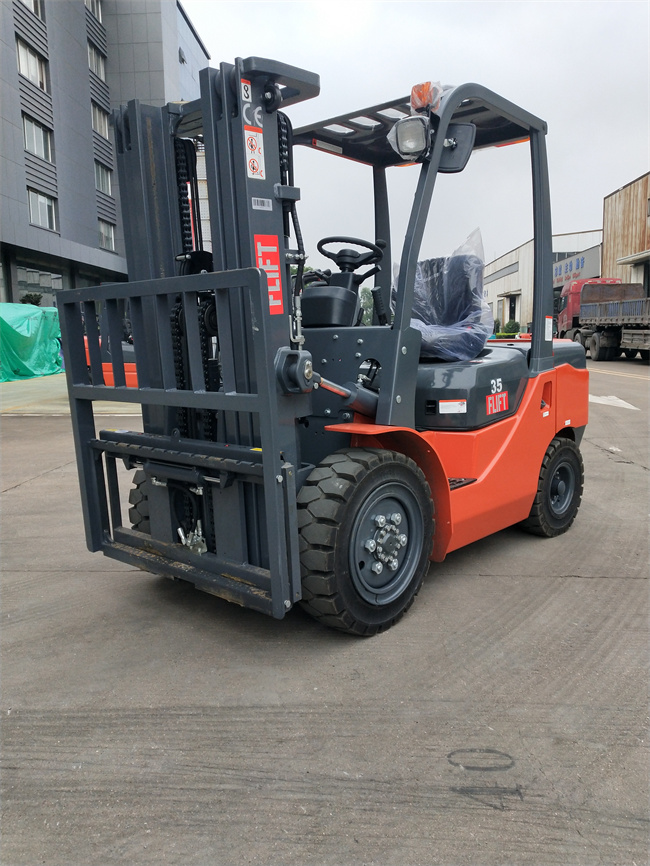

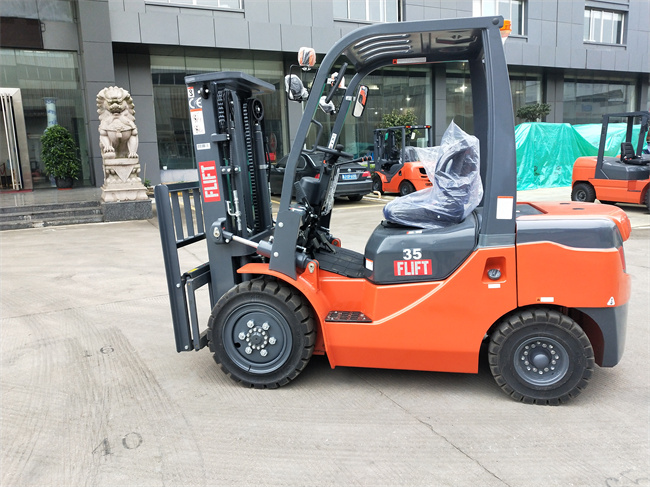

Innovative Design Chinese Engine Diesel Forklift FD35 3.5ton with Wide-view 2-stage 3meter mast
High Security Performance
The whole system comes standard with intelligent start system, vehicle hanging gear start preventing, improve safety and extend the service life of the gearbox.
> Seat with belt, provide a more comprehensive security for the driver.
> Overhead guard with high-strength steel plate stamping molding.
Reliable Lifting System
Wide-view mast design, providing superior vision, making the operation more security.High Performance Hydraulic System
Equipped with load sensing priority hydraulic system, flexible steering, mast lifting speed increased by 20%.
Comfortable Driving Space
Lengthened wheelbase design, reasonable functional layout, super comfortable and large driving space.
Special Design For Rental Customers
To meet the needs of forklift rental users, TCF forklift launched a series of user-friendly configuration.
Super High Ground Clearance
Chassis up to 200mm, the balance the ground clearance up to 220mm, excellent driving performance.
Product Parameters
Certificate
The Video of Product
High Security Performance
The whole system comes standard with intelligent start system, vehicle hanging gear start preventing, improve safety and extend the service life of the gearbox.
> Seat with belt, provide a more comprehensive security for the driver.
> Overhead guard with high-strength steel plate stamping molding.
Reliable Lifting System
Wide-view mast design, providing superior vision, making the operation more security.High Performance Hydraulic System
Equipped with load sensing priority hydraulic system, flexible steering, mast lifting speed increased by 20%.
Comfortable Driving Space
Lengthened wheelbase design, reasonable functional layout, super comfortable and large driving space.
Special Design For Rental Customers
To meet the needs of forklift rental users, TCF forklift launched a series of user-friendly configuration.
Super High Ground Clearance
Chassis up to 200mm, the balance the ground clearance up to 220mm, excellent driving performance.
Product Parameters
| Model | FD35 | |
| Power Type | Diesel | |
| Rated Capacity | kg | 3500 |
| Load Centre | mm | 500 |
| Lift Height | mm | 3000 |
| Fork Size | mm | 1070*125*50 |
| Mast Tilt Angle | Deg | 6°/12° |
| Front Overhang | mm | 480 |
| Ground Clearance | mm | 125 |
| Length to face of fork | mm | 2770 |
| Overall Width | mm | 1225 |
| Mast Lowered Height | mm | 2175 |
| Mast Extended Height | mm | 4160 |
| Turning Radius | mm | 2480 |
| Service Weight | mm | 4500 |
