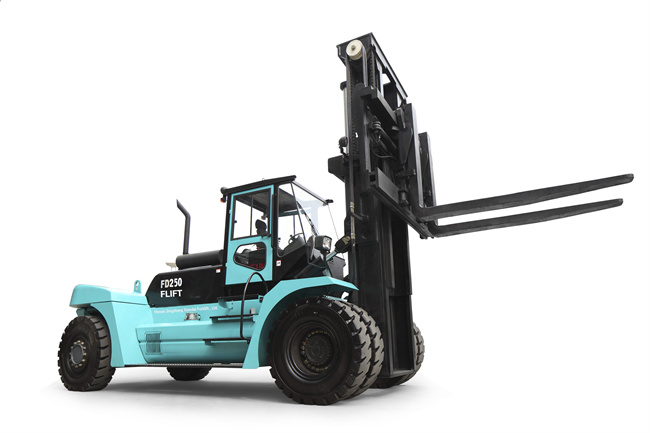

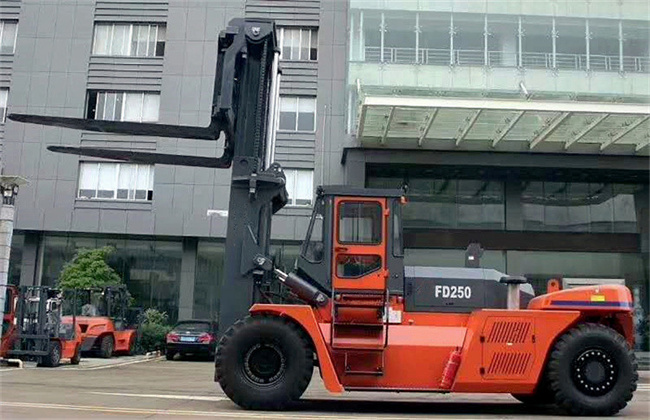

Big Tonnage Rated Capacity 25ton 24ton 22ton 20ton Diesel Forklift Truck with CE Certification

Date: 2022-08-12 View:

High Safety Diesel Forklift FD250 Rated Capacity 25ton 22ton 20ton Japanese /Chinese Engine with Pneumatic Tires

Security
Intelligent starting system, forklift hanging gear start prevent function,it improves the operation safety and longer gearbox service life.
Hydraulic power brake system, large capacity accumulator, reliable driving and emergency braking.
Overhead guard with high-strength steel plate one stamping, provide driver more sophisticated security.
Standard equipped button parking brake, effectively prevent the handbrake from accidentally release.


Comfort
Ergonomic design, rational operating device layout, equipped with adjustable seats (adjustment up to 150mm) and steering wheel.
The 10t and 12t model with fork positioner, easy to adjust the fork
distance; The 5-8tforlift have fork positioner for option.
A forklift models standard with hydraulic seeing system, easy and comfort to operate.


Advancement
World famous imported diesel and gasoline engine, Japan Okamura
gear box and wet drive axle for options.
Intelligent LCD instrument, CAN,Controller Area Network, real-time display of engine and forklift's working information.


Convenient Maintenance
Reasonable Body parts, large space, hood open angle of up to 70°,easy maintenance.





Product Parameters
Model
FD250
Power Type
Diesel
Rated Capacity kg 25000
Load Centre mm 1200
Lift Height mm 4000
Fork Size mm 2440x250x110
Mast Tilt Angle Deg 5°/10°
Front Overhang (Wheel Center to fork face) mm 1240
Ground Clearance (Bottom of mast) mm 250
Length to face of fork(Without fork) mm 6855
Overall Width mm 3050
Mast Lowered Height mm 4000
Mast Extended Height(With backrest) mm 6000
Overall Guard Height mm 3500
Turning Radius(outside) mm 6500

Certification


The Video of Product
