Descriptiom
                     Model No.

TF15-30

TF20-30

TF25-30

Rated Capacity (KG)

1500

2000

2500

Operate Type

Stand-on

Stand-on

Stand-on

Max. Lifting Height (MM)

3000

3000

3000

Min. Turning Radius(MM)

1625

1965

1965

Min. Stacking Aisle---mm (1000*1000 Pallet)

2622

2895

2895

Max Travel Speed km/h-laden/unladen

7.5/8.5

7.0/8.0

7.0/8.0

Load center MM

500

500

500

Fork Dimensions-L/W/T---mm---8.

1070*100*35

1070*100*45

1070*100*45

Max. Gradeability ---%

10

10

10

Lifting Speed (MM/S)-laden/unladen

117/243

110/243

110/243

Overall Length (MM)

2266

2468

2468

Overall Width (MM)

1098

1258

1258

Height-Overhead guard--mm

2320

2320

2320

Height---Mast Lowered(MM)

2080

2084

2084

Height-Mast Extended w/ Load-Backrest -mm

3885

3875

3875

Height--Free Lift --mm

100

100

100

Tilt Angle----Upward/Downward--deg.

3/5

3/5

3/5

Fork Spread Range(MM)

220-662

247-780

247-780

Reach Stroke

560

685

685

Min Ground Clearance--mm

80

80

80

Wheel Type

Polyurethane Solid Tyre

Driving Wheel (MM)

Φ343×108

Φ343×108

Φ343×108

Balance Wheel (MM)

Φ180×76

Φ180×76

Φ180×76

Front Wheel (MM)

Φ267×114

Φ267×114

Φ267×114

Battery V/AH- "TONGBA"BRAND

48V /300 AH

48/400AH

48V/400 AH

Service Brake

MECH.

Parking Brake

MECH.

Charger-Intelligent

48V /40 A

48V/50A

48 V/50 A

Driving Motor (KW)

5.5 (AC)

5.5 (AC)

5.5(AC)

Lifting Motor (KW)

6.3

7.5

7.5

OPTIONAL:

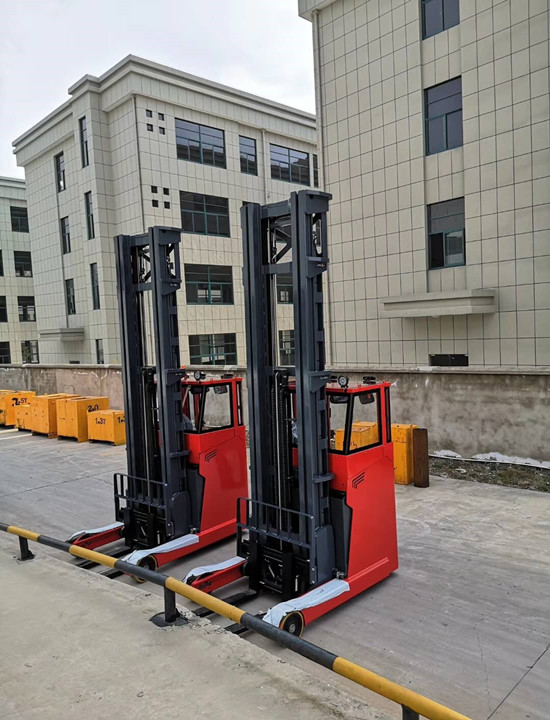

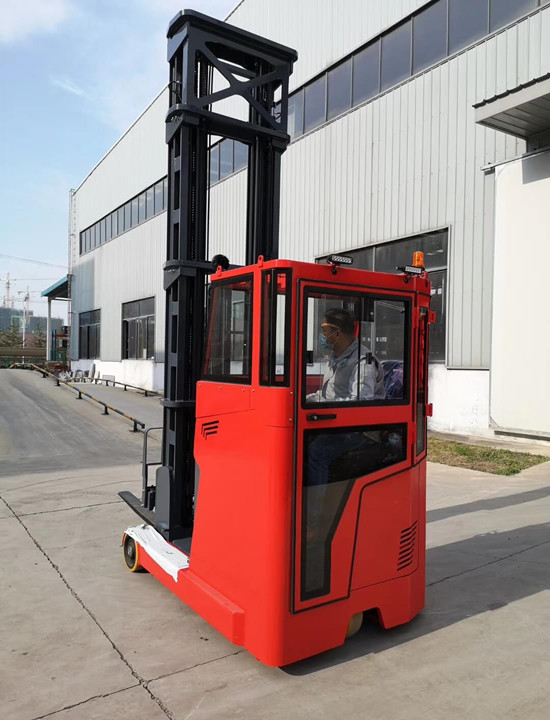

 Add conditioner and cabin, side shifter.

1.Advanced Performance Control:

1). Outstanding Stability in motion;

2).More Econmoical Maintenance -Forward battery loading/side battery loading;
Brushless motor;

3).Improved Inching Operation;

4).Energy Saving Design---Braking Regeneration,switchback Regeneration,Accelerator off Regeneration;

2.Advanced Safety

1).Reinforced Overhead guard and rear frame;

2). Automatic Suspension as standard equipment;

3). Neutral Safety function;

3. Advanced Comfort

1). Provide a wide visibility for enhanced operation;

2).Small-dismeter Steering wheel;

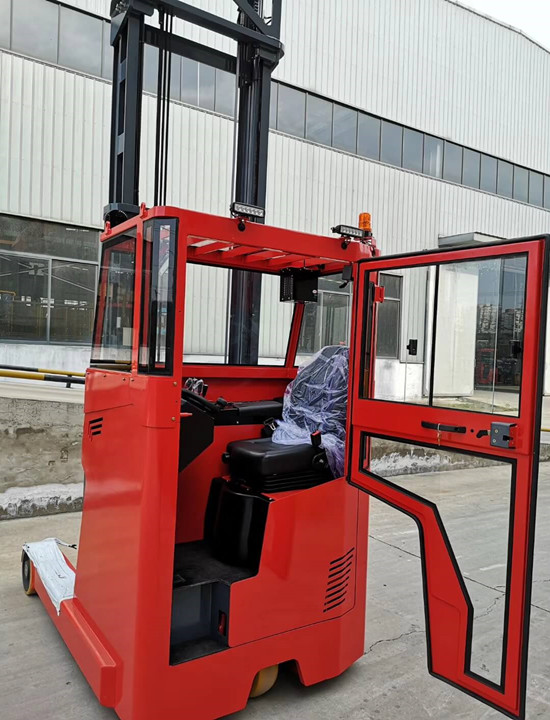

3).Enlarged operator space;

4).Mast Soft Landing and shock absorption function;
