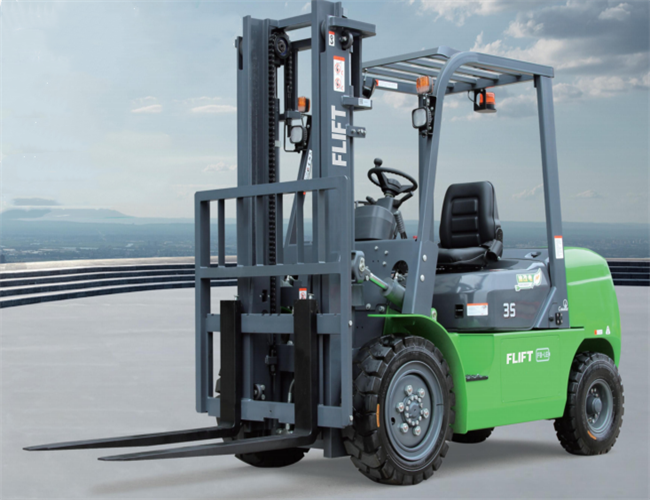

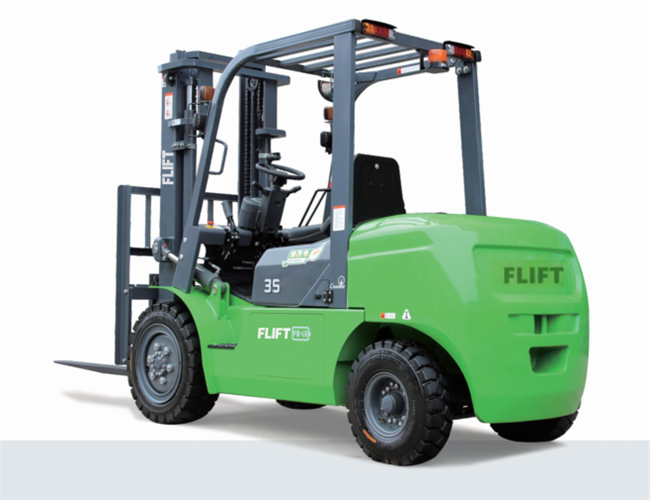

Factory New Design 3.8ton FB38LE Low Voltage Lithium Battery Forklift with Load Center 500mm

Date: 2022-07-11 View:

Innovative High Quality Low Voltage Lithium Battery Forklift with Fork length 1070mm


Comfortable Operating Space
The ergonomic all-round operation space layout is optimized to creat a good, comfortable and convenient drining experience for the operator.
*Front hydraulic joystick *Incllnation adjustable small diameter steering wheel *Sawtooth anti-skid pedals
*Wide vision gantry design *Front and rear adjustable wrap-around seat(adjustable range up to 150mm )


Advanced Electrical System
Using domestic controller, after professional adjustmant, the control of walking and lifting is accurate and efficient,and it has functions such as regenerative braking, ramp braking and fault self-diagnosis.

Product Parameters

Model


FB38LE

Power Type


Lithium Battery

Rated Capacity

kg

3800

Load Center

mm

500

Service weight

kg

4700

Tyre type


Air tires

Wheel number X=drive wheel


2x2/2

Tyre Size(Front)


28*9-15-14PR

Tyre Size(Rear)


6.50-10-10PR

Front Tread

mm

1000

Rear Tread

mm

960

Wheel base

mm

1800

Fork Size

mm

1070*125*50

Mast Tilt Angle

Deg

6/12

Lift Height

mm

3000
