FLIFT TD45 Four-wheel-drive Tow Tractor On Sale

Date: 2023-05-22 View:

FLIFT 45t 4WD Internal Combustion Tow Tractor On Sale

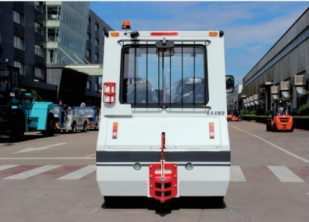

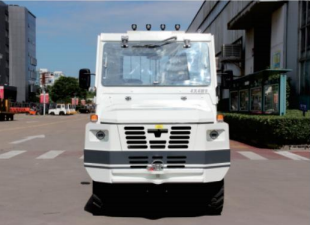

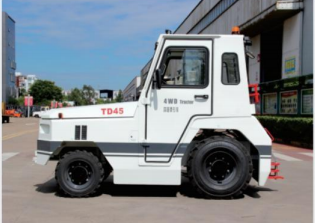

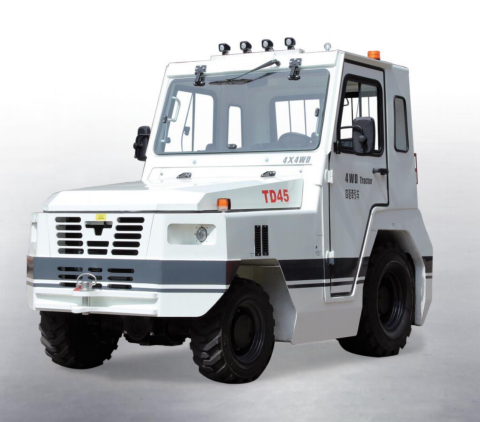

Product Appearance







Product Features
►The four -wheel-drive can drive on the slipping road
with high trafficability capacity provides a stable driving experience
which improves the safety of the tractor.
►Plate spring with hydraulic cylinder shock absorber damping and damping
provides a smoot driving configuration
which improves the smooth and comfortability of the tractor.
►The four-wheel-drive can drive on the slipping road with high trafficability capacity.
►All power works on the tyres improving the friction factor.

Product Parameter
Model TD45
Power Type Diesel
Rated Capacity 48000kg
Service Weight 5800kg
Overall Length 3840mm
Overall Width 1670mm
Height 2415mm
Wheelbase 1980mm
Front Overhang 820 mm
Rear Overhang 1040 mm
Wheel Tread(F/R) 1280/1260
Front Tire 27*10.5-15-14PR
Rear Tire 14-17.5-14PR
Towing Coupler Height(On/Under) 400/300
Ground Clearance 200 mm
Turning Radius 4300 mm
Travel Speed(Unloaded) 25 km/h
Front Axle Load 1900 kg
Rear Axle Load 3900 kg
Max Drawbar Pull 45 kN
Max. Gradeability 45%
Engine model KDI2504TCR
Rated Power 55.4/2600
Rated Torque 300/1500N·m
Emission Standard Stage 3B/Tier 4 Final
Transmission Model 4WD35
Transmission Type Hydraulic Power
FWD/Stage 2/1
Operating Type Hydraulic Transmission

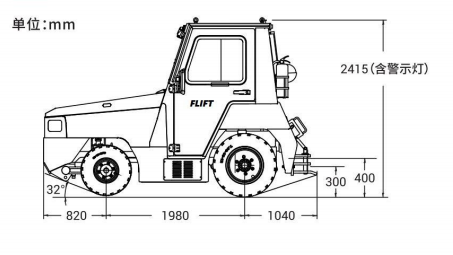

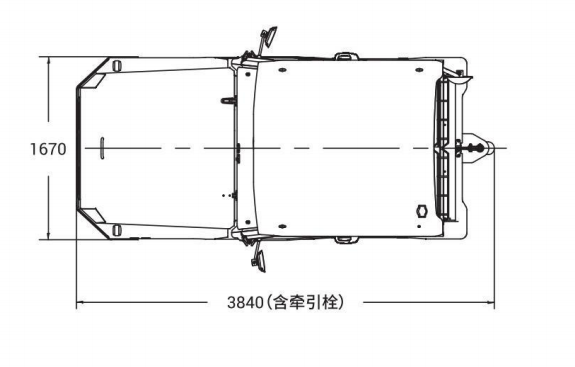

Vehicle Dimensions
