High Efficient Rated Capacity 1500kg CDD10Y/15Y Rough Terrain Fully Electric Pallet Stacker with Load center 600mm

Date: 2022-06-17 View:

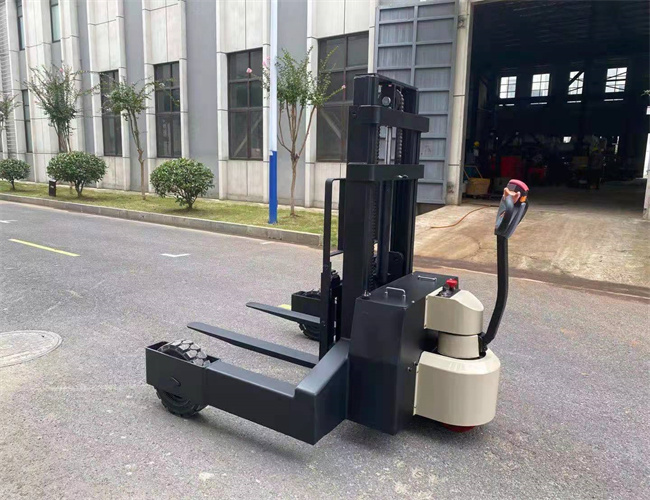

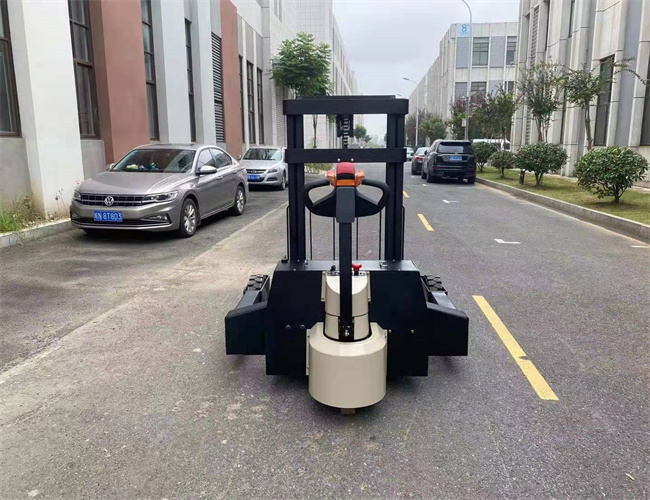

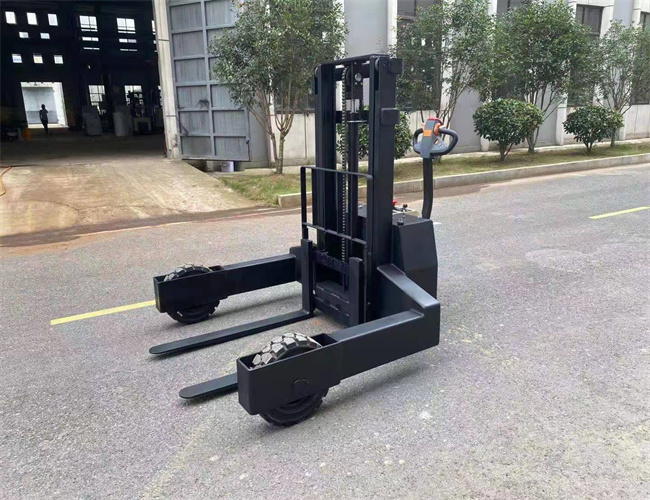

Factory Supply 1.5t Walking Type Rough Terrain Filly Electric Pallet Stacker with Fork Length 1070mm


Configuration/Performance
Ac drive motor, strong climbing force, high strength fork legs, forged fork, high strength forklift special door frame channel steel, Large-capacity maintenance-free battery, built-in special charger, multi-function integrated handle, front wheel solid rubber tire, high-power lifting hydraulic pump station, excellent climbing and passing performance.

Security
Drive stepless speed regulation, safety, mute, controller multiple automatic protection system, emergency reverse anti-collision device, Emergency power off switch forged fork, bend deceleration optional lithium battery, suitable for single/double side tray, provide non-standard customization.


Product Parameters
Driving type
Electric
Operation type
Standing
Rated Capacity kg 1500
Load center mm 600
Self Weight kg 785
Tyre
Solid Rubber
Driving Wheel size mm 300*80
Bearing Wheel size mm 406*110
Overall height mm 2130
Lifting Height mm 1600
Min. Fork Ground Clearance mm 60
Operating handle height above ground mm 1320
Overall Length mm 1960
Overall width mm 1580
Fork length mm 1070

Certification
