China FLIFT CE approved 2.5 ton LPG forklift truck with NISSAN K21 engine
Date: 2022-02-08 View:
FLIFT optional engine new gas forklift small 2.5 ton lpg gasoline forklift with side shifter triple mast
FLIFT forklift with wide-view mast, gives the operator great efficiency and safety.

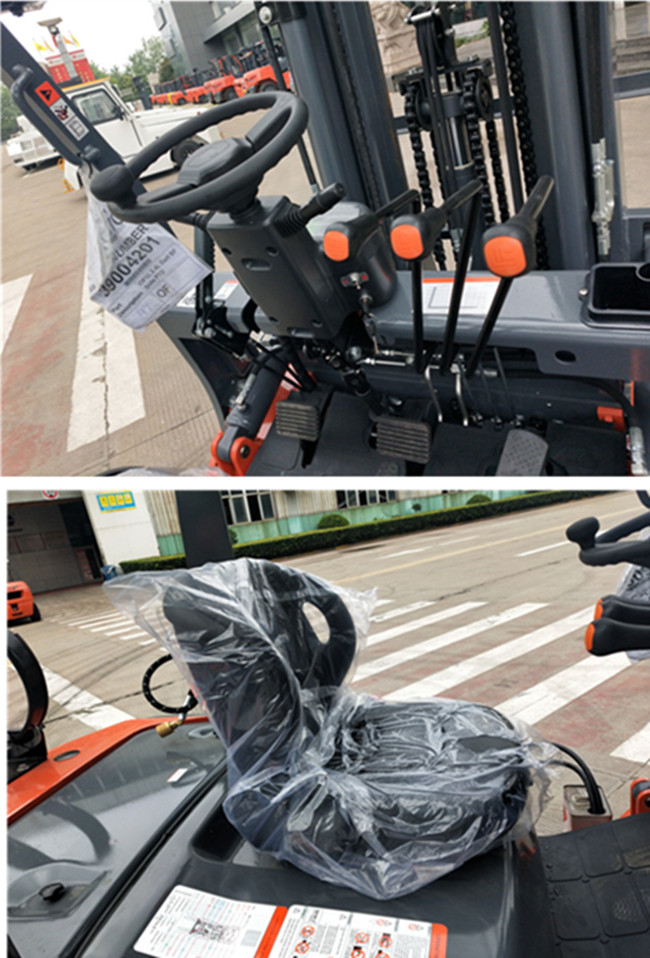

Adjustable safety seat, designed according to ergonomic principles, makes operation much comfortable.

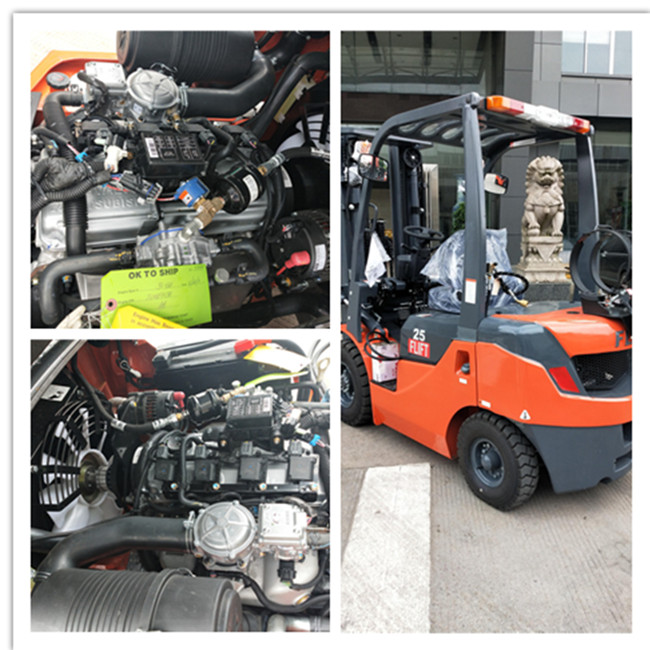

Engine can be opptional Kubota WG2503 engine or US PSI2.4 EPA engine, or else suitable for you.
Lifting height, side shifter, attachment,can be customized as your request.
Technical Data Sheet：
FLIFT forklift with wide-view mast, gives the operator great efficiency and safety.
Adjustable safety seat, designed according to ergonomic principles, makes operation much comfortable.
Engine can be opptional Kubota WG2503 engine or US PSI2.4 EPA engine, or else suitable for you.
Lifting height, side shifter, attachment,can be customized as your request.
Technical Data Sheet：
| Model | FY25 | |
| Rated Capacity | kg | 2500 |
| Load Centre | mm | 500 |
| Lift Height | mm | 3000 |
| Fork Size(L*W*T) | mm | 1070*120*40 |
| Mast Tilt Angle(F/R) | Deg | 6°/12° |
| Front Overhang (Wheel Center to fork face) | mm | 470 |
| Ground Clearance (Bottom of mast) | mm | 120 |
| Length to face of fork(Without fork) | mm | 2600 |
| Overall Width | mm | 1150 |
| Mast Lowered Height | mm | 2055 |
| Mast Extended Height(With backrest) | mm | 4050 |
| Overall Guard Height | mm | 2070 |
| Turning Radius(outside) | mm | 2310 |
| Min. insecting aisle | mm | 2380 |
| Travel Speed (Empty load) | km/h | 19 |
| Lifting Speed (Full load) | mm/s | 530 |
| Max. Gradeability | % | 20 |
| Wheel Base | mm | 1600 |
| Service Weight | kg | 3700 |
| Battery Voltage/Capacity | V/Ah | 12/80 |
| Transmission | Hydraulic |
3 Stage 5.5 meter mast forklift video showing:
