Good price wide leg 1.5 ton rough terrain electric pallet stacker
Date: 2022-02-25 View:

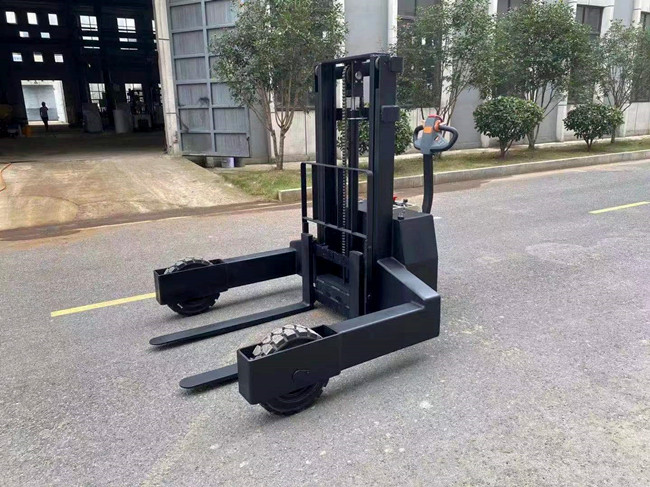

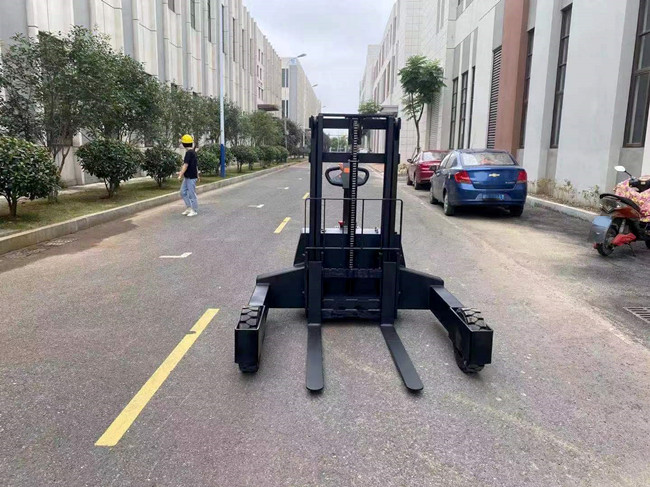

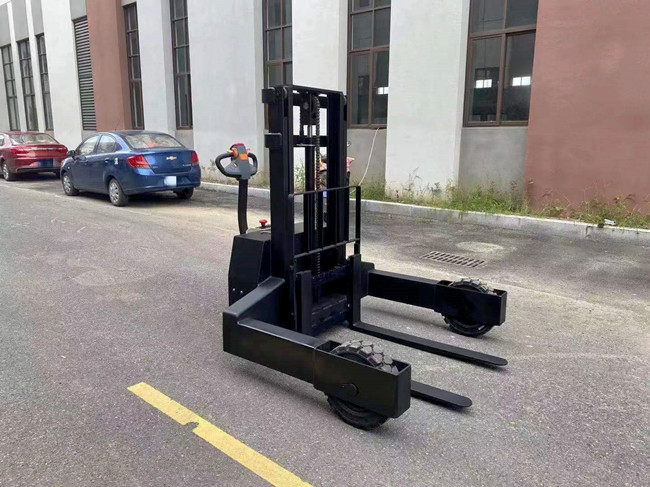

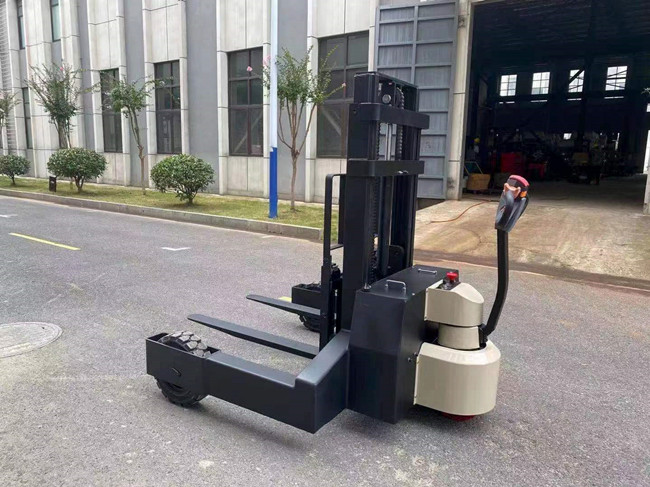

FLIFT 1.5 Ton Outdoor Electric All Terrain Pallet Stacker
The FLIFT rough terrain electric pallet stacker is equipped with an AC drive motor and has strong climbing ability.
The FLIFT electric all-terrain pallet stacker with built-in special charger and multi-kinetic integrated handle is favored by the market.
FLIFT forklifts CE approved:
.png)
Equipped with high-strength fork legs and forged forks, the load-bearing is more stable and safe.
The FLIFT 1.5 ton outdoor electric all-terrain pallet stacker is equipped with a large-capacity maintenance-free battery, which not only meets the normal working hours, but also reduces the cumbersome maintenance of the battery.
About the safety of the FLIFT rough terrain electric stacker:
1. Drive stepless speed regulation, safety and mute;
2. The controller has multiple automatic protection systems;
3. Configure emergency reverse collision avoidance device
4. Equipped with emergency power off switch;
5. Curve deceleration device.
The FLIFT electric all-terrain pallet stacker with built-in special charger and multi-kinetic integrated handle is favored by the market.
| Model | CDD15Y | |
| Rated capacity | kg | 1500 |
| Load center | mm | 600 |
| Service weight | kg | 785 |
| Tyre type | Solid | |
| Drive wheel | mm | 300*80 |
| Bearing wheel | mm | 406*110 |
| Overall height | mm | 2130 |
| Lift height | mm | 1600 |
| Height of fork above ground | mm | 60 |
| Operating handle height above ground | mm | 1320 |
| Overall lenght | mm | 1960 |
| Overall width | mm | 1580 |
| Fork lenght | mm | 1070 |
| Fork adjust distance | mm | 240-720 |
| Ground clearance | mm | 120 |
| Inside the leg width | mm | 1270 |
| Turning radius | mm | 1555 |
| Travel speed (full load/no load) | km/h | 3.5/4.5 |
| Lifting speed (full load/no load) | mm/s | 13/25 |
| Max. gradeability (full load/no load) | % | 8/10 |
| Break | electromagnetic | |
| Drive motor | kw | 1.5 AC |
| Lift motor | kw | 2.2 |
