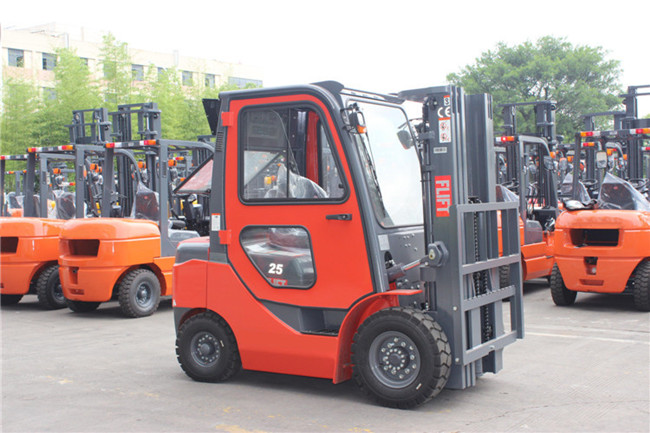

Popular Model CE Certified Factory Price China FLIFT 2.5 Ton Diesel Forklift with enclosed cabin
Date: 2022-02-08 View:
China Professional Manufacturer FLIFT 4500mm triplex mast diesel forklift with enclosed cabin cheap price

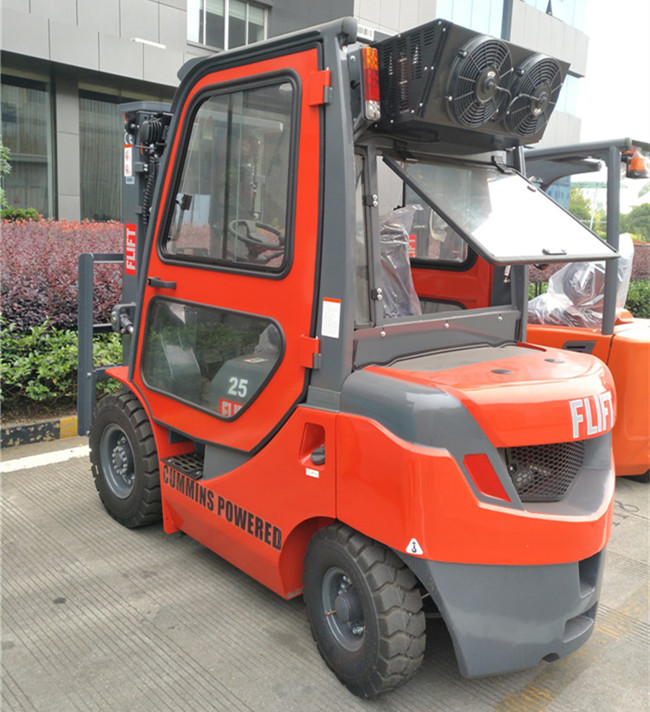

2.5 ton FLIFT diesel forklift with enclosed cabin wiht EPA CUMMINS engine

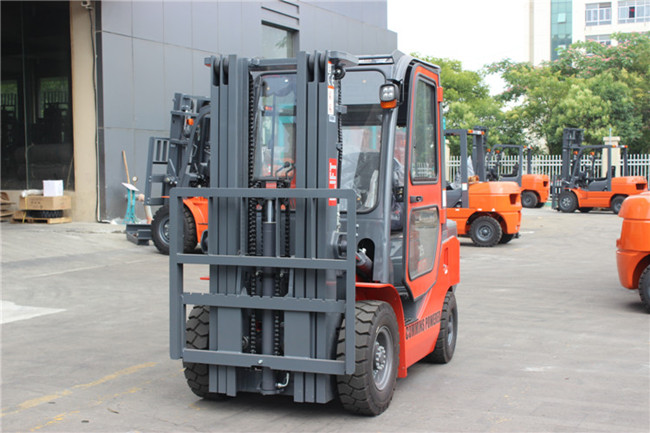

Triplex 4.5 metter mast, can be optional side shifter or other forklift attachments
Air conditioner, gives the oprationer more comfortable environment
High quality simple design, easy oprate, high efficiency working!
Some specifications of standard 2.5 ton diesel forklift:
2.5 ton FLIFT diesel forklift with enclosed cabin wiht EPA CUMMINS engine
Triplex 4.5 metter mast, can be optional side shifter or other forklift attachments
Air conditioner, gives the oprationer more comfortable environment
High quality simple design, easy oprate, high efficiency working!
Some specifications of standard 2.5 ton diesel forklift:
| Model | FD25 | |
| Rated Capacity | kg | 2500 |
| Load Centre | mm | 500 |
| Lift Height | mm | 3000 |
| Fork Size (L*W*T) | mm | 1070*120*40 |
| Mast Tilt Angle (F/R) | Deg | 6°/12° |
| Front Overhang (Wheel Center to fork face) | mm | 470 |
| Ground Clearance (Bottom of mast) | mm | 120 |
| Length to face of fork(Without fork) | mm | 2600 |
| Overall Width | mm | 1150 |
| Mast Lowered Height | mm | 2055 |
| Mast Extended Height(With backrest) | mm | 4050 |
| Overall Guard Height | mm | 2070 |
| Turning Radius(outside) | mm | 2310 |
| Min. insecting aisle | mm | 2380 |
| Travel speed (Empty load) | km/h | 19 |
| Lifting speed (Full load) | mm/s | 520 |
| Max. Gradeability | % | 20 |
| Wheel Base | mm | 1600 |
| Service Weight | kg | 3700 |
| Battery Voltage/Capacity | V/Ah | 12/80 |
| Transmission | Hydraulic |
FLIFT 2.5 ton diesel forklift with enclosed cabin with air conditioner video showing:
