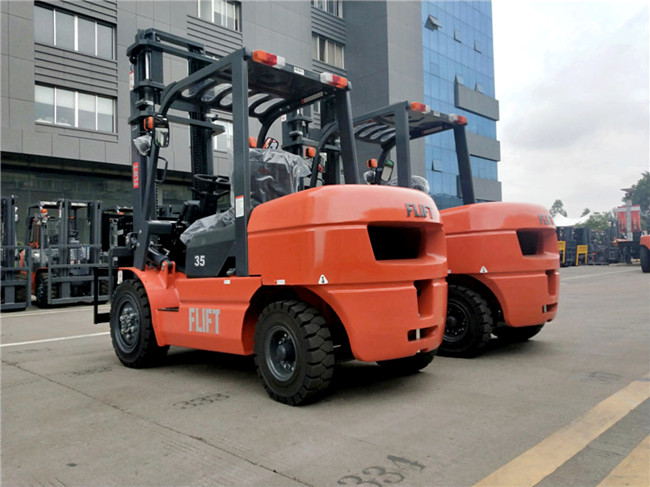

FLIFT 3.5 ton T-series diesel forklift FD35 with good price
Date: 2022-02-10 View:

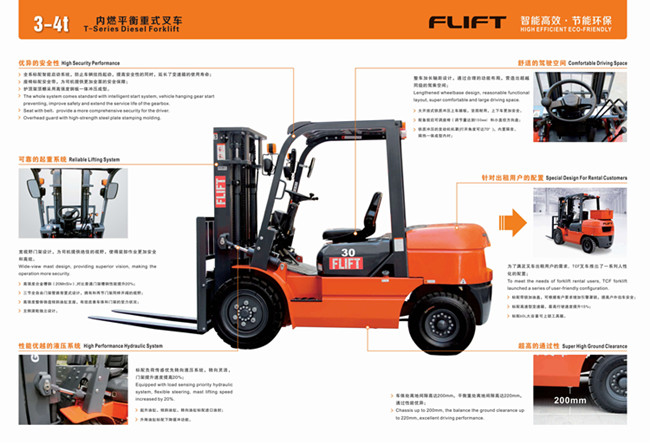

FLIFT high performance cheap price T-series 3.5 ton diesel forklift truck
FLIFT T-series diesel forklift the whole system comes standard with intelligent start system, vehicle hanging gear start preventing, improve safety and extend the service life of the gearbox.
2-stage 4 meters mast, wide-view mast design, providing superior vision, making the operation more security.

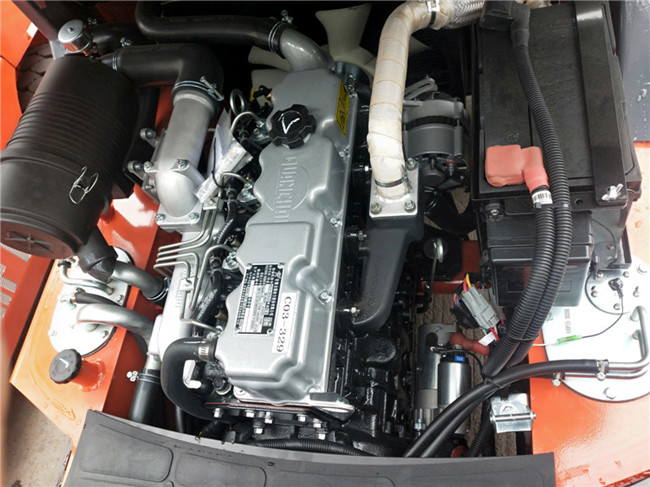

Chinese high quality engine, can be optional as your request.
Chassis up to 200mm, the balance the ground clearance up to 220mm, excellent driving performance.
FLIFT T-series diesel forklift the whole system comes standard with intelligent start system, vehicle hanging gear start preventing, improve safety and extend the service life of the gearbox.
2-stage 4 meters mast, wide-view mast design, providing superior vision, making the operation more security.
Chinese high quality engine, can be optional as your request.
Chassis up to 200mm, the balance the ground clearance up to 220mm, excellent driving performance.
| Model | FD35 | |
| Rated Capacity | kg | 3500 |
| Load Centre | mm | 500 |
| Lift Height | mm | 3000 |
| Fork Size (L*W*T) | mm | 1070*125*50 |
| Mast Tilt Angle (F/R) | Deg | 6°/12° |
| Front Overhang (Wheel Center to fork face) | mm | 485 |
| Ground Clearance (Bottom of mast) | mm | 140 |
| Length to face of fork(Without fork) | mm | 2835 |
| Overall Width | mm | 1230 |
| Mast Lowered Height | mm | 2150 |
| Mast Extended Height(With backrest) | mm | 4175 |
| Overhead Guard Height | mm | 2110 |
| Turning Radius(outside) | mm | 2570 |
| Min. intersecting aisle | mm | 2650 |
| Travel(Empty load) | km/h | 20 |
| Lifting(Full load) | mm/s | 440 |
| Max. Gradeability | % | 20 |
| Wheel Base | mm | 1800 |
| Service Weight | kg | 4650 |
| Battery Voltage/Capacity | V/Ah | 12/80 |
| Transmission | Hydraulic |
CE certificate:
