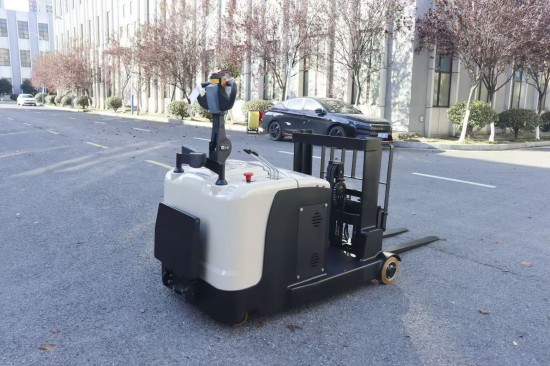

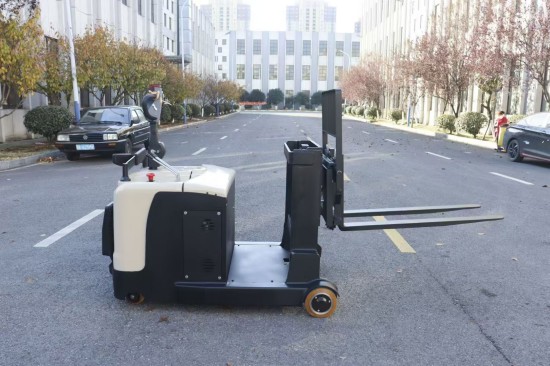

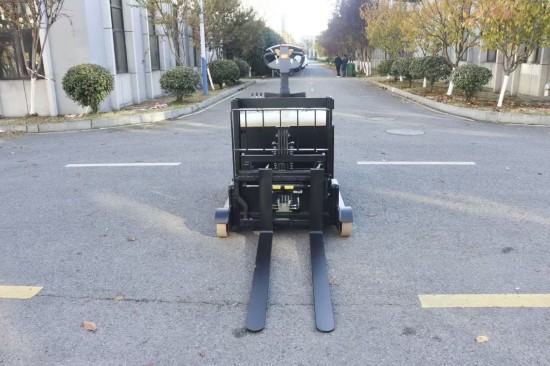

Counter balanced electric pallet stacker
Date: 2024-12-10 View:
engineered for efficient material handling with exceptional efficiency and precision.
Crafted to enhance operational capabilities,
this stacker boasts a robust 1500kg load capacity
while offering customizable lifting heights up to 500mm to meet various industrial needs.
Furthermore, its 1220mm extended fork length provides optimal reach and support for various pallet sizes
making this an indispensable tool in any warehouse or distribution center.
dynamic fork tilt angle that adjusts forward 3 degrees and backward 5 degrees,
maneuvering loads has never been simpler or more precise.
An advanced electronic steering system simplifies navigation through tight spaces without compromising safety;
additionally, a protective pedal arm ensures safe operation even during high-demand tasks.
with our cutting-edge America Curtis control system paired with combination locks
and magnetic card key devices from Safeware.
This integration streamlines access management while protecting operations against unauthorized usage.
Whether your goal is optimizing workflows or elevating operational standards,
our Counterweight Electric Pallet Stacker meets modern logistics challenges with style and dependability.
with a forward angle of 3 degrees and a backward angle of 5 degrees.
Counterbalance Electric Pallet Stacker vs. Standard Electric Pallet Stacker
Electric pallet stackers are vital tools in warehouses and material handling industries,
enabling efficient movement and stacking of goods.
Within this category,counterbalance electric pallet stackers and standard electric pallet stackers
are two distinct configurations that serve different operational needs.
This analysis explores their key differences, considering performance, design, usage, and advantages,
with an emphasis on the counterbalance electric pallet stacker configuration.
1. Overview of Electric Pallet Stackers
Electric pallet stackers are motorized devices designed to lift, move, and stack pallets.
They typically include a platform or forks for handling pallets,
an electric motor for propulsion, and a mast for lifting.
The primary goal of these machines is to reduce manual labor and increase efficiency in loading docks,
warehouses, and retail backrooms.
· Counterbalance Electric Pallet Stacker: Characterized by a built-in counterweight behind the mast,
these stackers eliminate the need for support legs,
allowing unencumbered operation near pallet racks or when lifting open-bottom pallets.
· Standard Electric Pallet Stacker: Features support legs or outriggers at the front to provide stability during lifting.
These stackers are optimized for smooth floor operation and are generally more compact and lightweight.
2. Design and Configuration
Counterbalance Electric Pallet Stacker
Counterweight System: The defining feature is the integrated counterweight at the rear,
which balances the load being lifted by the forks.
This design mimics the configuration of a counterbalance forklift.
Forks and Reach: The absence of front support legs allows the forks to extend directly into pallets,
making them suitable for handling closed or open-bottom pallets.
Maneuverability: Designed for flexibility in tighter spaces without requiring additional clearance for support legs.
Standard Electric Pallet Stacker
Support Legs: Equipped with outriggers for stability,
ensuring the stacker remains balanced even when handling heavier loads.
Floor Clearance: The support legs necessitate a clear floor surface and are not compatible
with closed-bottom pallets unless auxiliary tools are used.
making it a cost-effective option for operations that do not require specialized handling.
2. Design and Configuration
Counterbalance Electric Pallet Stacker
Counterweight System: The defining feature is the integrated counterweight at the rear,
which balances the load being lifted by the forks.
This design mimics the configuration of a counterbalance forklift.
Forks and Reach: The absence of front support legs allows the forks to extend directly into pallets,
making them suitable for handling closed or open-bottom pallets.
Maneuverability: Designed for flexibility in tighter spaces without requiring additional clearance for support legs.
Standard Electric Pallet Stacker
Support Legs: Equipped with outriggers for stability,
ensuring the stacker remains balanced even when handling heavier loads.
Floor Clearance: The support legs necessitate a clear floor surface and are not compatible
with closed-bottom pallets unless auxiliary tools are used.
making it a cost-effective option for operations that do not require specialized handling.
3. Applications
Counterbalance Electric Pallet Stacker
Versatile Handling: Ideal for industries requiring the flexibility to handle diverse pallet types (e.g., closed-bottom pallets).
Narrow Aisle Compatibility: Preferred in warehouses with narrow aisles or confined storage areas,
as the lack of support legs enables closer operation.
Multi-Use Scenarios: Suitable for applications beyond warehousing, such as loading/unloading trucks,
where the machine's ability to operate without outriggers is a significant advantage.
Standard Electric Pallet Stacker
Specific Use Cases: Best suited for repetitive tasks involving open-bottom pallets in warehouses
or retail environments with flat, open floors.
Cost-Efficiency: Provides an economical solution for low to medium-intensity applications
where operational flexibility is less critical.
4. Performance and Load Capacity
Counterbalance Electric Pallet Stacker
Higher Load Capacity: The counterweight system allows these stackers to lift heavier loads without tipping,
making them suitable for industrial use.
Extended Reach: Can lift loads higher than standard stackers, beneficial in vertical storage systems.
Load Placement Flexibility: Better at precise load placement due to the absence of support legs.
Standard Electric Pallet Stacker
Stability: The support legs provide excellent stability, especially when lifting loads to moderate heights.
Load Restrictions: Typically handles lighter loads compared to counterbalance models,
limiting their application in heavy-duty industries.
5. Ease of Operation and Ergonomics
Counterbalance Electric Pallet Stacker
Operator Flexibility: Enhanced maneuverability allows operators to position the stacker with precision.
Learning Curve: Slightly steeper learning curve due to the counterweight configuration,
which requires familiarity with its handling characteristics.
Standard Electric Pallet Stacker
Ease of Use: Simpler to operate, especially for inexperienced workers,
owing to its straightforward design and built-in stability from the outriggers.
Training Requirements: Minimal training is required for basic operations.
6. Cost and Maintenance
Counterbalance Electric Pallet Stacker
Higher Initial Investment:
The complexity of the counterweight system and
enhanced lifting capabilities often make these stackers more expensive upfront.
Maintenance Needs: Requires regular maintenance of the counterweight and hydraulic systems,
leading to slightly higher operational costs.
Durability: Built for heavy-duty use, offering long-term reliability when properly maintained.
Standard Electric Pallet Stacker
Lower Cost: Affordable initial cost, making it a practical choice for small to medium-sized businesses.
Simple Maintenance: Fewer components result in lower maintenance requirements and reduced downtime.
Lifecycle: Best suited for light to moderate usage; durability may be a concern under heavy-duty conditions.
7. Safety Considerations
Counterbalance Electric Pallet Stacker
Tipping Risks: Proper training is essential to mitigate tipping risks,
especially when lifting loads at high elevations or turning while carrying heavy loads.
Operator Visibility: Counterweight design may slightly obstruct rear visibility, requiring operators to exercise caution.
Standard Electric Pallet Stacker
Stable Operation: Support legs minimize tipping risks, providing added security for less experienced operators.
Visibility: More compact design generally ensures better visibility during operation.
8. Environmental Considerations
Counterbalance Electric Pallet Stacker
Indoor and Outdoor Use: Designed for both indoor and limited outdoor use,
making it versatile in various environments.
Surface Adaptability: Can navigate uneven surfaces better than standard stackers due to the absence of support legs.
Standard Electric Pallet Stacker
Primarily Indoor: Optimized for smooth, flat indoor surfaces; not suitable for uneven terrains or outdoor use.
Restricted Movement: Support legs may impede operation on non-uniform surfaces.

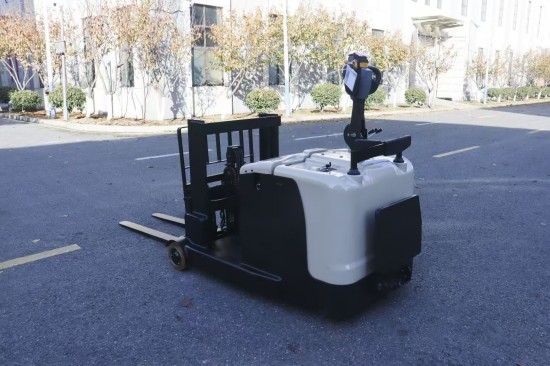

Counter balanced electric pallet stacker
