FLIFT Airport Equipment 2.5 Ton Electric Baggage Tractor With Cheap Price

Date: 2023-05-16 View:

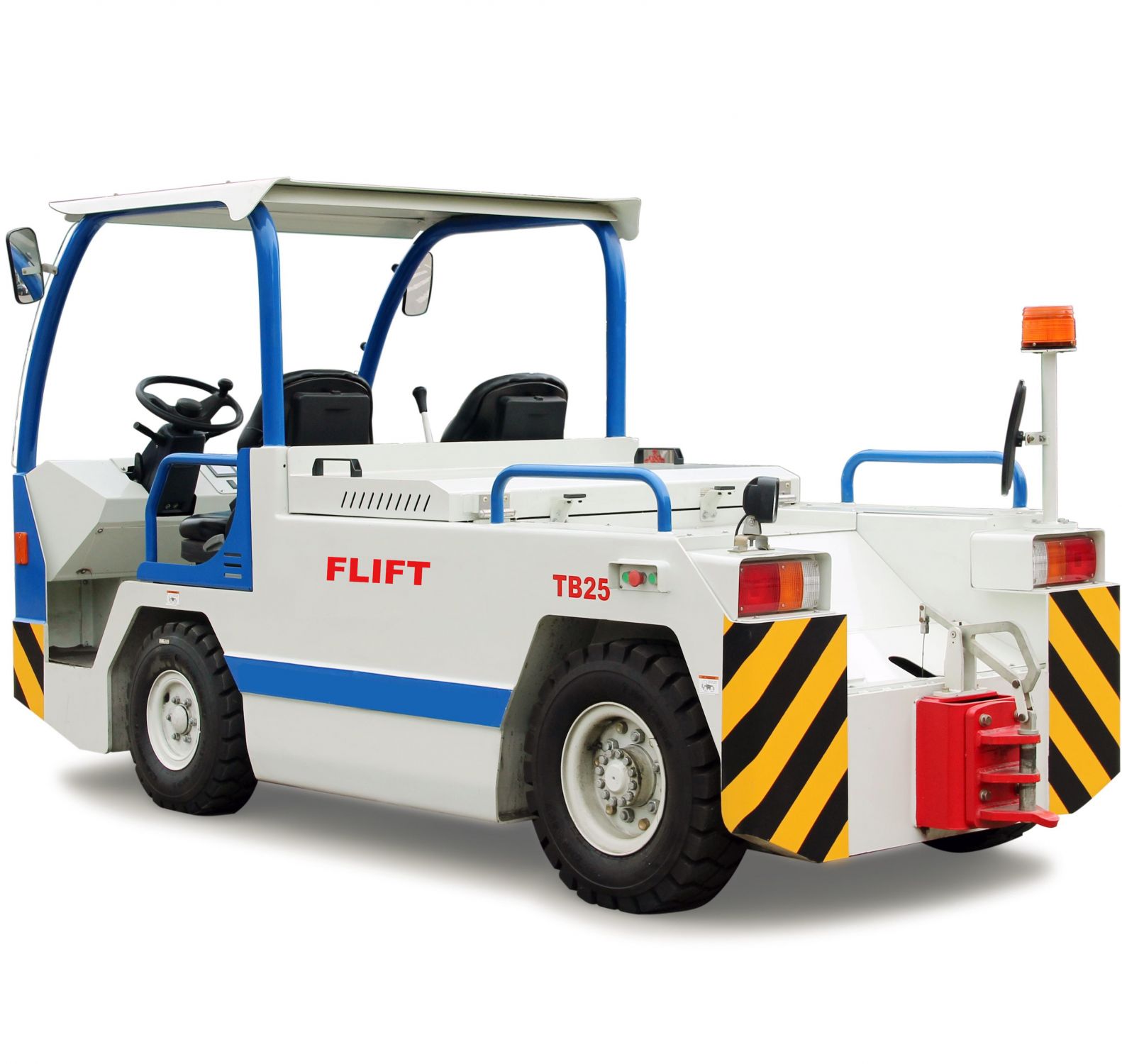

 Low Price FLIFT Airport Equipment 2.5 Ton Electric Baggage Tractor



Product Features

►Plate spring and Hydraulic damping cylinder shock absorber on the axles provides comfortable driving experience.
►Safe and long-life Phosphate iron lithium battery equipped with Automatic fire extinguishing system.
►Battery charge with low temperature,same charing efficiency in -20°~0°.
►Normal working in high-tem with water-cooling system for motor and controller.
►Left side driving position, good vision, less vision blind area.
►Easy and efficient traction device can be operated inside the cab.


Product Parameter
Model TB25
Power Type Battery
Rated Capacity 25000 kg
Service Weight 4500 kg
Overall Length 3320/3380 mm
Overall Width 1450 mm
Height 2000 mm
Wheelbase 1620 mm
Front Overhang 1025 mm
Wheel Tread(F/R) 1230/1210 mm
Front Tire 6.50-10-10PR
Rear Tire 7.00-12-12PR
Towing Coupler Height(On/Under) 440/350 mm
Ground Clearance 145 mm
Turning Radius 3040 mm
Travel Speed(Loaded/Unloaded) 10/25 km/h
Front Axle Load 1700 Kg
Rear Axle Load 2800 kg
Max Drawbar Pull 25 kN
Rated Traction 13 kN
Max. Gradeability 35%
Rated Power 23/30 kW
Rated Torque 106.5/191 N·m
Rated Speed 1500/2063 r.p.m
Battery Type Lithium iron phosphate battery
Voltage/Capacity 76.8/800      307.2/210



Product Details

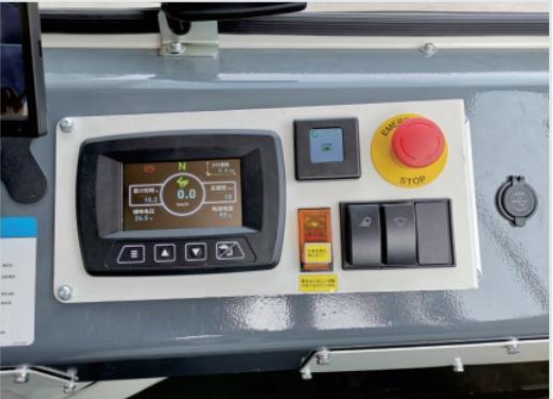

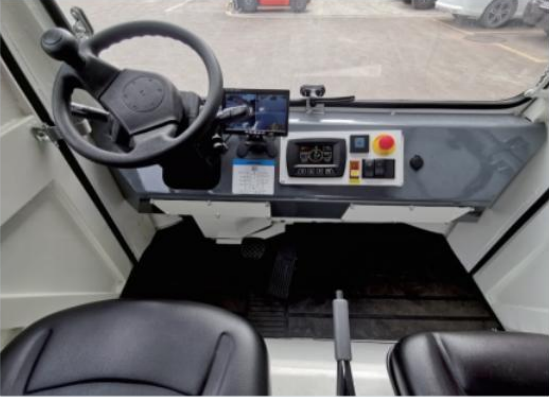

Ergonomics operation interface,simple display, easy, safe and convenient operation.


CAN,LED Meter, Integrated display,EMC and Water-dust prevention.

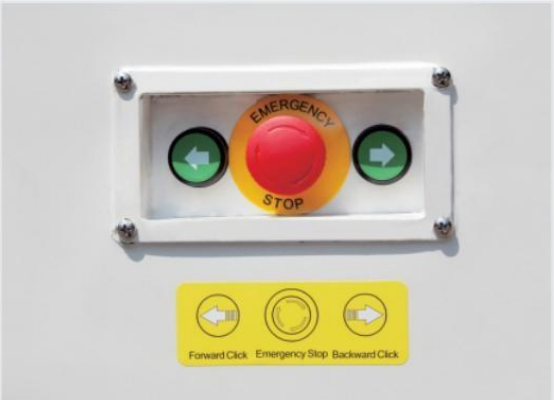

Micro-switch for micro adjustment with high efficiency.

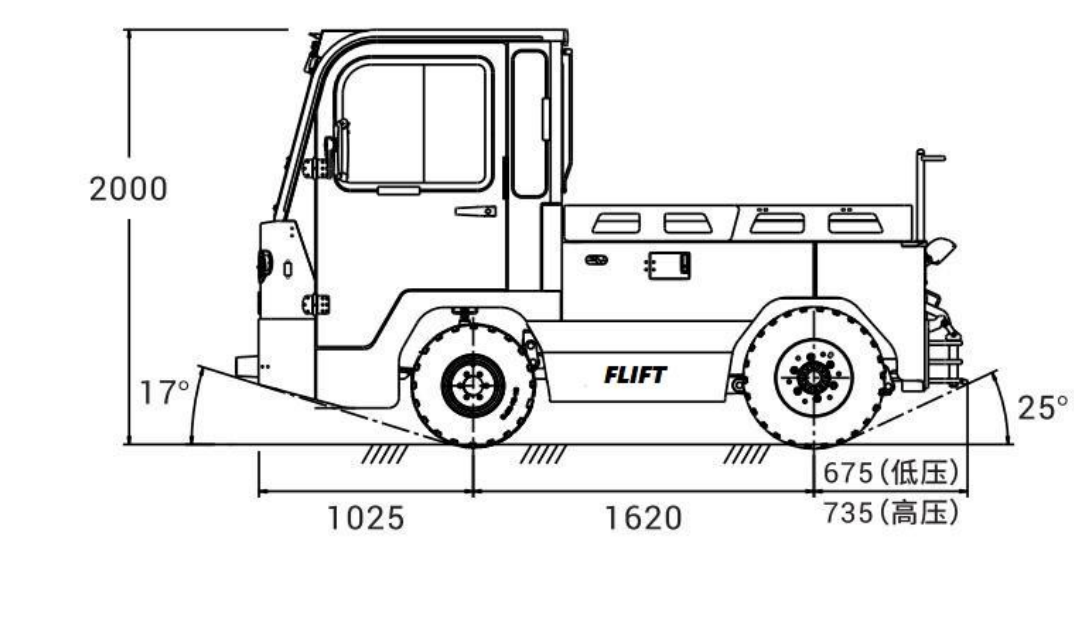

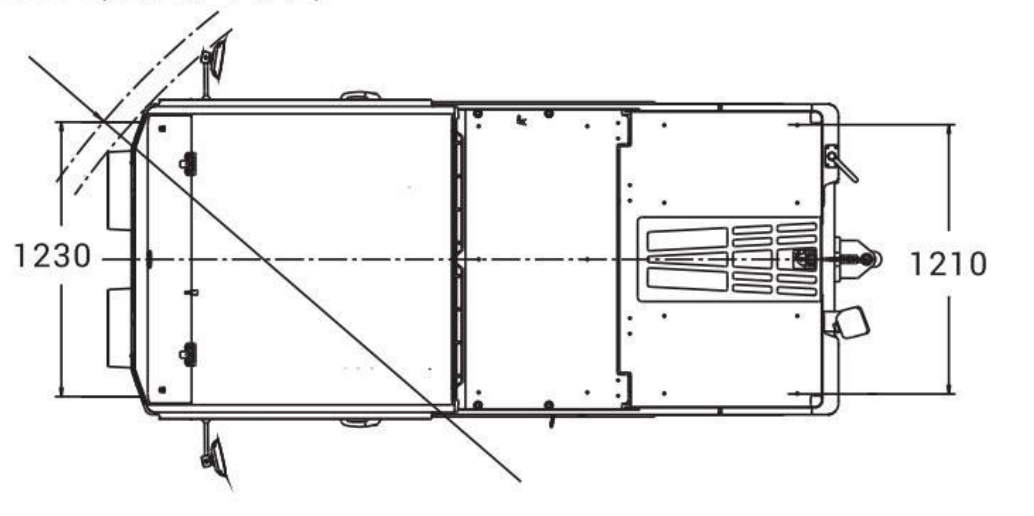

Vehicle Dimensions
