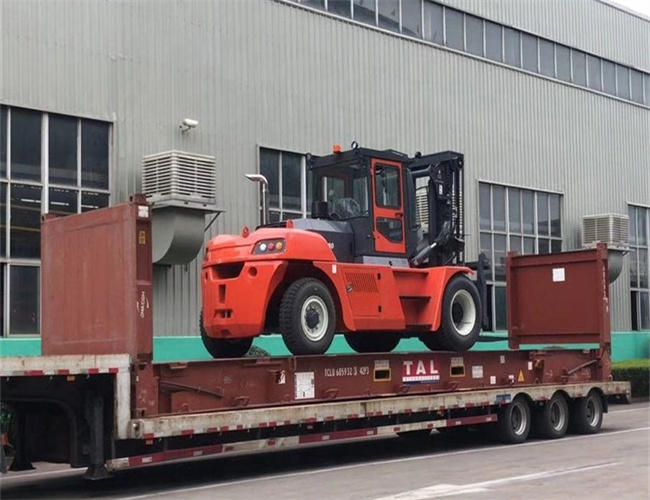

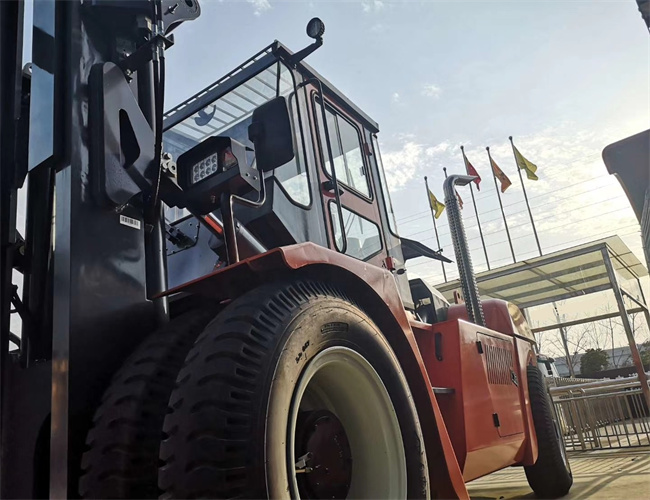

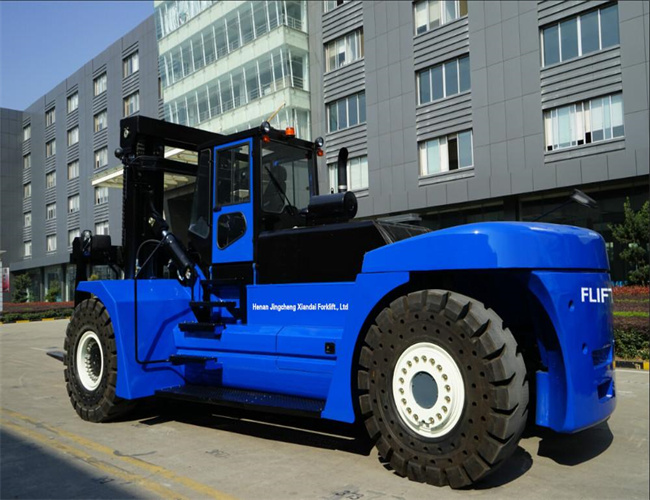

Factory Supply Big Tonnage Rated Capacity 48ton Diesel Forklift FD480 with Load Center 1200mm
Date: 2022-07-04 View:
Multi-functional Lifting Height 4000mm Diesel Forklift 48000kg with Mast Lowered 4550mm
Cooling System
The cooling system has an excellent heat-radiation performance to ensure the high-intensity operation in some hot districts.
Optimization design on the cooling channel with another air outlet on the lower counter-weight, and air fluid science design on the upper counter-weight. The hood rear tuyere is designed as shutter type wind guide scrambling structure to mostly improve the fan efficiency.
The cooling assembly is compromised of 3 individual cooling module with stacking type layout but not anteroposterior stack. It has a better air permeability with low dust to ensure the long term normal working of the cooling system.
Convenient Maintenance
The CAN vehicle diagnostic system, engine ECU and transmission TCU controlling system can get rid of some simple problems. The error code will be shown on the screen to fast and easily recognize the error information for fast maintenance and repair to shorten the maintenance period.
Reasonable structure, the wide-angle tip-over cab and gull wing type hood ensures the more convenient and faster maintenance job on the power system.
Openable electric cabinet design is apparent to the eyes with a integrated electrical parts layout which improves the convenience of the electrical parts maintenance.
Product Parameters
| Model | FB480 | |
| Power Type | Diesel | |
| Rated Capacity | kg | 48000 |
| Load Centre | mm | 1200 |
| Lift Height | mm | 4000 |
| Fork Size | mm | 2440x300x135 |
| Mast Tilt Angle | Deg | 5°/10° |
| Front Overhang (Wheel Center to fork face) | mm | 1240 |
| Ground Clearance (Bottom of mast) | mm | 305 |
| Length to face of fork(Without fork) | mm | 7800 |
| Overall Width | mm | 4220 |
| Mast Lowered Height | mm | 4550 |
| Mast Extended Height(With backrest) | mm | 6485 |
| Overall Guard Height | mm | 3660 |
| Turning Radius(outside) | mm | 7500 |
Certification
