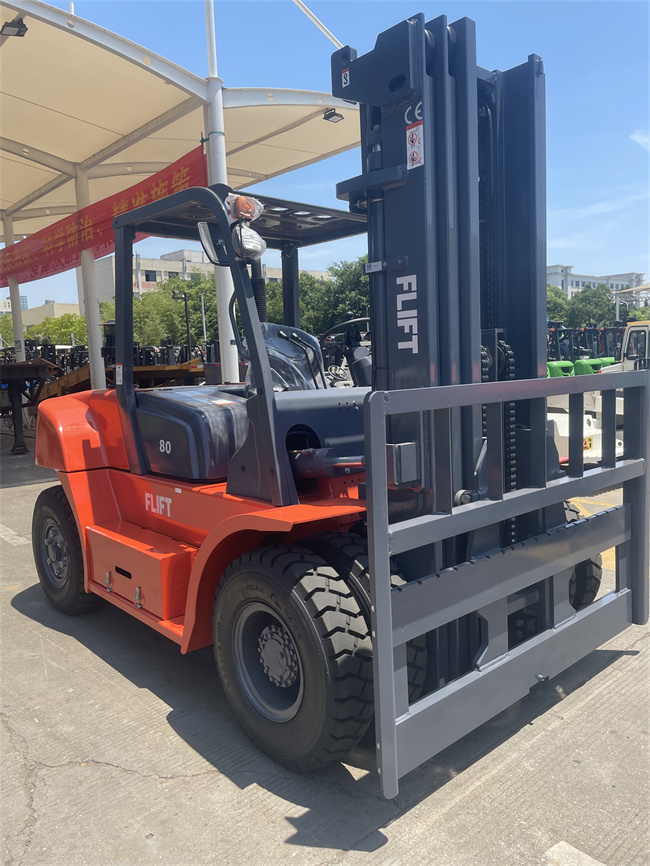

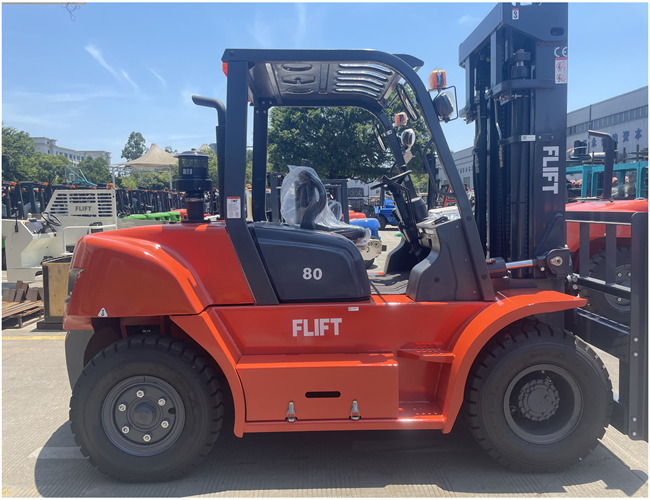

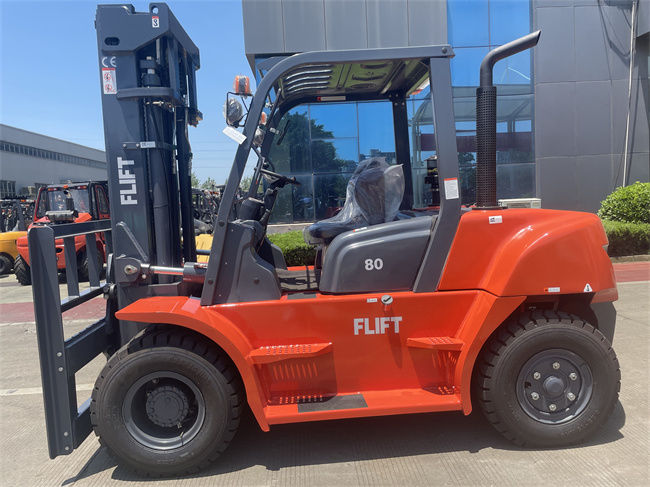

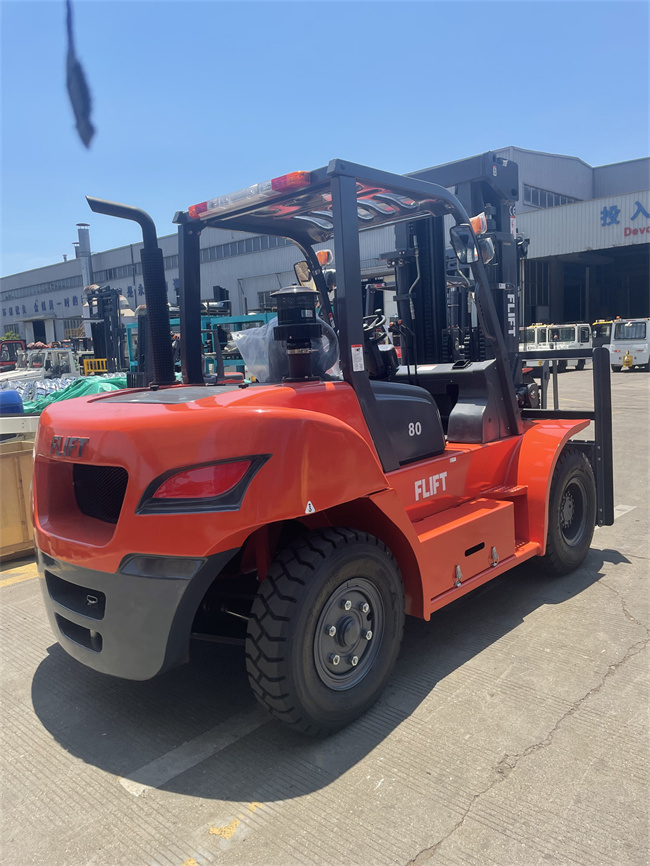

Big tonnage Diesel Forklift FD80 Rated Capacity 8ton with Lifting Height 3000 mm

Date: 2022-07-28 View:

Factory Supply 8ton Diesel Forklift Load Center 600mm with Fork Length 1220 mm

Security
Intelligent starting system, forklift hanging gear start prevent function,it improves the operation safety and longer gearbox service life.
Hydraulic power brake system, large capacity accumulator, reliable driving and emergency braking.
Overhead guard with high-strength steel plate one stamping, provide driver more sophisticated security.
Standard equipped button parking brake, effectively prevent the handbrake from accidentally release.

Comfort
Ergonomic design, rational operating device layout, equipped with adjustable seats (adjustment up to 150mm) and steering wheel.
The 10t and 12t model with fork positioner, easy to adjust the fork
distance; The 5-8tforlift have fork positioner for option.
A forklift models standard with hydraulic seeing system, easy and comfort to operate.


Advancement
World famous imported diesel and gasoline engine, Japan Okamura
gear box and wet drive axle for options.
Intelligent LCD instrument, CAN,Controller Area Network, real-time display of engine and forklift's working information.

Convenient Maintenance
Reasonable Body parts, large space, hood open angle of up to 70°,easy maintenance.

Product Parameters
Model
FD80
Power Type
Diesel
Rated Capacity kg 8000
Load Centre mm 600
Lift Height mm 3000
Fork Size mm 1220*150*70
Mast Tilt Angle
6°/12°
Front Overhang (Wheel Center to fork face) mm 595
Ground Clearance (Bottom of mast) mm 200
Length to face of fork(Without fork) mm 3560
Overall Width mm 2010
Mast Lowered Height mm 2500
Mast Extended Height(With backrest) mm 4415
Overall Guard Height mm 2470
Turning Radius(outside) mm 3350
