Manufacturers directly supply 2 tons battery electric hydraulic forklift

Date: 2022-04-11 View:

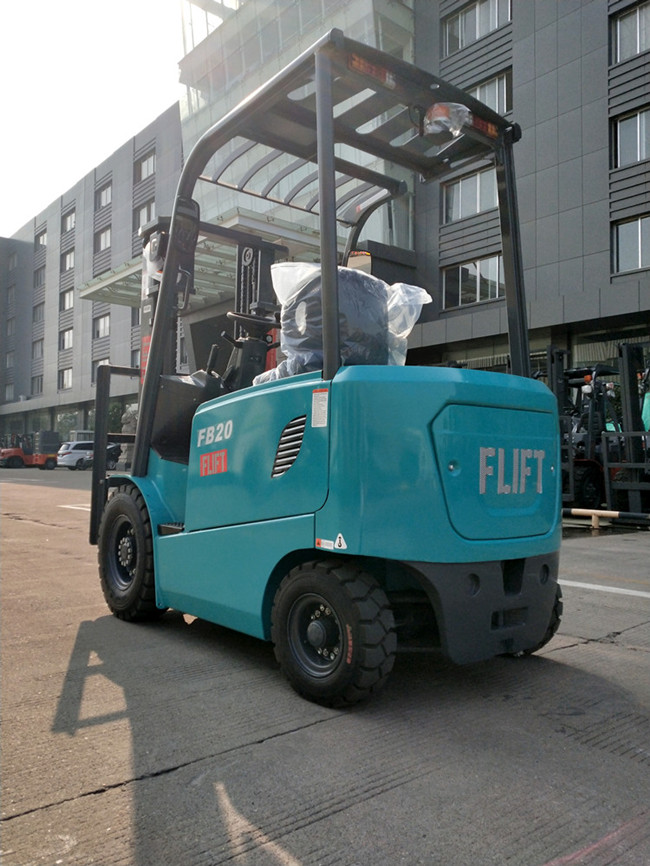

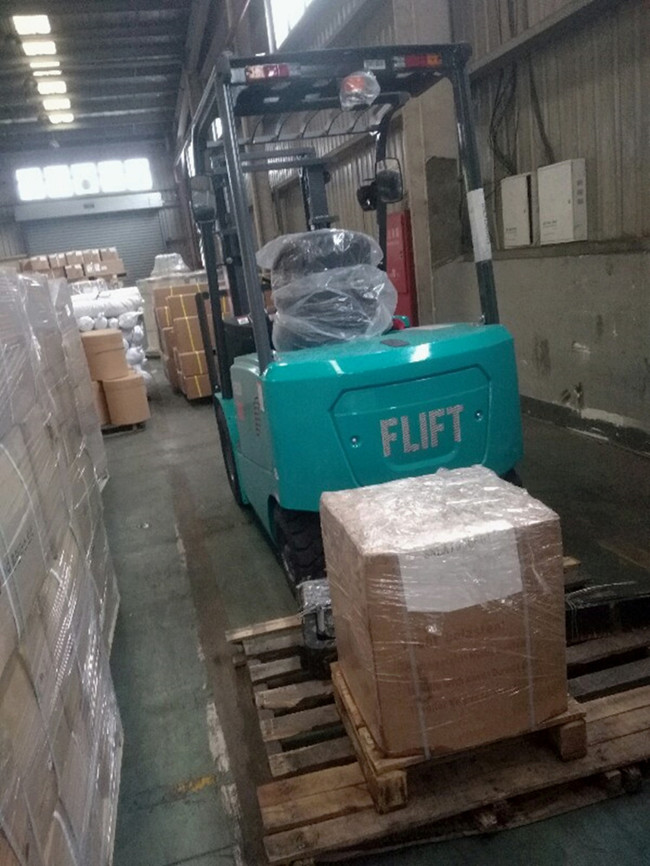

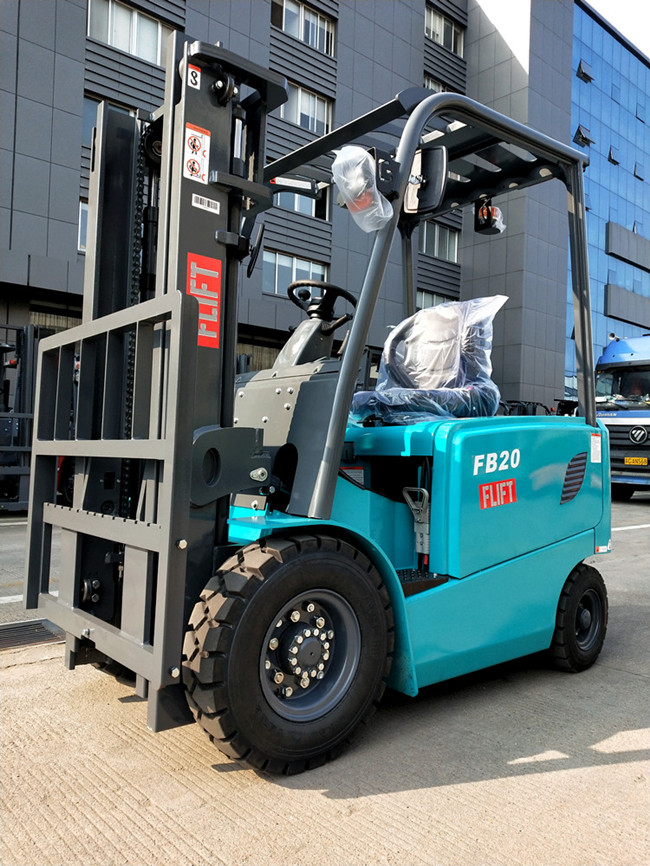

  FLIFT 2 ton electric forklift with battery 48V/560Ah and battery charger


FLIFT 2 ton electric forklift with: Chinese  Electrical Controller, Chinese Battery 48V/560Ah, Pneumatic tires, Fork Length 920mm, Wide-view 2-stage 3meter mast, Toyota Seat, with a battery charger.


We are a professional and leading forklift manufacturer in China and we specialize on provIding various kind of Material Handling Equipment,Warehouse Equipment,Ground Support Equipment and Spare Parts etc.


Our products have been exported to over 130 different countries. We have the CE certificate for European market and EPA certificate for North American market.Covering an area of 100,000 square meters, FLIFT have the advanced parts processing center, robot welding equipment, parts automatic hoist conveyor line, coating line, assembly line, forklifts performance test line, parts pre-test-bed and advanced ERP information management system,which all guarantee our products' high quality and best performance!


Features: Regenerative braking: when the forklift is decelerating, downhill, reversing and other working conditions, the traveling motor is transformed into a generator, and the battery is recharged by the controller, which is highly efficient and energy-saving.


Fully open hood, it can quickly remove from both side. Hinge design frame side door. The using of advanced design concept of battery replacement program, gives fast and convenient maintenance.

FLIFT 2.0 ton electric forklift specification
Model
FB20
Rated Capacity kg 2000
Load Centre mm 500
Lift Height mm 3000
Fork Size (L*W*T) mm 1070*120*40
Mast Tilt Angle (F/R) Deg 6°/12°
Front Overhang (Wheel Center to fork face) mm 465
Tread (F/R) mm 960/950
Ground Clearance (Bottom of mast) mm 110
Fork Spread (Min./Max.)
240/1020
Length to face of fork(Without fork) mm 2360
Overall Width mm 1160
Mast Lowered Height mm 2070
Mast Extended Height(With backrest) mm 4020
Overall Guard Height mm 2240
Turning Radius(outside) mm 2075
Min. insecting aisle mm 2250
Travel(Empty load) km/h 15
Lifting(Full load) mm/s 300
Max. Gradeability % 15
Wheel Base mm 1510
Service Weight kg 4170

FLIFT forklift CE approved:
