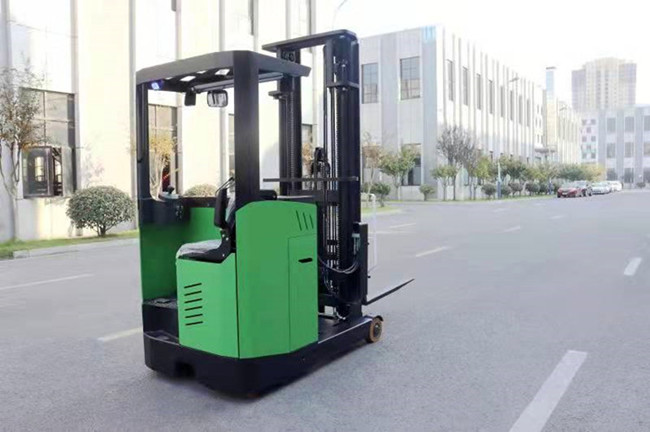

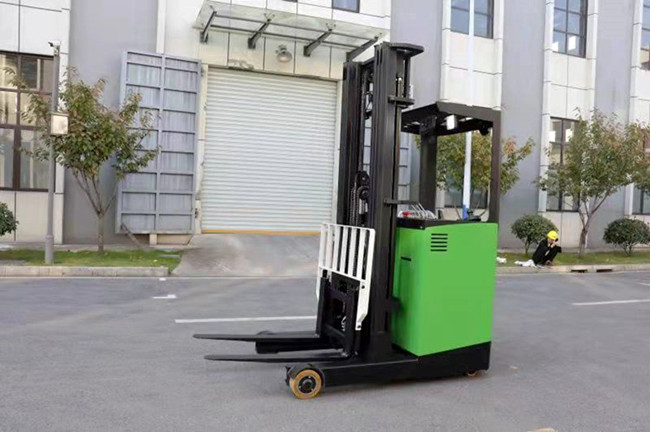

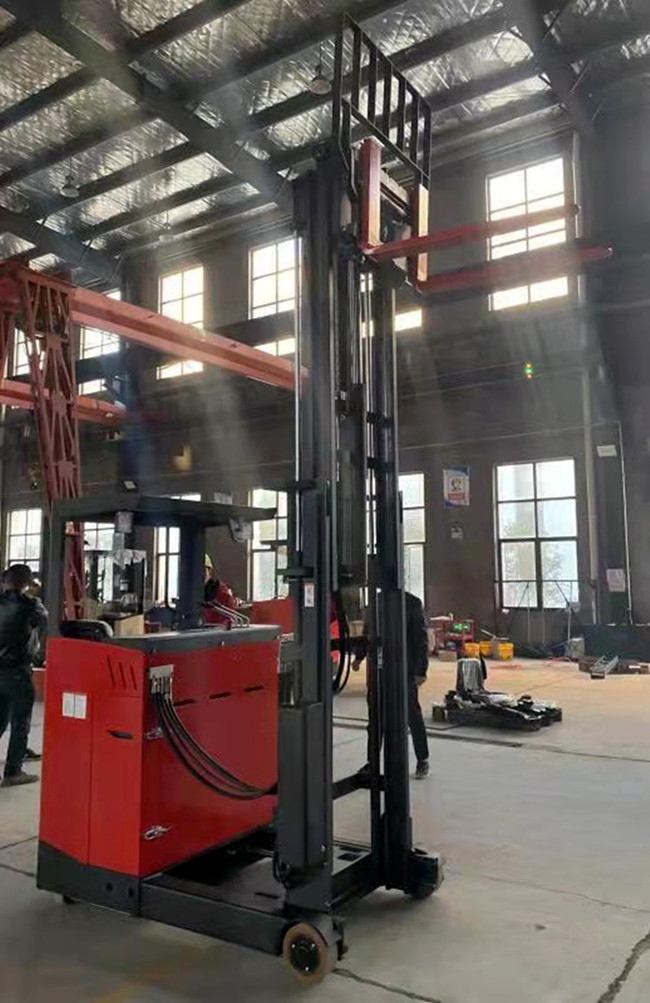

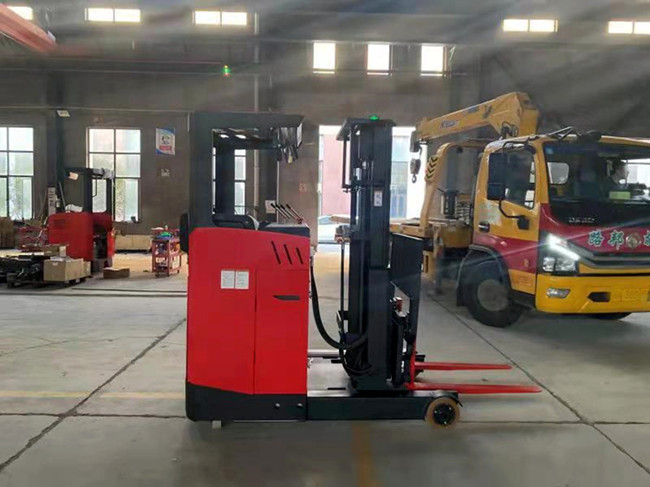

Factory price 2.5 ton electric reach forklift with lifting height 7.5 meters
Date: 2022-03-01 View:
FLIFT 2.5 ton sit-on electric reach truck cheap price
FLIFT electric reach forklift equipped with wide-angle field of view and high-strength shock-absorbing gantry.
2.5 ton electric reach forklift equipped with American CURTIS brand drive control system.
It has the advantages of electronic steering, light weight and quietness.
Streamlined appearance design, simple and clear color, no pollution, low noise, low vibration, present environment-friendly and humanization ideology.
FLIFT forklift CE approved:
It has the advantages of electronic steering, light weight and quietness.
Streamlined appearance design, simple and clear color, no pollution, low noise, low vibration, present environment-friendly and humanization ideology.
Safety:
1. Equipped with automatic deceleration device for corners;
2. Drive stepless speed regulation;
3. The controller has multiple automatic protection systems;
4. Induction safety seat;
5. Cylinder safety shut-off valve.
| Model | CQD25 | |
| Rated load | kg | 2500 |
| Maximum lifting height | mm | 8485 |
| Load Center | mm | 600 |
| Tire configuration | Solid PU | |
| Operation mode | Seated | |
| Fork tilt angle | Deg | 3/5 |
| Fork size (L*W*T) | mm | 1070*122*40 |
| Fork width | mm | 260-820 |
| Lift height | mm | 7500 |
| Free lift height | mm | 2585 |
| Overall length | mm | 2500 |
| Overall width | mm | 1270 |
| Mast Lowered Height | mm | 3250 |
| Reach distance | mm | 650 |
| Turning radius | mm | 1945 |
| Overall Guard Height | mm | 2190 |
| Minimum stacking channel | 1000*1000mm pallet | 2975 |
| Fork leg clearance | mm | 110 |
| Ground clearance | mm | 80 |
| Travel speed | km/h | 7.5/8 |
| Lifting speed | mm/s | 150/260 |
| Max. Gradeability | % | 6/8 |
| Service weight | kg | 3650 |
| Battery weight | kg | 700 |
| Drive wheel | mm | 343*135 |
| Front wheel | mm | 267*114 |
| Battery voltage/capacity | V/Ah | 48/420 |
| Lifting motor | kw | 8.6 |
| Drive motor | kw | 6.5 |
| Braking | Electromagnetic | |
| Steering method | Electric |
