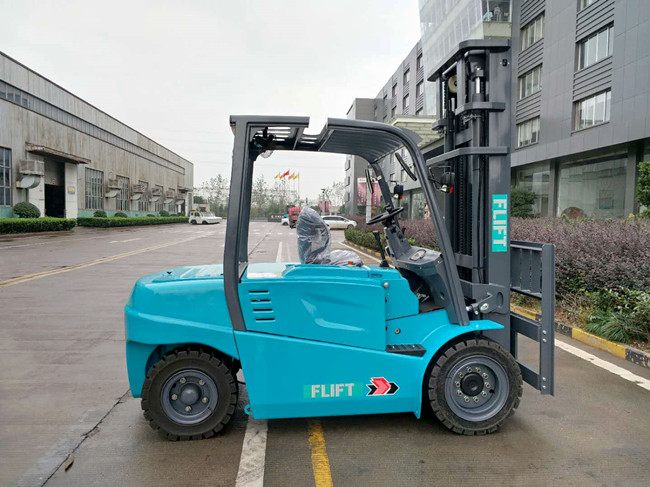

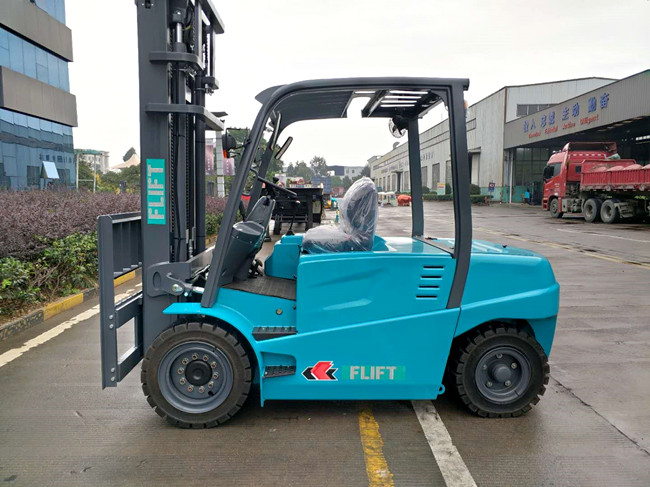

FLIFT 6 ton electric forklift with American Curtis controller and Battery charger
Date: 2022-02-17 View:
FLIFT hot sale 6.0 ton electric forklift American Curtis controller
FLIFT 6.0 ton electric forklift with advanced dual motor driving system, compact structure, better driving and climbing performance, lager torque, more powerful output.
Original imported world famous brand controller. After professional adjustment, walking and upgrade control precision and efficiency, it has excellent performance, regenerative braking, ramp braking, fault self-diagnosis and other functions.
Ergonomic full-scale operation space layout which give the operator a good, comfortable and convenient operating experience.

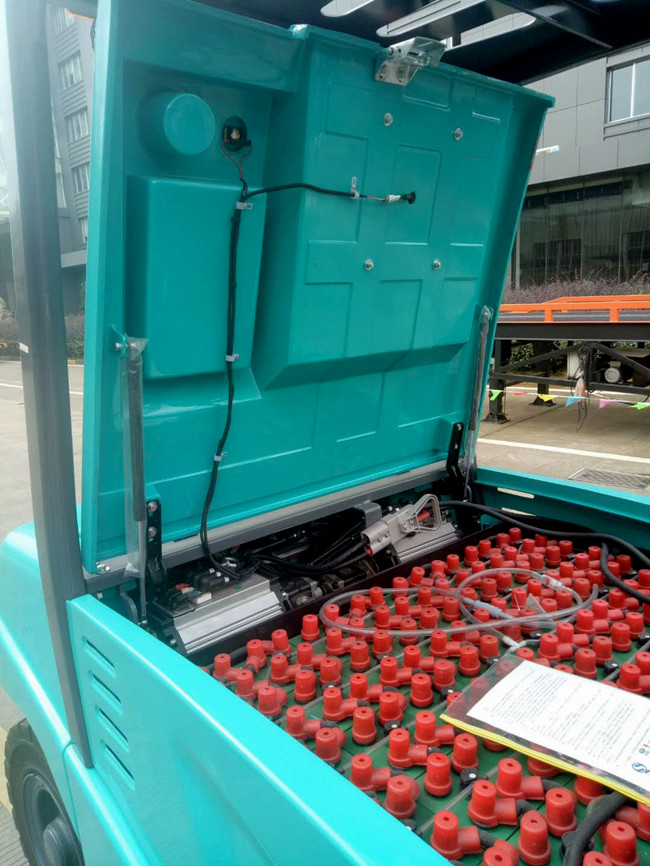

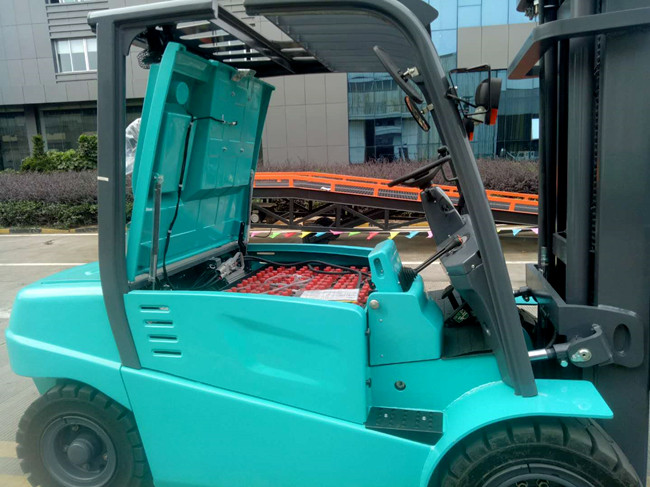

Energy-saving battery to meet the needs of general working hours.

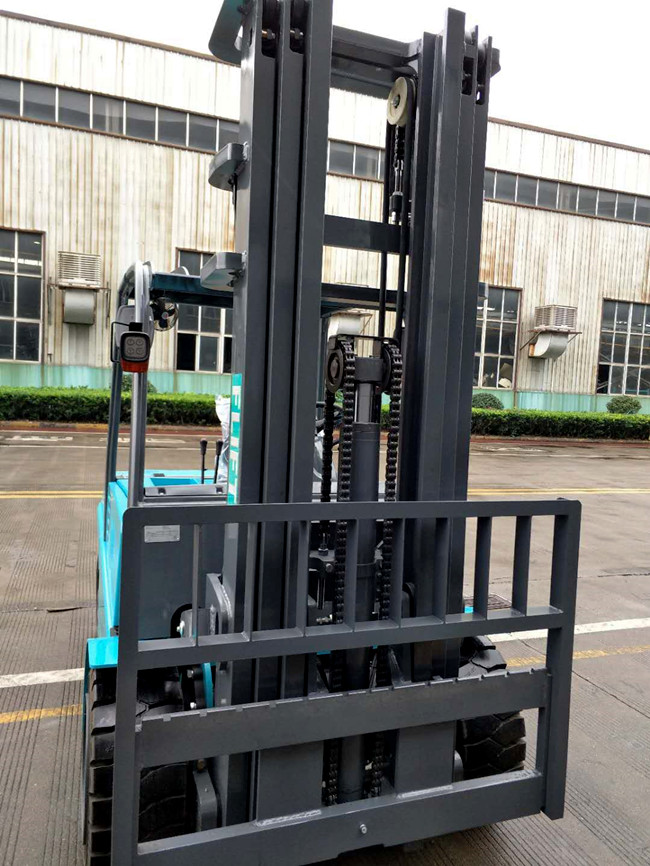

Wide-view 3-stages 6 metters full free mast, avoid the highness limited, improve work efficiency.
FLIFT 6.0 ton electric forklift with advanced dual motor driving system, compact structure, better driving and climbing performance, lager torque, more powerful output.
Original imported world famous brand controller. After professional adjustment, walking and upgrade control precision and efficiency, it has excellent performance, regenerative braking, ramp braking, fault self-diagnosis and other functions.
Ergonomic full-scale operation space layout which give the operator a good, comfortable and convenient operating experience.
Energy-saving battery to meet the needs of general working hours.
Wide-view 3-stages 6 metters full free mast, avoid the highness limited, improve work efficiency.
| Model | FB60 | |
| Rated Capacity | kg | 6000 |
| Load Centre | mm | 500 |
| Lift Height | mm | 3000 |
| Fork Size (L*W*T) | mm | 1070*150*50 |
| Mast Tilt Angle (F/R) | Deg | 6°/9° |
| Front Overhang (Wheel Center to fork face) | mm | 555 |
| Tread (F/R) | mm | 1280/1190 |
| Ground Clearance (Bottom of mast) | mm | 160 |
| Fork Spread (Min./Max.) | 300/1380 | |
| Length to face of fork(Without fork) | mm | 3030 |
| Overall Width | mm | 1600 |
| Mast Lowered Height | mm | 2330 |
| Mast Extended Height(With backrest) | mm | 4255 |
| Overall Guard Height | mm | 2255 |
| Turning Radius(outside) | mm | 2755 |
| Min. insecting aisle | mm | 2955 |
| Travel speed (Empty load) | km/h | 14 |
| Lifting speed (Full load) | mm/s | 220 |
| Max. Gradeability | % | 15 |
| Tire Front | 2.8*12.5-15-24PR | |
| Tire Rear | 7.00-12-14PR | |
| Wheel Base | mm | 2000 |
| Service Weight | kg | 8200 |
| Drive Motor | kw | 9.1*2 |
| Lift Motor | kw | 25.4 |
| Battery Voltage/Capacity | V/Ah | 80/800 |
| Controller Manufacturer | CURTIS | |
| Controller Type | AC | |
| Operating Pressure for Attachment | 17.5 |
FLIFT forklift CE cetificate:
