3 Ton Electric Side Loader Forklift

Date: 2023-06-07 View:

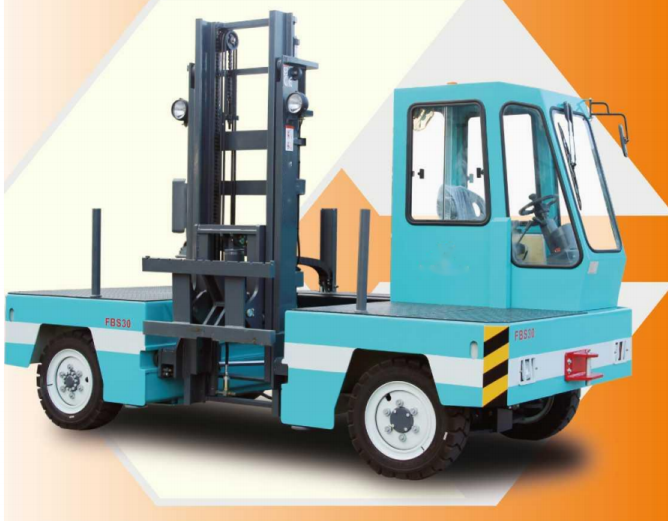

 FLIFT 3 Ton Side Loader Forklift

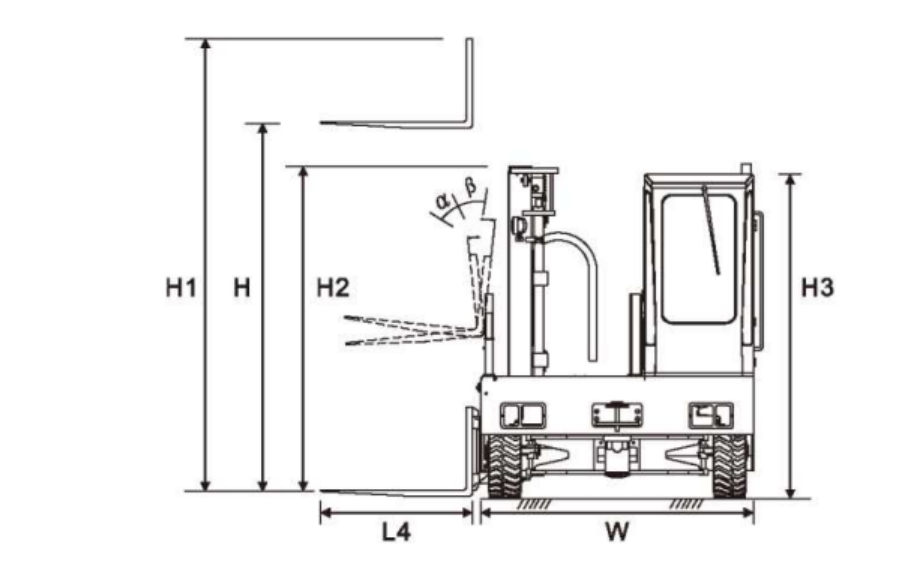

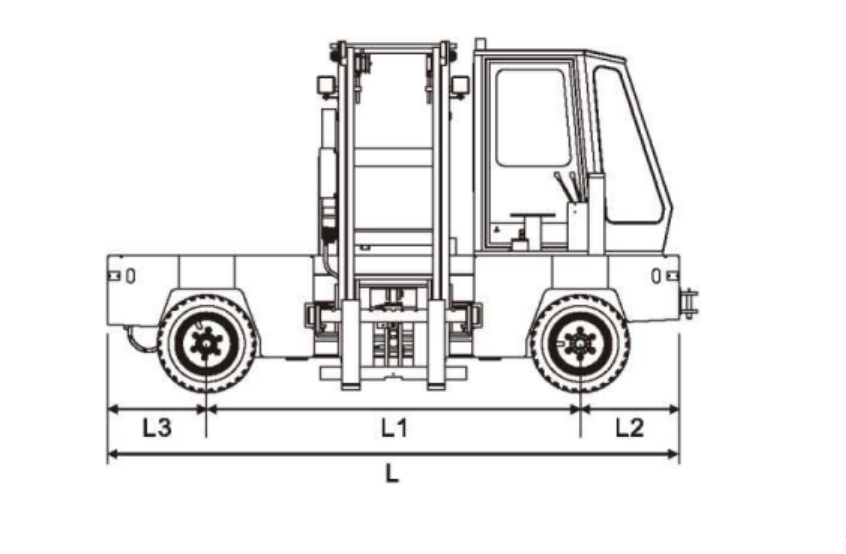

Product Parameter

 Model  FBS30
 Power Type  Battery
 Rated Capacity  3000 kg
 Load Centre  500 mm
 Service Weight  6850 kg
Lift Height   3600 mm
Free Lift Height  85 mm
Mast Extended Height  4465 mm
Mast Lowered Height  2525 mm
Fork Size   1070*125*45 mm
Mast Tilt Angle  6°/4°
Front Overhang   730 mm
Rear Overhang   715 mm
 Wheel Base  2700 mm
 Turning Radius  4340 mm
 Ground Clearance( Bottom of mast)  185 mm
 Overall Length  4130 mm
 Overall Width  2000 mm
 Platform Width  1200 mm
 Platform Height  950 mm
 Overhead Guard Height  2420 mm
 Lifting(Unloaded/Loaded)  400/300 mm/s
 Travel(Unload/Loaded)  15/14 km/h
 Lowing(Unloaded/Loaded)  310/410 mm/s
 Wheel Tread  1650/1650 mm
 Front  28*9-15PR
 Rear  28*9-15PR
 Braking Distance(Unload)  900 mm
 Battery(Voltage/ Capacity)  80V/540Ah




Product Transportation
