FLIFT Brand TD30-68 Telehandler For Sale

Date: 2023-06-06 View:

 TD30-68 Telehandler With Factory Price On Sale










Product Parameter

 Model  TD30-68
 Overall Height  2300 mm
 Overall Width  2150 mm
 Inside width of cab  800mm
 Front track  1750mm
 Wheelbase  2850mm
 Overall length to front tyres  4200mm
 Overall length to front carriage  4650mm
 Ground clearance  350mm
 Outside turn radius  4250mm
 Carriage roll back angle  42.6
 Carriage dump angle  37.5
 Weight unladen  7250kg
 Tyres  16/70-20
 Fuel tank  95L
 Hydraulic oil tank  70L
 Drive speed  23/Km
 Maximum lift capacity  3000kg
 Lift capacity to full height  2300kg
 Lift capacity at full reach  1100kg
 Lift height  6800mm
 Reach at maximum lift height  450mm
 Maximum forward reach  3600mm
 Reach with one ton load  3600mm
 Engine standard  Stage cn II
 Manufacturer  YUNNEI
 Displacement  3.76
 No.of cylinders  4
 Hydraulic cycle times(unload)  seconds
 Main hydraulic gear pump  110 Ltrs/min

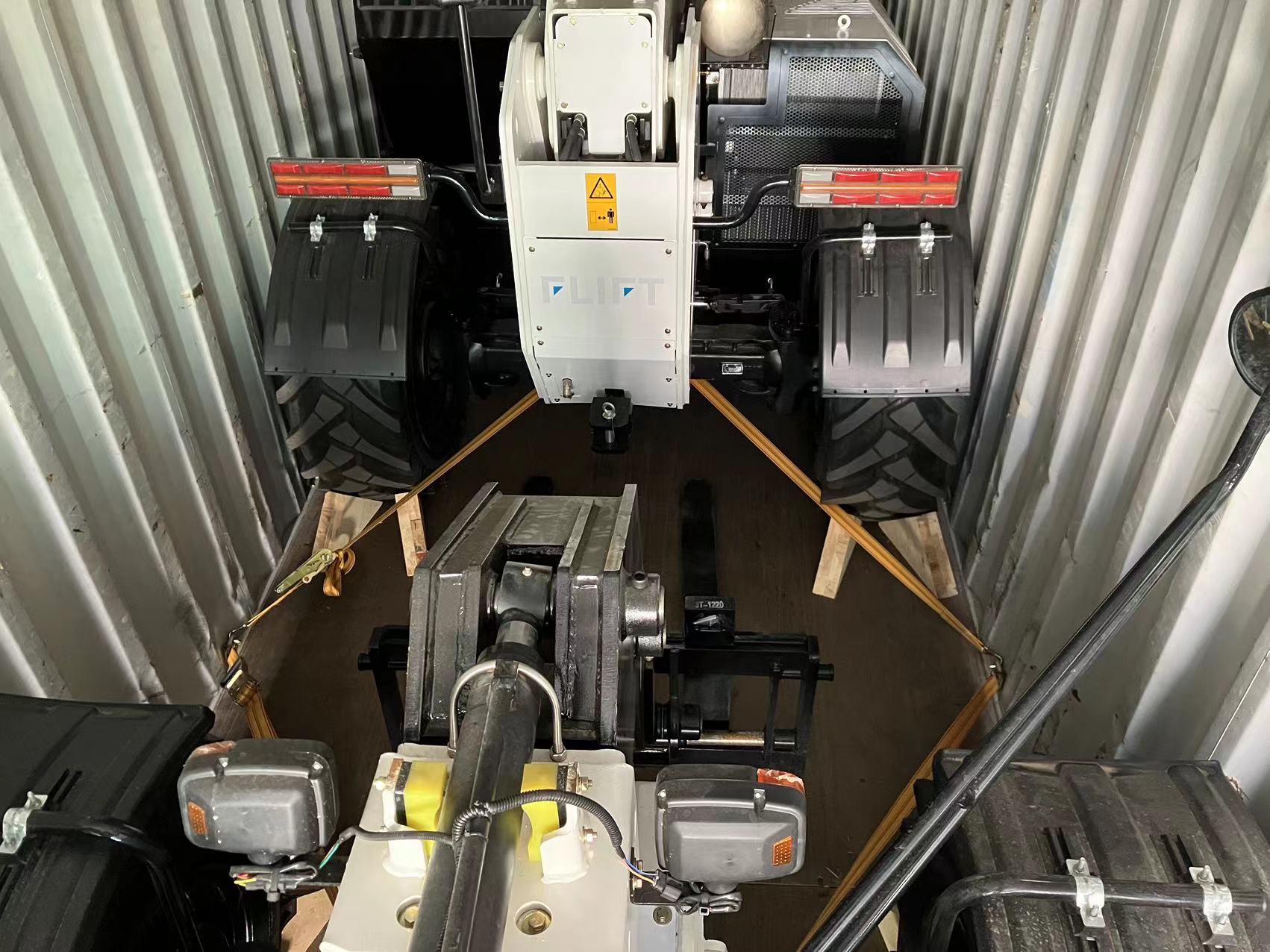

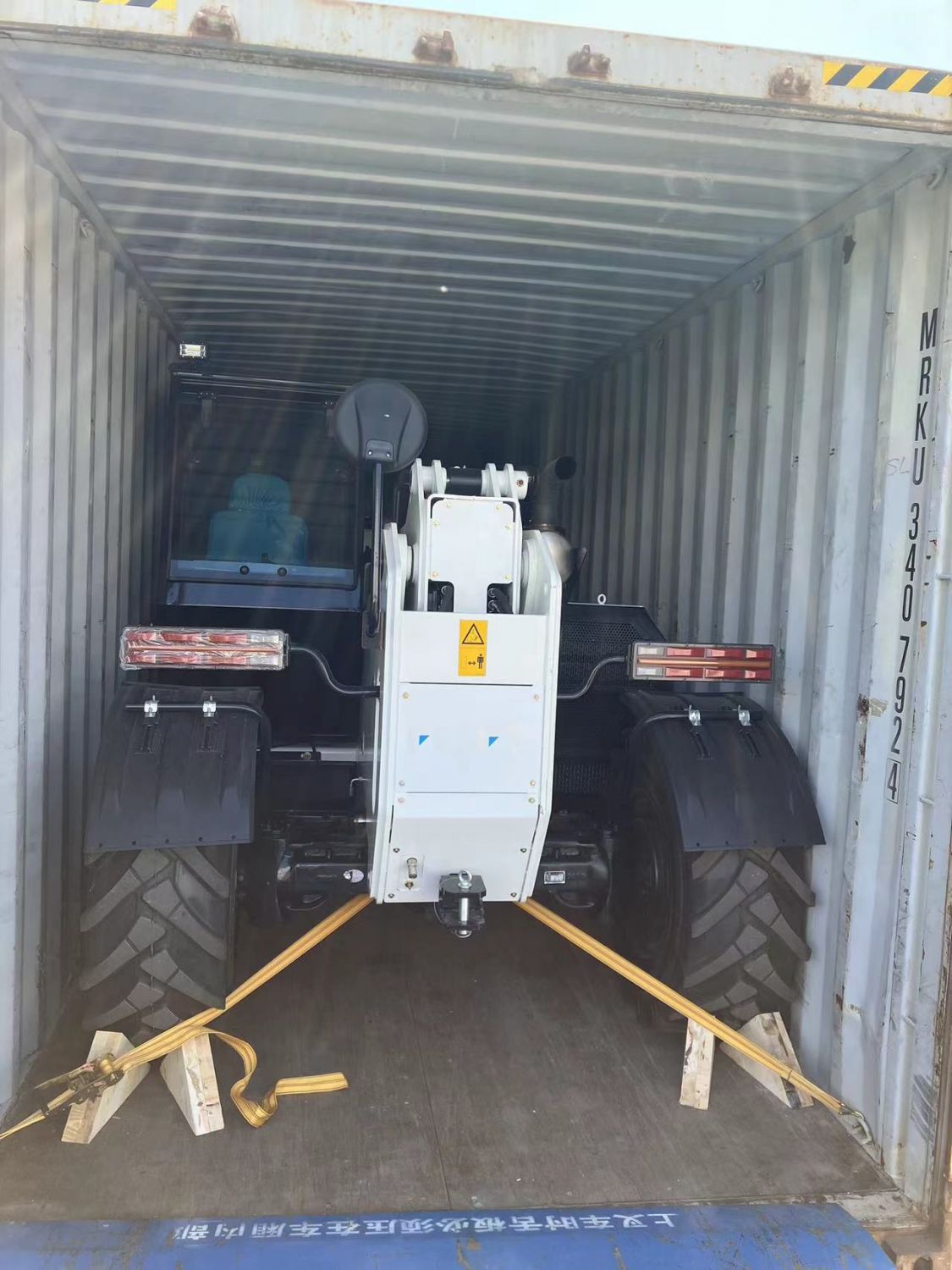

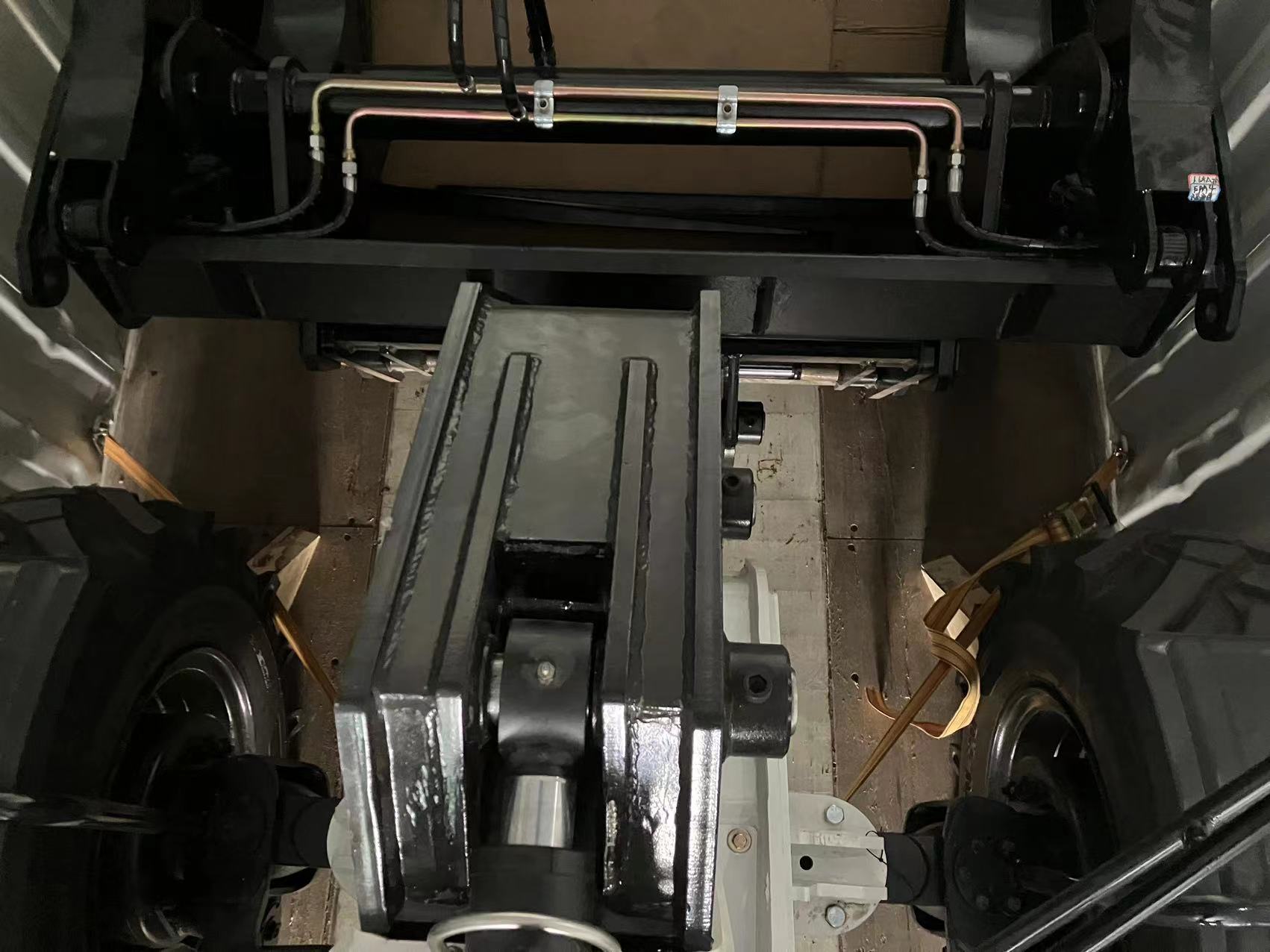

Product Transportation
