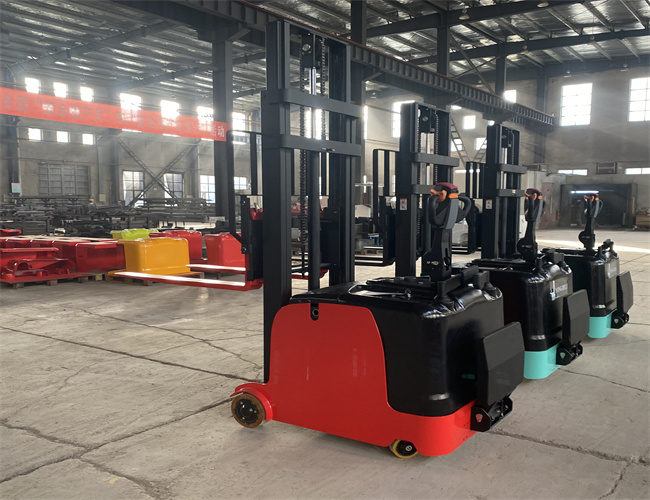

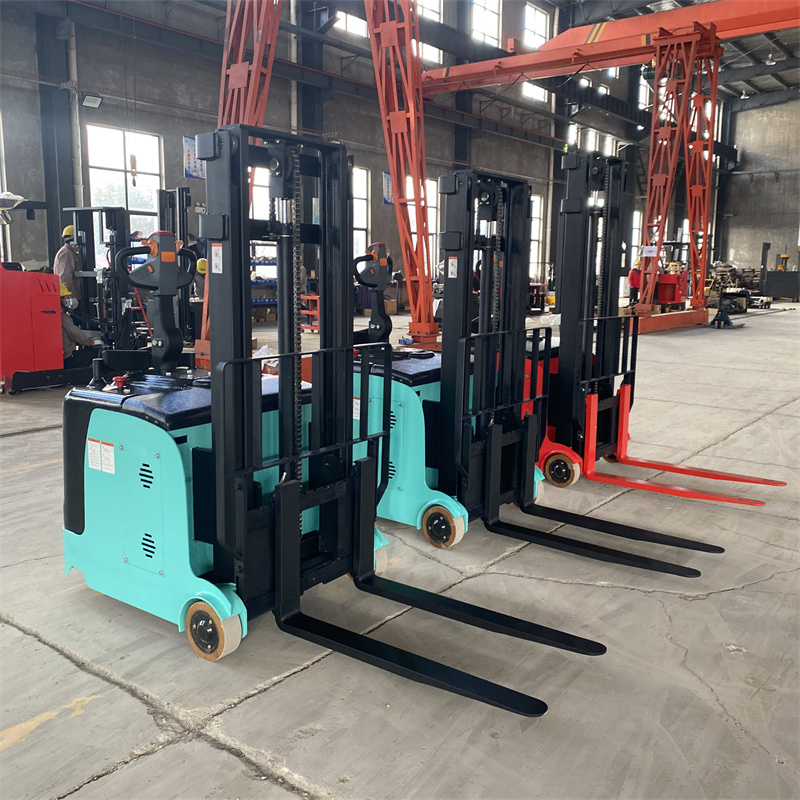

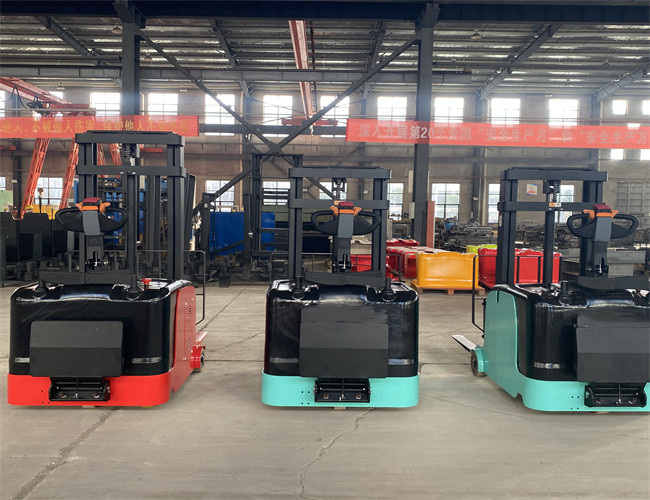

CDD08B-25 Counterweight Electric Pallet Stacker
Max. Lifting Height 2500mm
Turning Radius 1160mm
Self weight2050kg
Overall Width900 mm
Overall Length 2350mm
We're here to help:Easy ways to get the answers you need.
- 2 Ton Electric Pallet Stacker
- Easy Operation High Safety Counterweight Electric Pallet Stacker with Losd Center 550mm.
.png)
technology parameters
| FLIFT CDD05B/08B Fully Electric Pallet Stacker (Counter weight) | ||
| Model | CDD08B-25 | |
| Rated Capacity | kg | 800 |
| Max. Lifting Height | mm | 2500 |
| Load at maximum lift | kg | 800 |
| Load Center | mm | 550 |
| Tyre type | PU | |
| Fork Size | mm | 1070*100*35 |
| Mast Type | 2 Stages | |
| Adjustment range of fork | mm | 240-680 |
| Overall Length | mm | ≤2350 |
| Overall width Front/ Rear | mm | 990/900 |
| Mast Height | mm | 1850 |
| Mast Extended Height | mm | |
| Turning Radius | mm | 1160 |
| Min. Aisle | mm | 2790(1200*1000Pallet, Safe Distance 200) |
| Max. Driving Speed | Km/h | 4.0/5.0 |
| Gradeability | % | 3%/5% |
| Battery | V/Ah | 24/210 |
| Battery Charger | V/A | 24/30 |
| Overall Weight | kg | ~2050 |
| Driving Wheel | mm | 230*75 |
| Front Wheel | mm | 210*85 |
| Balance Wheel | kw | 130*55 |
| Lifting Motor | kw | 2.2 |
| Driving Motor | 1.6 | |
| Steering Type | Electric Steering | |
FEATURES
1.Innovative Design;
2.Simplified Serviceability;
3.Enhanced Productivity;
4. Short wheelbase, CURTIS brand drive control system, multi-functional integrated handle, electronic steering, lightweight.
5.Integrated low noise hydraulic pump, AC drive, no carbon brush, motor maintenance free.
6.Electromagnetic and regenerative braking system. Lift limit, long life induction switch, body shock absorption system, handle shock absorption.
7.Powerful Engine -- imported brand engine ensures high performance, safty and efficiency;
8.Super low & Non-slip step.
.jpg)

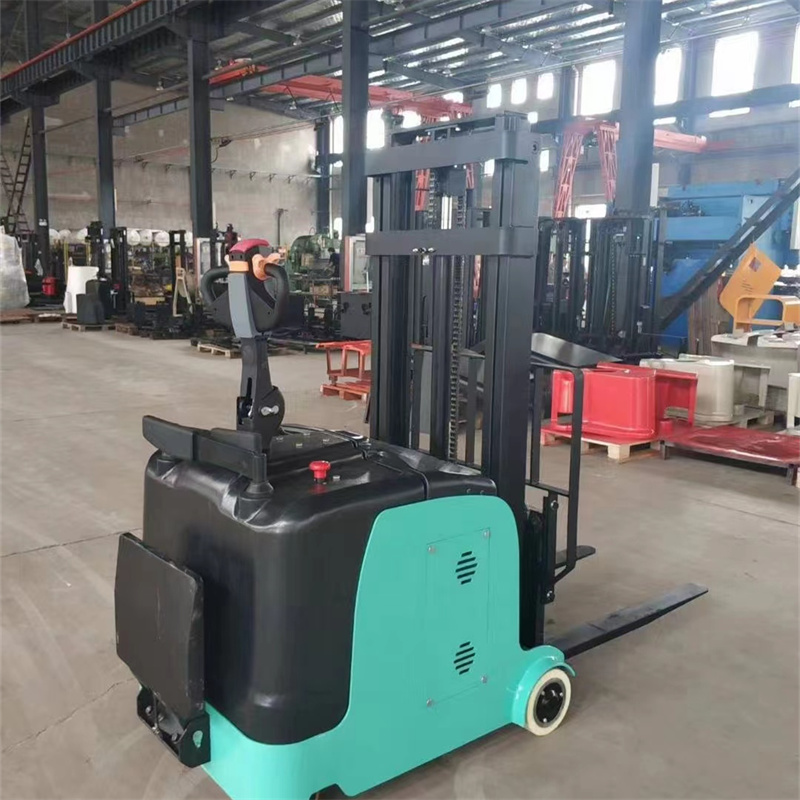

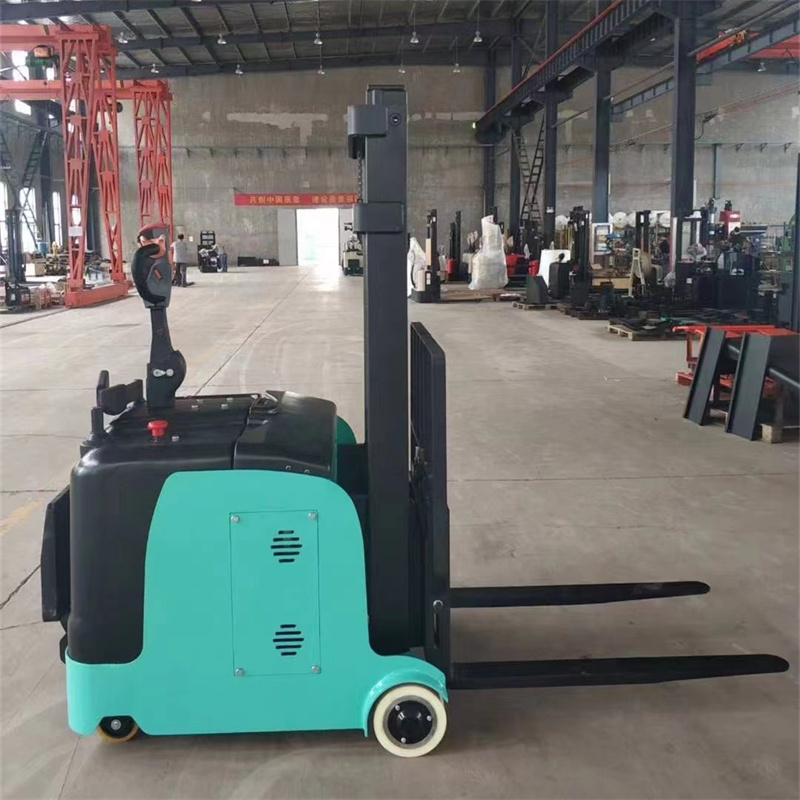

Product Figure
.jpg)
Advantages:
Short wheelbase, CURTIS brand drive control system, multi-functional integrated handle, electronic steering, lightweight. Integrated low noise hydraulic pump, AC drive, no carbon brush, motor maintenance free. Electromagnetic and regenerative braking system. Lift limit, long life induction switch, body shock absorption system, handle shock absorption.
.jpg)
Security:
Bend automatic deceleration device, drive stepless speed regulation low voice hydraulic, controller multiple brake protection system, optional lithium battery, emergency reverse anti-collision/emergency brake device, oil cylinder safety cut-off valve, non-standard customization.
.jpg)
Sales Service
We offer 2 years or 2000 working hours period of warranty to our partners. In case of any defects or quality problems during the warranty period, Maximal will supply technical and spare parts supports to help our partners solving the problems immediately. 7x24 onlineservice are ready for you to ensure your equipments in excellent working condition.
.jpg)
.jpg)
.jpg)
Pre-Sales Service
* Inquiry and consulting support.
* Inspection support
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
