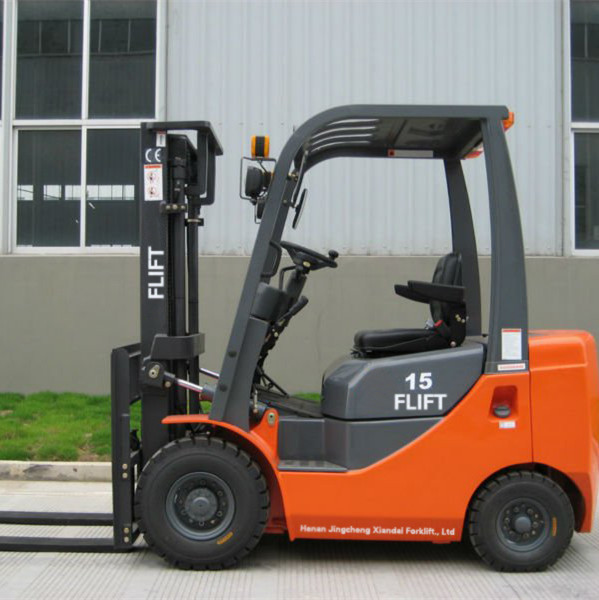

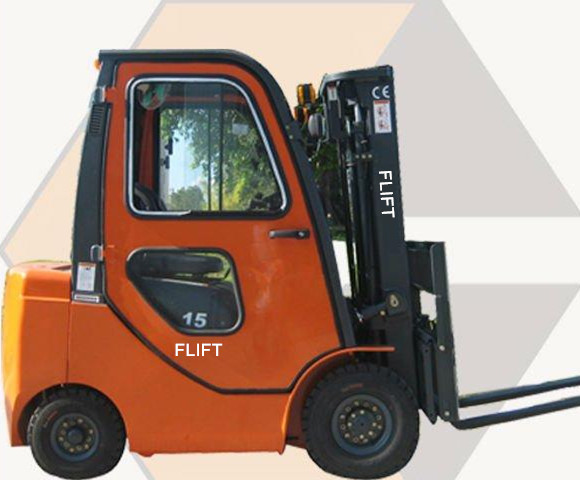

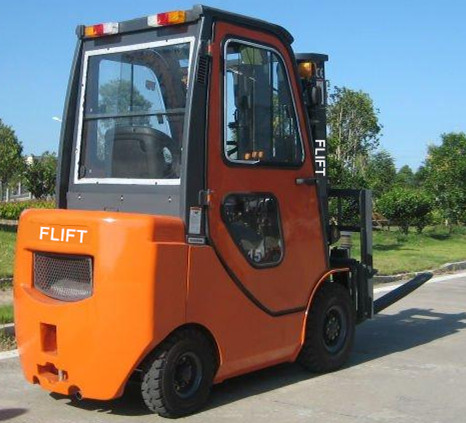

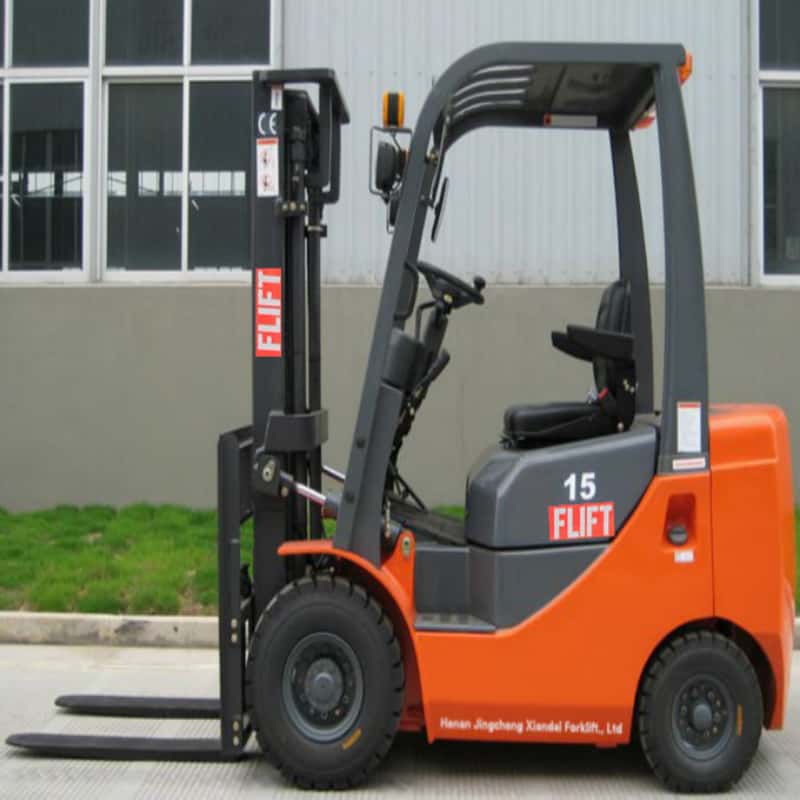

1.5 ton Diesel Forklift,Diesel Forklift

Technical Parameters

Model		FD15	FD20	FD25	FD30	FD35	FD40	FD50	FD60	FD70	FD100	FD120
Brand(OEM acceptable)		FLIFT	FLIFT	FLIFT	FLIFT	FLIFT	FLIFT	FLIFT	FLIFT	FLIFT	FLIFT	FLIFT
Power Source		Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel
Capacity	kg	1500	2000	2500	3000	3500	4000	5000	6000	7000	10000	12000
Load center	mm	500	500	500	500	500	500	600	600	600	600	600
Lift height（Duplex wide-view）	mm	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000
Fork size(LxWxH)	mm	92012035	107012045	107012040	107012545	107012550	107015050	122015060	122015060	122015070	152017585	1520180100
Mast tilt angle(F/R)	Deg	6°/12°	6°/12°	6°/12°	6°/12°	6°/12°	6°/12°	6°/12°	6°/12°	6°/12°	6°/12°	6°/12°
Length to face of fork	mm	2295	2600	2600	2730	2865	3220	3450	3450	3560	4280	4700
Overall width	mm	1086	1150	1150	1225	1308	1480	2010	2010	2010	2170	2200
Mast lowered height	mm	1995	1995	1995	2045	2175	2350	2500	2500	2500	2850	3100
Mast extended height	mm	3940	4030	4030	4150	4160	4250	4380	4380	4380	4300	4540
Overhead guard height	mm	2040	2070	2070	2090	2170	2320	2470	2470	2470	2570	2590
Turning radius	mm	2055	2310	2310	2440	2480	2900	3250	3250	3350	3970	4700
Min. right angle aisle width	mm	2150	2380	2380	2490	2530	2920	2960	2960	3040	3590	4200
Front overhang	mm	420	470	470	475	480	570	590	590	595	750	770
Ground clearance	mm	110	120	120	135	135	160	200	200	200	240	250
Wheelbase	mm	1400	1600	1600	1700	1700	2100	2250	2250	2250	2800	3200
Travel (no load)	km/h	15	19	19	19	19	19	26	26	26	30	28
Lifting (full load)	mm/s	450	530	530	440	420	460	500	500	460	270	280
Gradeability(laden)	%	20	20	20	20	20	20	20	20	20	20	20
Service weight	kg	2820	3590	3790	4390	5500	6450	8550	9150	9750	13100	124500
Front tire		6.50-10-10PR	7.00-12-12PR	7.00-12-12PR	28x9-15-12PR	28x9-15-12PR	300-15-18PR	8.25-15-14PR	8.25-15-14PR	8.25-15-14PR	9.00-20-14PR	9.00-20
Rear tire		5.00-8-10PR	6.00-9-10PR	6.00-9-10PR	6.50-10-10PR	6.50-10-10PR	7.00-12-12PR	8.25-15-14PR	8.25-15-14PR	8.25-15-14PR	9.00-20-14PR	9.00-20
Battery (voltage/capacity)	v/ah	(12V/80Ah)	(12V/80Ah)	(12V/80Ah)	(12V/80Ah)	(12V/80Ah)	(12V/80Ah)	(12V/80Ah)*2	(12V/80Ah)*2	(12V/80Ah)*2	(12V/80Ah)*2	(12V/80Ah)*2
Engine model		C490BPG-236	C490BPG-236	C490BPG-236	C490BPG-236	A495BPG-13	A498BPG-571	ISUZU-6BG1	ISUZU-6BG1	ISUZU-6BG1	ISUZU-6BG1	Cummins-6BT5.9-C130
Engine rated output/r.p.m	kw	40/2650	40/2650	40/2650	40/2650	42/2650	45/2500	82.3/2000	82.3/2000	82.3/2000	82.3/2000	97/2000
Engine rated torque/r.p.m.	n.m	160/1800-2000	160/1800-2000	160/1800-2000	160/1800-2000	174/1800-2000	193/1600-1800	416/1400-1600	416/1400-1600	416/1400-1600	416/1400-1600	560/1500
Engine No.of Cylinder		4	4	4	4	4	4	6	6	6	6	6
Bore x stroke	mm	95x105	95x105	95x105	90x105	95x105	98x105	105x125	105x125	105x125	105X125	102X120
Displacement	cc	2670	2670	2670	2670	2980	3170	6494	6494	6494	6494	5900
Fuel tank capacity	L	60	60	60	60	60	60	140	140	140	140	150

FEATURES

Small ton internal combustion forklift
Character:
1,Wide view mast
Wide-view mast gives the operator and enhanced forward visibility,which adds great to the efficiency and safety of operator.
2,Powerful engine
The powerful engine ensures our trucks high handling performance and offers an intrinsical safety and efficient operation.
3,Solid overhead guard
Specially designed solid overhead guard provides additional security for the operator
4,Reliable instruments
The instruments offer an easy access to the working condition of the truck,thus makes handling process more efficient and safe.
5,Ergonomics seat
Designed according to ergonomic principles,makes operation much comfortable and also relieves the fatigue caused by long time continuous operation.
6,Super low and non-slip step
Supper low and non-slip make operating convenient and safe.
