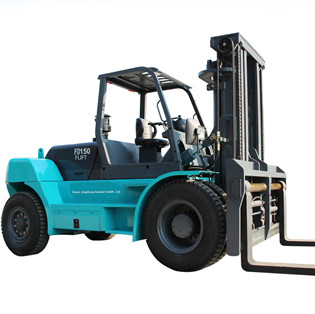

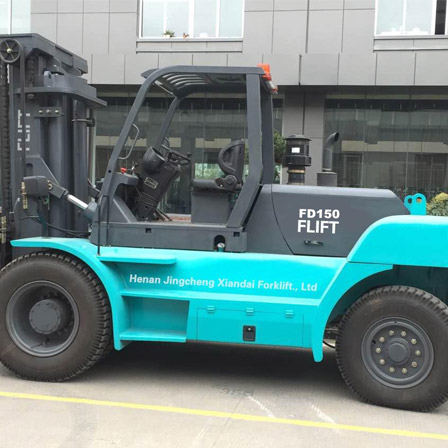

15 Ton Diesel Forklift,Diesel Forklift

Technical Parameters

Model		FD140	FD150	FD160	FD250	FD280	FD300	FD330	FD420	FD450	FD480
Brand(OEM acceptable)		FLIFT	FLIFT	FLIFT	FLIFT	FLIFT	FLIFT	FLIFT	FLIFT	FLIFT	FLIFT
Capacity	kg	14000	15000	16000	25000	280000	30000	33000	42000	45000	48000
Power Source		Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel
Load center	mm	900	600	600	1200	1200	1200	1200	1200	1200	1200
Lift height	mm	3000	3000	3000	4000	4000	4000	4000	4000	4000	4000
Fork size(LxWxH)	mm	1820X200X90	1820X200X90	1820X200X90	2440x250x110	2440x250x110	2440x250x110	2440x250x110	2440x300x135	2440x300x135	2440x300x135
Mast tilt angle(F/R)	Deg	6°/12°	6°/12°	6°/12°	5°/10°	5°/10°	5°/10°	5°/10°	5°/10°	5°/10°	5°/10°
Length to face of fork	mm	4960	4960	4960	6885	6885	6885	6885	7600	7800	7800
Overall width	mm	2490	2490	2490	3050	3050	3050	3050	4220	4220	4220
Mast lowered height	mm	3170	3170	3170	4000	4000	4000	4000	4550	4550	4550
Mast extended height	mm	4670	4670	4670	6000	6000	6000	6000	6485	6485	6485
Overhead guard height	mm	2930	2930	2930	3500	3500	3500	3500	3660	3660	3660
Turning radius	mm	4500	4500	4500	6500	6500	6500	6500	7500	7500	7500
Min. right angle aisle width	mm	6800	6800	6800	8800	8800	8800	8800	11300	11300	11300
Front overhang	mm	900	900	900	1240	1240	1240	1240	1240	1240	1240
Ground clearance	mm	255	255	255	250	250	250	250	305	305	305
Wheelbase	mm	3250	3250	3250	4650	4650	4650	4650	5500	5500	5500
Travel (no load)	km/h	23	23	23	25	25	25	25	24	24	24
Lifting (full load)	mm/s	380	380	380	300	300	300	300	220	220	220
Gradeability(laden)	%	20	20	20	20	20	20	20	20	20	20
Service weight	kg	16500	18500	20500	36600	38600	39600	40500	36600	38600	39600
Front tire		12.00-24-20PR	12.00-24-20PR	12.00-24-20PR	14.00-24	14.00-24	14.00-24	14.00-24	18.00-25	18.00-25	18.00-25
Rear tire		12.00-20-18PR	12.00-20-18PR	12.00-20-18PR	14.00-24	14.00-24	14.00-24	14.00-24	18.00-25	18.00-25	18.00-25
Battery (voltage/capacity)	v/ah	24/120	24/120	24/120	24 /180	24 /180	24 /180	24 /180	24 /180	24 /180	24 /180
Engine model		YC6A180Z-T21(A7AGC)	YC6A180Z-T21(A7AGC)	YC6A180Z-T21(A7AGC)	TAD750VE	TAD750VE	TAD750VE	TAD750VE	TAD942VE	TAD942VE	TAD942VE
Manufacturer		YUCHAI	YUCHAI	YUCHAI	VOLVO	VOLVO	VOLVO	VOLVO	VOLVO	VOLVO	VOLVO
Engine rated output/r.p.m	kw	130/2300	130/2300	130/2300	181/2300	181/2300	181/2300	181/2300	250/2100	250/2100	250/2100
Engine rated torque/r.p.m.	n.m	670/1400-1700	670/1400-1700	670/1400-1700	1050/1500	1050/1500	1050/1500	1050/1500	1617/1400	1617/1400	1617/1400
Engine No.of Cylinder		6	6	6	6	6	6	6	6	6	6
Bore x stroke	mm	108X132	108X132	108X132	130X108	130X108	130X108	130X108	120X138	120X138	120X138
Displacement	cc	7255	7255	7255	7150	7150	7150	7150	9420	9420	9420
Fuel tank capacity	L	300/350	300/350	300/350	420	420	420	420	550/630	550/630	550/630
Transmission		hydraulic	hydraulic	hydraulic	hydraulic	hydraulic	hydraulic	hydraulic	hydraulic	hydraulic	hydraulic
Operating pressure for attachment	mpa	15	16	18	19	19	19	19	17.5	17.5	17.5

FEATURES

Large ton internal combustion forklift
Character:
1,Wide view mast
Wide-view mast gives the operator and enhanced forward visibility,which adds great to the efficiency and safety of operator.
2,Powerful engine
The powerful engine ensures our trucks high handling performance and offers an intrinsical safety and efficient operation.
3,Solid overhead guard
Specially designed solid overhead guard provides additional security for the operator
4,Reliable instruments
The instruments offer an easy access to the working condition of the truck,thus makes handling process more efficient and safe.
5,Ergonomics seat
Designed according to ergonomic principles,makes operation much comfortable and also relieves the fatigue caused by long time continuous operation.
6,Super low and non-slip step
Supper low and non-slip make operating convenient and safe.

Warranty and continuous original spare parts supply:

14 months or 1500 work-hour warranty period:
Frame, drive axle, wheel, rim, brake, brake pump, steering axle, steering cylinder, hydraulic pump, speed limit valve, fork, lift cylinder, tilt cylinder, control valve, hydraulic pipeline, water tank.
12 months or 1200 work-hour warranty period:
Engine ,hydraulic gear box, battery, instrument panel. Fan belt, all switches, plate friction outside and inside, generator and starter.
Our staff of sales and technical support is available to help you in selecting the right forklift, we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive product supplying. Our ultimate goal is your satisfaction！
