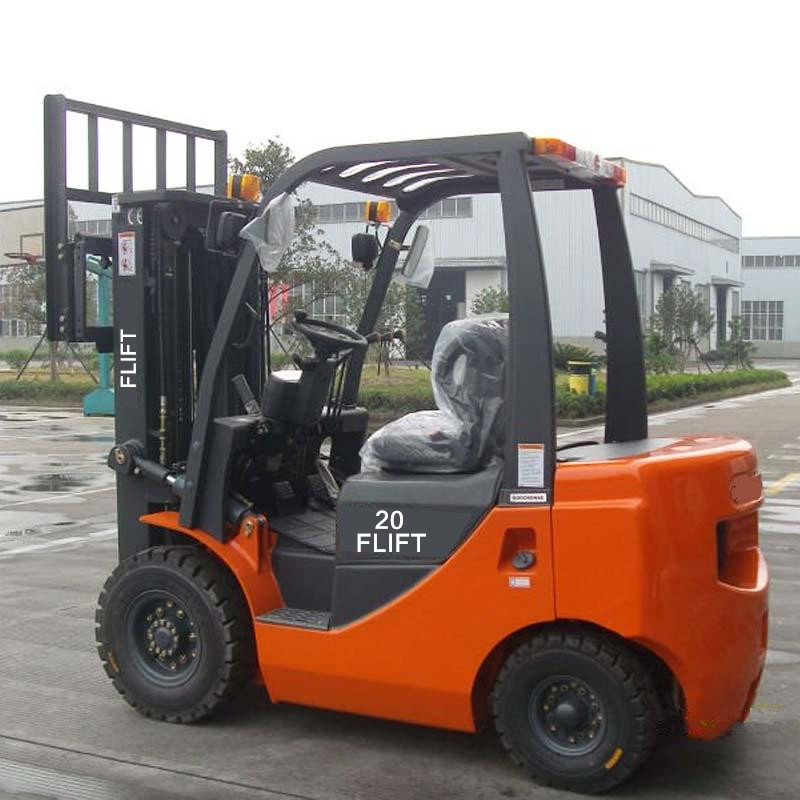

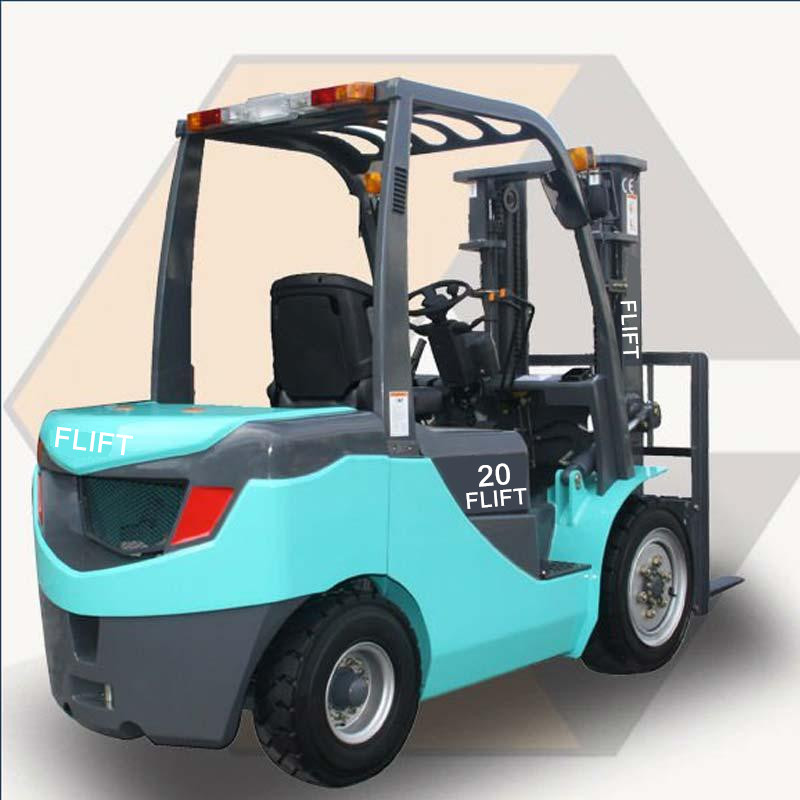

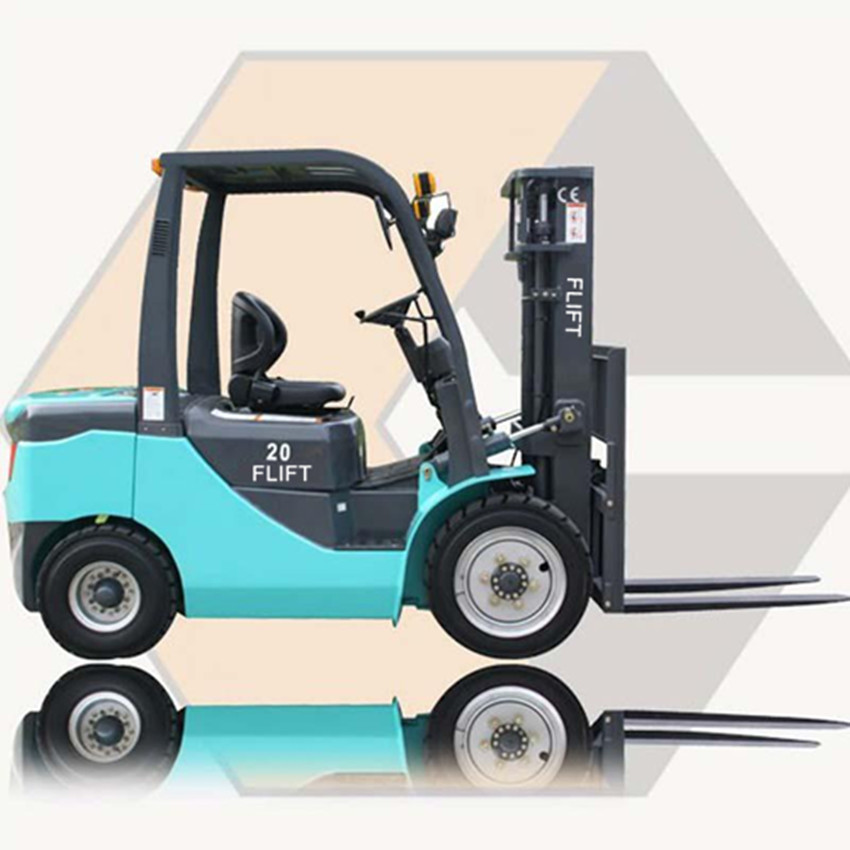

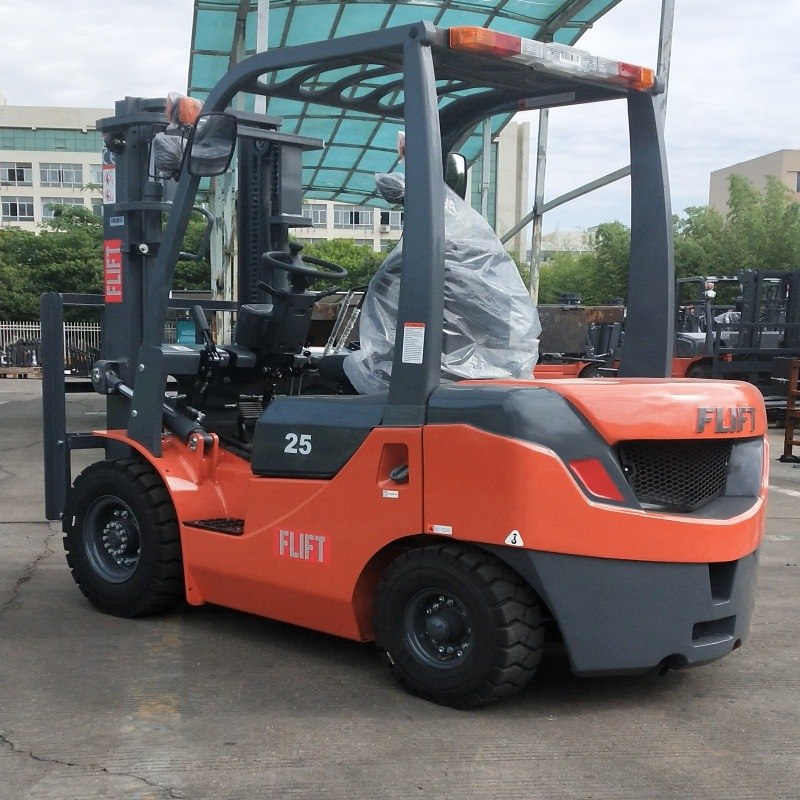

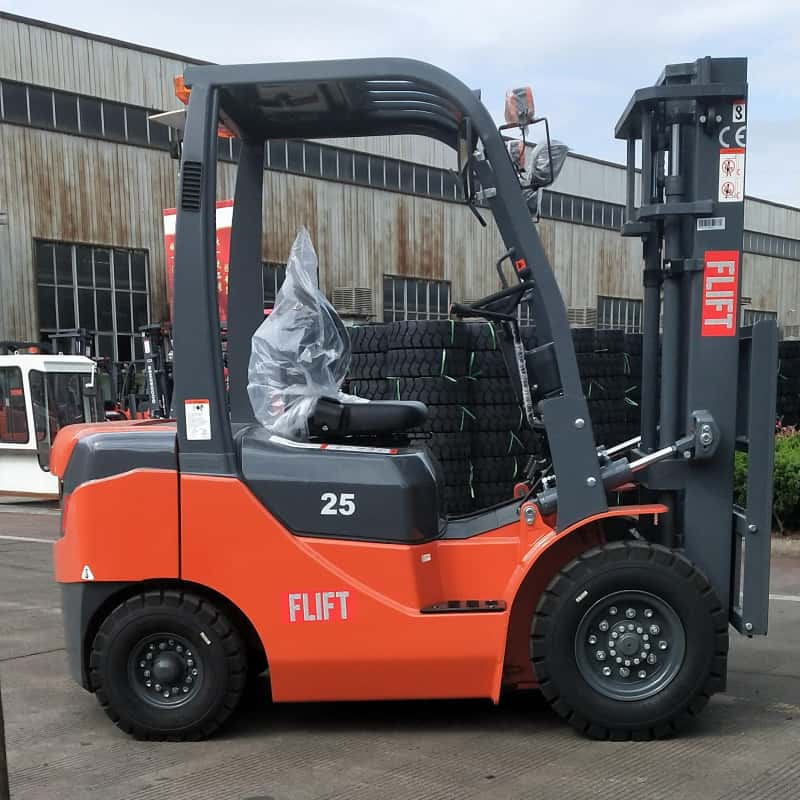

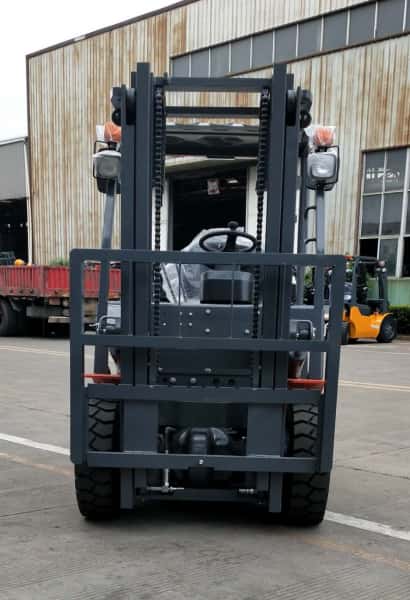

2 ton Diesel Forklift,Diesel Forklift

Technical Parameters

Model		FD20	FD25	FD30	FD35	FD35
Capacity	kg	2000	2500	3000	3500	3500
Load center	mm	500	500	500	500	500
Lift height	mm	3000	3000	3000	3000	3000
Fork size(LxWxH)	mm	107012045	107012040	107012545	107012550	107012550
Mast tilt angle(F/R)	Deg	6°/12°	6°/12°	6°/12°	6°/12°	6°/12°
Length to face of fork	mm	2600	2600	2730	2865	2865
Overall width	mm	1150	1150	1225	1308	1308
Mast lowered height	mm	1995	1995	2045	2175	2175
Mast extended height	mm	4030	4030	4150	4160	4160
Overhead guard height	mm	2070	2070	2090	2170	2170
Turning radius	mm	2310	2310	2440	2480	2480
Min. right angle aisle width	mm	2380	2380	2490	2530	2530
Front overhang	mm	470	470	475	480	480
Ground clearance	mm	120	120	135	135	135
Wheelbase	mm	1600	1600	1700	1700	1700
Travel (no load)	km/h	19	19	19	19	19
Lifting (full load)	mm/s	530	530	440	420	420
Gradeability(laden)	%	20	20	20	20	20
Service weight	kg	3590	3790	4390	5500	5500
Front tire		7.00-12-12PR	7.00-12-12PR	28x9-15-12PR	28x9-15-12PR	28x9-15-12PR
Rear tire		6.00-9-10PR	6.00-9-10PR	6.50-10-10PR	6.50-10-10PR	6.50-10-10PR
Battery (voltage/capacity)	v/ah	(12V/80Ah)	(12V/80Ah)	(12V/80Ah)	(12V/80Ah)	(12V/80Ah)
Engine model		C490BPG-6A	C490BPG-236	C490BPG-236	A495BPG-13	4JG2PE-01
Engine rated output/r.p.m	kw	36.8/2650	40/2650	40/2650	42/2650	46/2450
Engine rated torque/r.p.m.	n.m	148/1800-1900	160/1800-2000	160/1800-2000	174/1800-2000	186.3/1600-1800
Engine No.of Cylinder		4	4	4	4	4
Bore x stroke	mm	90x100	95x105	90x105	95x105	95.4x107
Displacement	cc	2540	2670	2670	2980	3059
Fuel tank capacity	L	60	60	60	60	60

FEATURES

Small capacity internal combustion forklift
Characteristics:
1,Wide view mast
Wide-view mast gives the operator and enhanced forward visibility,which adds great to the efficiency and safety of operator.
2,Powerful engine
The powerful engine ensures our trucks high handling performance and offers an intrinsical safety and efficient operation.
3,Solid overhead guard
Specially designed solid overhead guard provides additional security for the operator
4,Reliable instruments
The instruments offer an easy access to the working condition of the truck,thus makes handling process more efficient and safe.
5,Ergonomics seat
Designed according to ergonomic principles,makes operation much comfortable and also relieves the fatigue caused by long time continuous operation.
6,Super low and non-slip step
Supper low and non-slip make operating convenient and safe.

Applications
