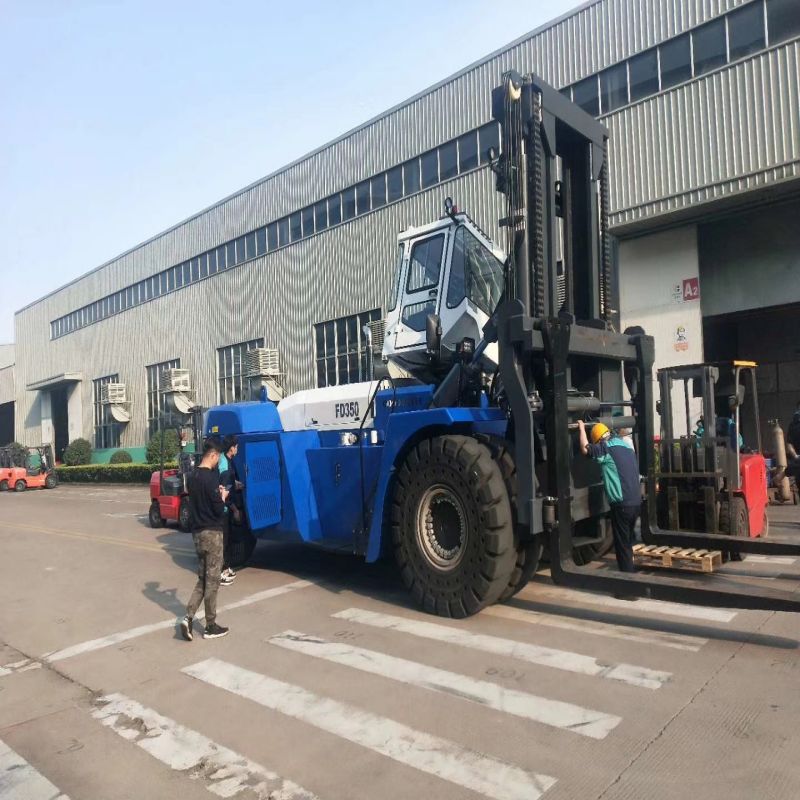

35 ton Diesel Forklift
ModelFD25,FD28,FD30, FD40
Capacity25000kg,28000kg, 30000kg,3300kg
Load center1200mm
Lift height4000mm
Fork size(LxWxH)2440x250x110mm,2440x250x110mm, 2440x250x110mm,2440x250x110mm
We're here to help:Easy ways to get the answers you need.
- 35ton Diesel Forklift
Counter Balance Heavy Duty Diesel Forklift 35 Ton Hydraulic Diesel Forklift Truck
Technical Parameters
| Model | FD250 | FD280 | FD300 | FD350 | |
| Capacity | kg | 25000 | 280000 | 30000 | 35000 |
| Load center | mm | 1200 | 1200 | 1200 | 1200 |
| Lift height | mm | 4000 | 4000 | 4000 | 4000 |
| Fork size(LxWxH) | mm | 2440x250x110 | 2440x250x110 | 2440x250x110 | 2440x250x110 |
| Mast tilt angle(F/R) | Deg | 5°/10° | 5°/10° | 5°/10° | 5°/10° |
| Length to face of fork | mm | 6885 | 6885 | 6885 | 6885 |
| Overall width | mm | 3050 | 3050 | 3050 | 3050 |
| Mast lowered height | mm | 4000 | 4000 | 4000 | 4000 |
| Mast extended height | mm | 6000 | 6000 | 6000 | 6000 |
| Overhead guard height | mm | 3500 | 3500 | 3500 | 3500 |
| Turning radius | mm | 6500 | 6500 | 6500 | 6500 |
| Min. right angle aisle width | mm | 8800 | 8800 | 8800 | 8800 |
| Front overhang | mm | 1240 | 1240 | 1240 | 1240 |
| Ground clearance | mm | 250 | 250 | 250 | 250 |
| Wheelbase | mm | 4650 | 4650 | 4650 | 4650 |
| Travel (no load) | km/h | 25 | 25 | 25 | 25 |
| Lifting (full load) | mm/s | 300 | 300 | 300 | 300 |
| Gradeability(laden) | % | 20 | 20 | 20 | 20 |
| Service weight | kg | 36600 | 38600 | 39600 | 40500 |
| Front tire | 14.00-24 | 14.00-24 | 14.00-24 | 14.00-24 | |
| Rear tire | 14.00-24 | 14.00-24 | 14.00-24 | 14.00-24 | |
| Battery (voltage/capacity) | v/ah | 24 /180 | 24 /180 | 24 /180 | 24 /180 |
| Engine model | TAD750VE | TAD750VE | TAD750VE | TAD750VE | |
| Manufacturer | VOLVO | VOLVO | VOLVO | VOLVO | |
| Engine rated output/r.p.m | kw | 181/2300 | 181/2300 | 181/2300 | 181/2300 |
| Engine rated torque/r.p.m. | n.m | 1050/1500 | 1050/1500 | 1050/1500 | 1050/1500 |
| Engine No.of Cylinder | 6 | 6 | 6 | 6 | |
| Bore x stroke | mm | 130X108 | 130X108 | 130X108 | 130X108 |
| Displacement | cc | 7150 | 7150 | 7150 | 7150 |
| Fuel tank capacity | L | 420 | 420 | 420 | 420 |
| Transmission | hydraulic | hydraulic | hydraulic | hydraulic | |
| Operating pressure for attachment | mpa | 19 | 19 | 19 | 19 |
FEATURES
Large ton internal combustion forklift
Character:
1.Scientific ergonomics design
2.Adjustable safety seat
3.Wide-view mast
4.High- mount exhaust system
5.Flexible steering system
6.Power-assisted brake
7.Optimal heat radiating& air duct system
8.Hydraulic transmission system
9.Easy available toolbox
10.Maintenance-free imported battery
11.Double air filter system (pre-filter and air-filter)
Excellent performance makes FLIFT forklift to be the prior choice for clients.
