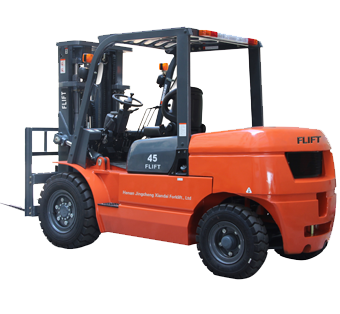

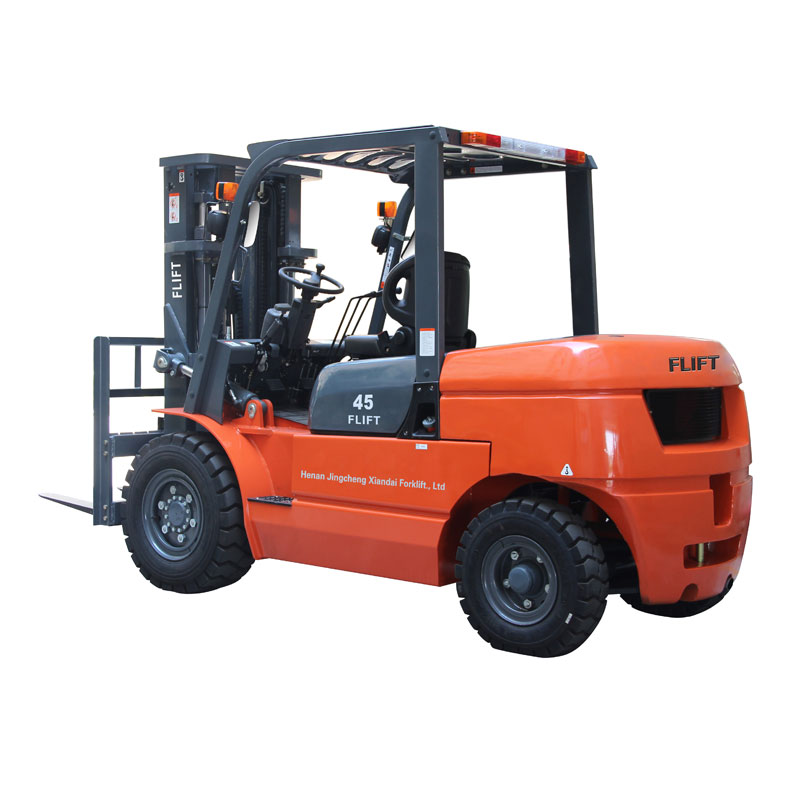

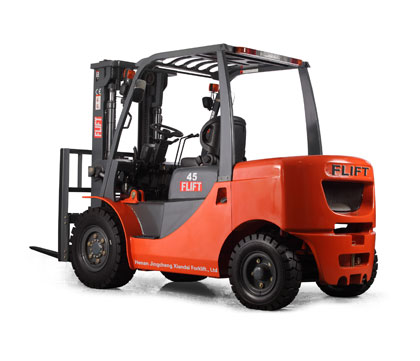

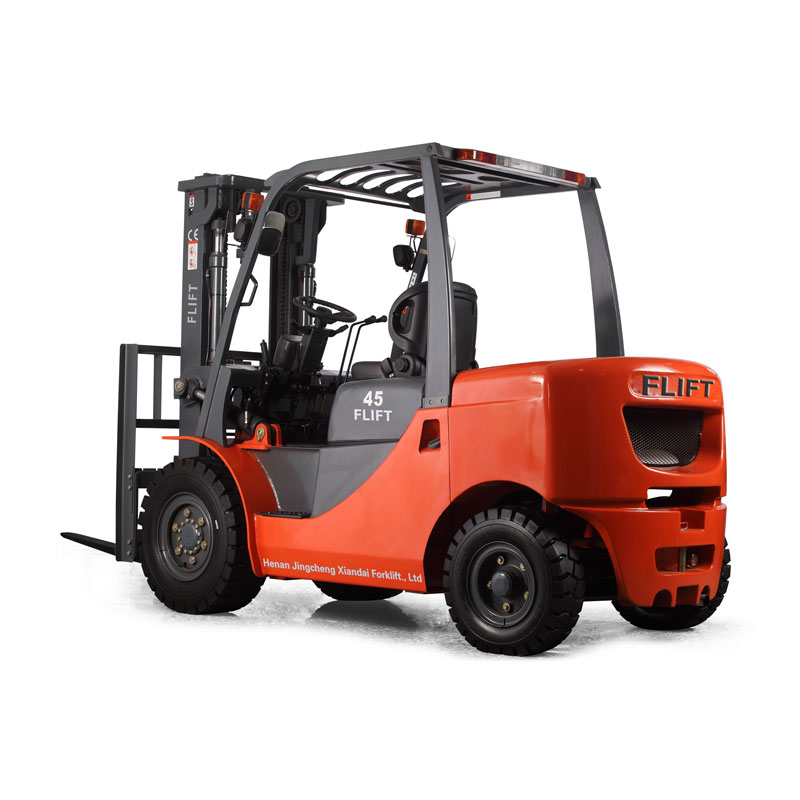

4.5 Ton Diesel Forklift,Diesel Forklift

Technical Parameters

Model		FD45	FD50	FD60	FD70	FD100	FD120
Brand(OEM acceptable)		FLIFT	FLIFT	FLIFT	FLIFT	FLIFT	FLIFT
Power Source		Diesel	Diesel	Diesel	Diesel	Diesel	Diesel
Capacity	kg	4500	5000	6000	7000	10000	12000
Load center	mm	500	600	600	600	600	600
Lift height（Duplex wide-view）	mm	3000	3000	3000	3000	3000	3000
Fork size(LxWxH)	mm	107015055	122015060	122015060	122015070	152017585	1520180100
Mast tilt angle(F/R)	Deg	6°/12°	6°/12°	6°/12°	6°/12°	6°/12°	6°/12°
Length to face of fork	mm	3245	3450	3450	3560	4280	4700
Overall width	mm	1430	2010	2010	2010	2170	2200
Mast lowered height	mm	2270	2500	2500	2500	2850	3100
Mast extended height	mm	4110	4380	4380	4380	4300	4540
Overhead guard height	mm	2265	2470	2470	2470	2570	2590
Turning radius	mm	2910	3250	3250	3350	3970	4700
Min. right angle aisle width	mm	2920	2960	2960	3040	3590	4200
Front overhang	mm	570	590	590	595	750	770
Ground clearance	mm	170	200	200	200	240	250
Wheelbase	mm	2100	2250	2250	2250	2800	3200
Travel (no load)	km/h	19	26	26	26	30	28
Lifting (full load)	mm/s	460	500	500	460	270	280
Gradeability(laden)	%	25	25	20	20	20	20
Service weight	kg	6680	8550	9150	9750	13100	124500
Front tire		300-15-18PR	8.25-15-14PR	8.25-15-14PR	8.25-15-14PR	9.00-20-14PR	9.00-20
Rear tire		7.00-12-12PR	8.25-15-14PR	8.25-15-14PR	8.25-15-14PR	9.00-20-14PR	9.00-20
Battery (voltage/capacity)	v/ah	(12V/80Ah)	(12V/80Ah)*2	(12V/80Ah)*2	(12V/80Ah)*2	(12V/80Ah)*2	(12V/80Ah)*2
Engine model		A498BPG-571	ISUZU-6BG1	ISUZU-6BG1	ISUZU-6BG1	ISUZU-6BG1	Cummins-6BT5.9-C130
Engine rated output/r.p.m	kw	45/2500	82.3/2000	82.3/2000	82.3/2000	82.3/2000	97/2000
Engine rated torque/r.p.m.	n.m	193/1600-1800	416/1400-1600	416/1400-1600	416/1400-1600	416/1400-1600	560/1500
Engine No.of Cylinder		4	6	6	6	6	6
Bore x stroke	mm	98x105	105x125	105x125	105x125	105X125	102X120
Displacement	cc	3170	6494	6494	6494	6494	5900
Fuel tank capacity	L	105	140	140	140	140	150

FEATURES

Large ton internal combustion forklift
Character:
1,Wide view mast
Wide-view mast gives the operator and enhanced forward visibility,which adds great to the efficiency and safety of operator.
2,Powerful engine
The powerful engine ensures our trucks high handling performance and offers an intrinsical safety and efficient operation.
3,Solid overhead guard
Specially designed solid overhead guard provides additional security for the operator
4,Reliable instruments
The instruments offer an easy access to the working condition of the truck,thus makes handling process more efficient and safe.
5,Ergonomics seat
Designed according to ergonomic principles,makes operation much comfortable and also relieves the fatigue caused by long time continuous operation.
6,Super low and non-slip step
Supper low and non-slip make operating convenient and safe.

Applications

Warranty and continuous original spare parts supply:

14 months or 1500 work-hour warranty period:
Frame, drive axle, wheel, rim, brake, brake pump, steering axle, steering cylinder, hydraulic pump, speed limit valve, fork, lift cylinder, tilt cylinder, control valve, hydraulic pipeline, water tank.
12 months or 1200 work-hour warranty period:
Engine ,hydraulic gear box, battery, instrument panel. Fan belt, all switches, plate friction outside and inside, generator and starter.
Our staff of sales and technical support is available to help you in selecting the right forklift, we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive product supplying. Our ultimate goal is your satisfaction！
