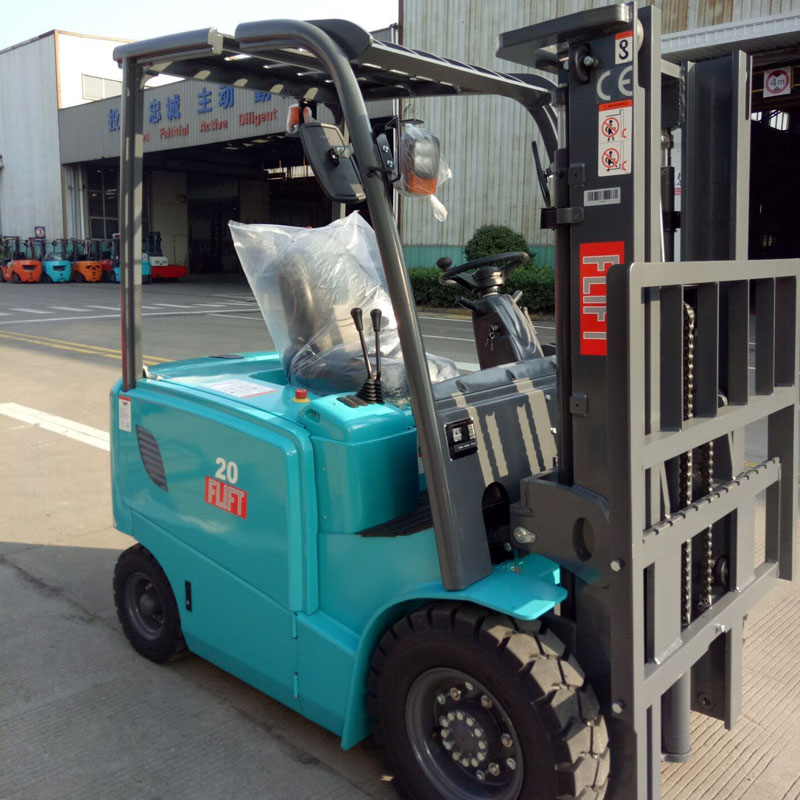

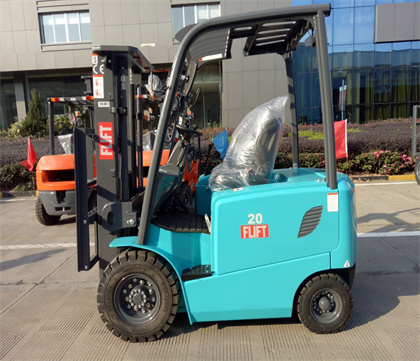

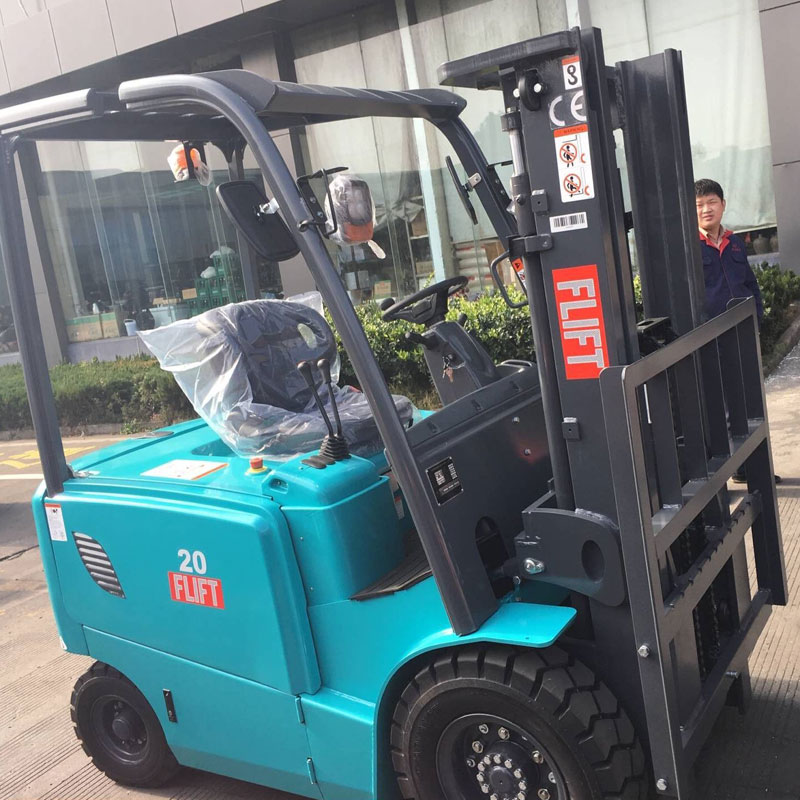

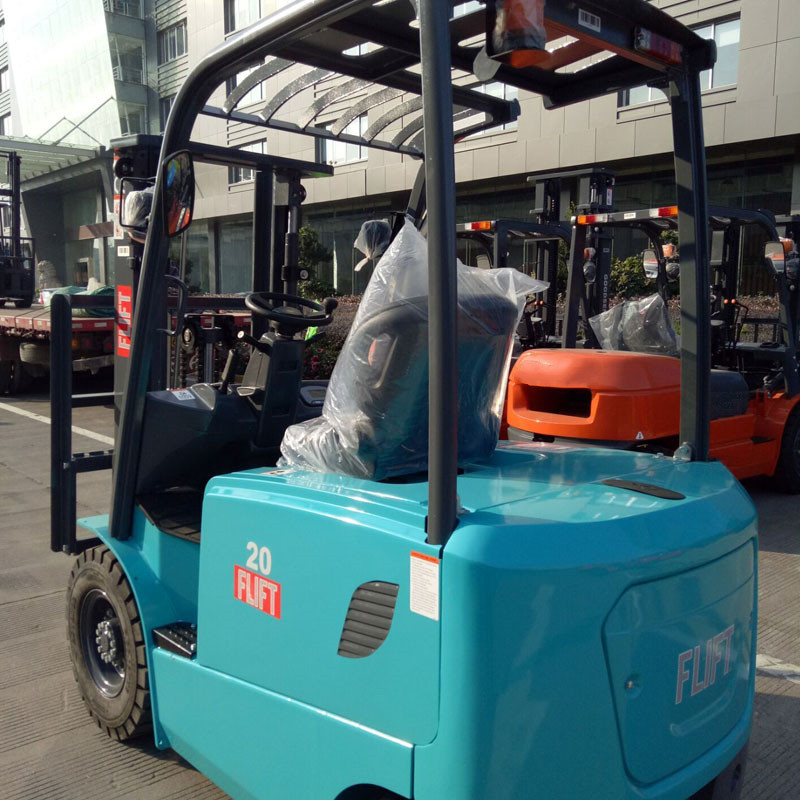

2 ton electric forklift,electric forklift truck,forklift truck

technical parameters

Model		FB10	FB15	FB18	FB20	FB25	FB30	FB35
Capacity	kg	1000	1500	1800	2000	2500	3000	3500
Load center	mm	500	500	500	500	500	500	500
Lift height	mm	3000	3000	3000	3000	3000	3000	3000
Fork size(LxWxH)	mm	920x120x35	920x120x35	920x120x35	1070x120x40	1070x120x40	1070x125x45	1070x125x45
Mast tilt angle(F/R)	Deg	6°/12°	6°/12°	6°/12°	6°/12°	6°/12°	6°/12°	6°/12°
Length to face of fork	mm	2150	2150	2150	2360	2360	2560	2560
Overall width	mm	1090	1090	1090	1160	1160	1230	1230
Mast lowered height	mm	1995	1995	1995	2070	2070	2120	2120
Mast extended height	mm	3945	3945	3945	4020	4020	4160	4160
Overhead guard height	mm	2170	2170	2170	2240	2240	2250	2250
Turning radius	mm	1950	1950	2075	2075	2075	2315	2315
Front overhang	mm	420	420	420	465	465	480	480
Ground clearance(mast)	mm	115	115	110	110	110	120	120
Wheelbase	mm	1380	1380	1510	1510	1510	1700	1700
Overall length(with forks)	mm	3070	3070	3070	3430	3430	3630	3630
Travel (no load)	km/h	15	15	15	15	15	15	15
Lifting (full load)	mm	310	280	250	300	270	300	280
Gradeability(laden)	%	15	15	15	15	15	15	15
Service weight	kg	2920	3070	3220	4170	4410	5100	5350
Front tire		6.5-10-10PR	6.5-10-10PR	6.5-10-10PR	7.00-12-12PR	7.00-12-12PR	28x9-15-12PR	7.00-12-12PR
Rear tire		5.00-8-10PR	5.00-8-10PR	5.00-8-10PR	18x7-8-14PR	18x7-8-14PR	18x7-8-14PR	18x7-8
Backrest height(from uper face of forks)	mm	880	880	880	994	994	930	930
Free lift	mm	115	115	115	125	125	130	130
Rear overhang	mm	350	350	350	385	385	400	400
Overhead guard clearance(from face of seat)	mm	1020	1020	1020	1020	1020	1020	1020
Lateral fork adjustment(outside of fork)	mm	240/970	240/970	240/970	240/1020	240/1020	250/1100	250/1100
Tread(front)	mm	890	890	890	960	960	1000	1000
Tread(rear)	mm	920	920	920	950	950	980	980
Min. interesecting aisle	mm	2050	2050	2050	2250	2250	2425	2425
Battery (voltage/capacity)	V/ah	48/400(440)	48/440(495)	48/495	48/560(630/700)	48/630(700/770)	80/500	80/500(550)
drive motor SME	kw	8/ 8	8/ 8	8/ 8	11.1/8	11.1/8	16.6/9	16.6/9
lift motor SME	kw	10/ 10	10/ 10	10/ 10	12/15	12/15	13.5/22	13.5/22
Controller manufacturer	SME/ZAPI/CURTIS	SME/ZAPI/CURTIS	SME/ZAPI/CURTIS	SME/ZAPI/CURTIS	SME/ZAPI/CURTIS	SME/ZAPI/CURTIS	SME/ZAPI/CURTIS	SME/ZAPI/CURTIS

FEATURES

1,Spacious workplace: Ample leg room helps to provide a relaxed,working environment,keeping the operator relaxed and focused throught the working day for maximum productivity.
2,Adjustable Steering wheel and safety seat.
3,Humanized right-side hydraulic operation handle and amergency power-off button.
4,Super low Non-slip pedal.
5,Full-view mast and fork carriage ensure operator’s excellent operation vision.
6,High-strength overhead guard.
7,The controller is directly fixed in the balanced weight to lead better heat dissipation.
8,Side cover can be quickly removed without any tools.
Hood cover open angle ≧90 degree,makes a convenient battery maintennance.
9,Waterproof,dustproof and shockproof LCD instrument.
10,Motor: side-mounted pump motor makes easier maintenance.

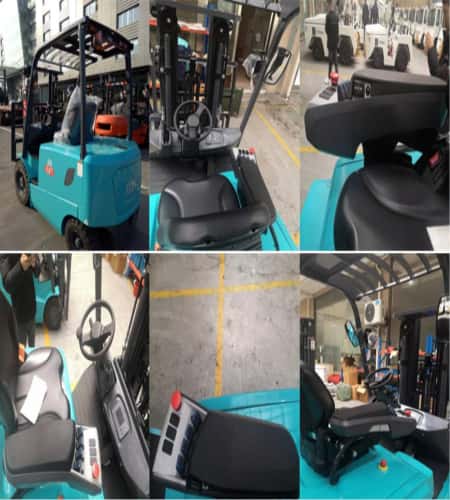

Product Details

Warranty and continuous original spare parts supply:

14 months or 1500 work-hour warranty period:
Frame, drive axle, wheel, rim, brake, brake pump, steering axle, steering cylinder, hydraulic pump, speed limit valve, fork, lift cylinder, tilt cylinder, control valve, hydraulic pipeline, water tank.
12 months or 1200 work-hour warranty period:
Engine ,hydraulic gear box, battery, instrument panel. Fan belt, all switches, plate friction outside and inside, generator and starter.
Our staff of sales and technical support is available to help you in selecting the right forklift, we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive product supplying. Our ultimate goal is your satisfaction！
