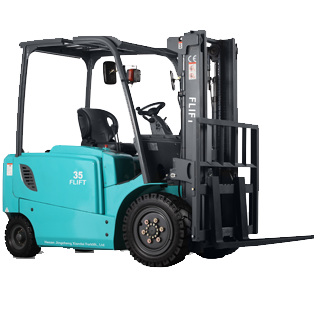

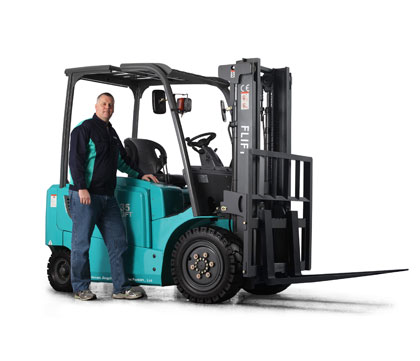

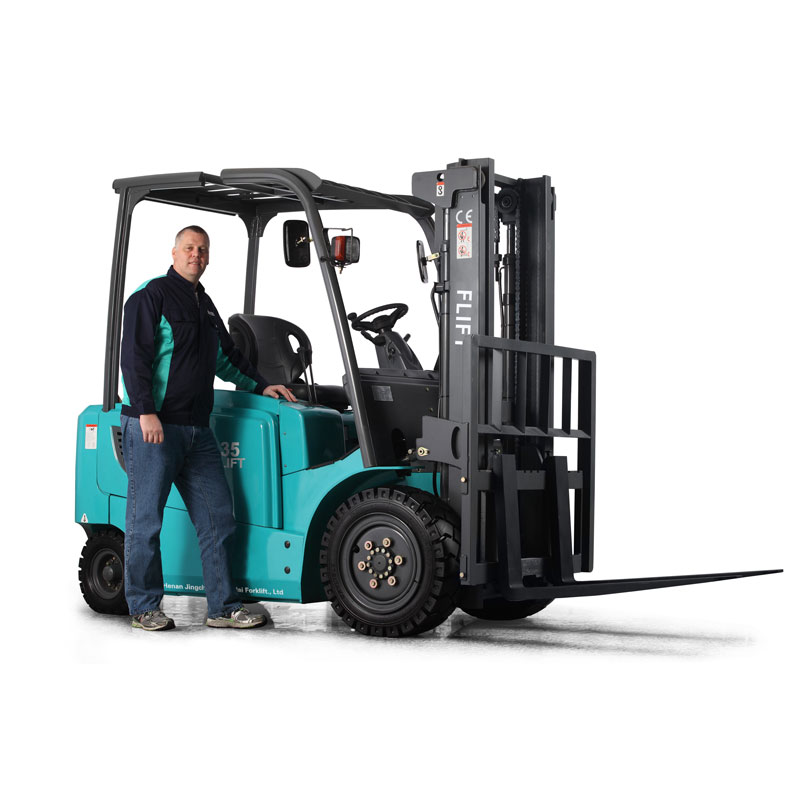

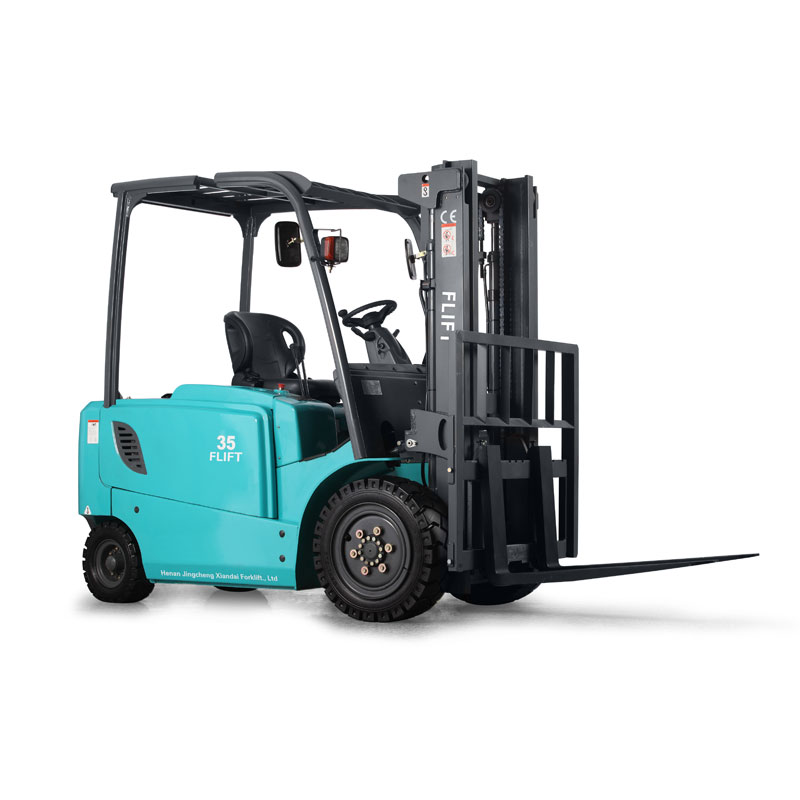

3.5 Ton Electric Forklift
ModelFB10,FB15,FB18,FB20, FB25,FB30,FB35
Capacity1800kg,2000kg, 3500kg.
Load center500mm
Lift height3000mm
Gradeability (laden)15%
We're here to help:Easy ways to get the answers you need.
- 3.5 Ton Electric Forklift
- Wide angle mast and fork holder make the operator an enhanced forwarder visibility when operating.
| technical parameters | |||||
| Model | FB20 | FB25 | FB30 | FB35 | |
| Capacity | kg | 2000 | 2500 | 3000 | 3500 |
| Load center | mm | 500 | 500 | 500 | 500 |
| Lift height | mm | 3000 | 3000 | 3000 | 3000 |
| Fork size(LxWxH) | mm | 1070x120x40 | 1070x120x40 | 1070x125x45 | 1070x125x45 |
| Mast tilt angle(F/R) | Deg | 6°/12° | 6°/12° | 6°/12° | 6°/12° |
| Length to face of fork | mm | 2360 | 2360 | 2560 | 2560 |
| Overall width | mm | 1160 | 1160 | 1230 | 1230 |
| Mast lowered height | mm | 2070 | 2070 | 2120 | 2120 |
| Mast extended height | mm | 4020 | 4020 | 4160 | 4160 |
| Overhead guard height | mm | 2240 | 2240 | 2250 | 2250 |
| Turning radius | mm | 2075 | 2075 | 2315 | 2315 |
| Front overhang | mm | 465 | 465 | 480 | 480 |
| Ground clearance(mast) | mm | 110 | 110 | 120 | 120 |
| Wheelbase | mm | 1510 | 1510 | 1700 | 1700 |
| Overall length(with forks) | mm | 3430 | 3430 | 3630 | 3630 |
| Travel (no load) | km/h | 15 | 15 | 15 | 15 |
| Lifting (full load) | mm | 300 | 270 | 300 | 280 |
| Gradeability(laden) | % | 15 | 15 | 15 | 15 |
| Service weight | kg | 4170 | 4410 | 5100 | 5350 |
| Front tire | 7.00-12-12PR | 7.00-12-12PR | 28x9-15-12PR | 7.00-12-12PR | |
| Rear tire | 18x7-8-14PR | 18x7-8-14PR | 18x7-8-14PR | 18x7-8 | |
| Backrest height(from uper face of forks) | mm | 994 | 994 | 930 | 930 |
| Free lift | mm | 125 | 125 | 130 | 130 |
| Rear overhang | mm | 385 | 385 | 400 | 400 |
| Overhead guard clearance(from face of seat) | mm | 1020 | 1020 | 1020 | 1020 |
| Lateral fork adjustment(outside of fork) | mm | 240/1020 | 240/1020 | 250/1100 | 250/1100 |
| Tread(front) | mm | 960 | 960 | 1000 | 1000 |
| Tread(rear) | mm | 950 | 950 | 980 | 980 |
| Min. interesecting aisle | mm | 2250 | 2250 | 2425 | 2425 |
| Battery (voltage/capacity) | V/ah | 48/560(630/700) | 48/630(700/770) | 80/500 | 80/500(550) |
| drive motor SME | kw | 11.1/8 | 11.1/8 | 16.6/9 | 16.6/9 |
| lift motor SME | kw | 12/15 | 12/15 | 13.5/22 | 13.5/22 |
| Controller manufacturer | SME/ZAPI/CURTIS | SME/ZAPI/CURTIS | SME/ZAPI/CURTIS | SME/ZAPI/CURTIS | SME/ZAPI/CURTIS |
FEATURES
1,Spacious workplace: Ample leg room helps to provide a relaxed,working environment,keeping the operator relaxed and focused throught the working day for maximum productivity.
2,Adjustable Steering wheel and safety seat.
3,Humanized right-side hydraulic operation handle and amergency power-off button.
4,Super low Non-slip pedal.
5,Full-view mast and fork carriage ensure operator’s excellent operation vision.
6,High-strength overhead guard.
7,The controller is directly fixed in the balanced weight to lead better heat dissipation.
8,Side cover can be quickly removed without any tools.
Hood cover open angle ≧90 degree,makes a convenient battery maintennance.
9,Waterproof,dustproof and shockproof LCD instrument.
10,Motor: side-mounted pump motor makes easier maintenance.
Applications
Warranty and continuous original spare parts supply:
14 months or 1500 work-hour warranty period:
Frame, drive axle, wheel, rim, brake, brake pump, steering axle, steering cylinder, hydraulic pump, speed limit valve, fork, lift cylinder, tilt cylinder, control valve, hydraulic pipeline, water tank.
12 months or 1200 work-hour warranty period:
Engine ,hydraulic gear box, battery, instrument panel. Fan belt, all switches, plate friction outside and inside, generator and starter.
