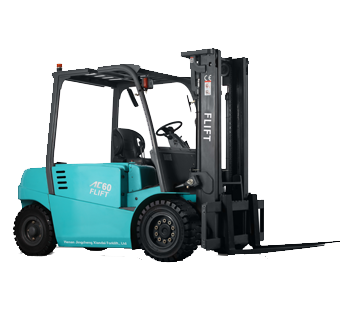

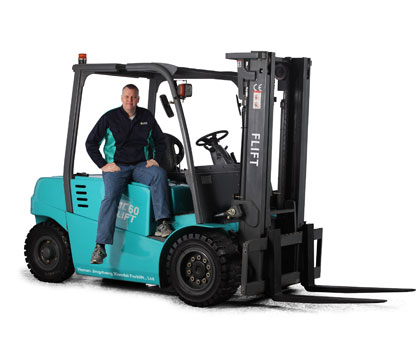

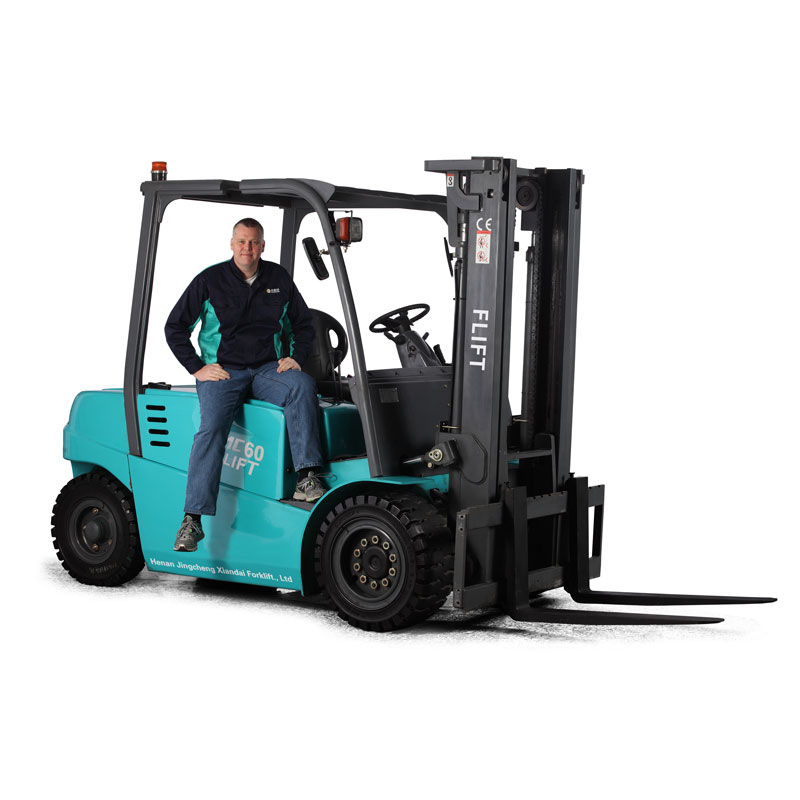

6 ton electric forklift,forklift truck

technical parameters

Model		FB40	FB45	FB50	FB60	FB80	FB100
Capacity	kg	4000	4500	5000	6000	8000	10000
Load center	mm	500	500	500	500	500	500
Lift height	mm	3000	3000	3000	3000	3000	3000
Fork size(LxWxH)	mm	1070x150x50	1070x150x50	1070x150x50	1070x150x50	1520x180x70	1520x200x80
Mast tilt angle(F/R)	Deg	6°/9°	6°/9°	6°/9°	6°/9°	6°/9°	6°/9°
Length to face of fork	mm	3030	3030	3030	3030	3600	3800
Overall width	mm	1600	1600	1600	1600	2000	2000
Mast lowered height	mm	2330	2330	2330	2330	2580	2580
Mast extended height	mm	4255	4255	4255	4255	4500	4500
Overhead guard height	mm	2255	2255	2255	2255	2400	2400
Turning radius	mm	2755	2755	2755	2755	3250	3250
Min right angle aisle width	mm	2955	2955	2955	2955	3800	3800
Ground clearance	mm	160	160	160	160	>200	>200
Wheelbase	mm	2000	2000	2000	2000	2400	2400
Travel (no load)	km/h	14	14	14	14	14	14
Lifting (full load)	mm	250	220	220	220	200	200
Gradeability(laden)	%	15	15	15	15	15	15
Service weight	kg	7400	7500	7800	8200	9000	10500
Front tire		28x12.5-15-24PR	28x12.5-15-24PR	28x12.5-15-24PR	28x12.5-15-24PR	825-15-24PR	825-15-24PR
Rear tire		7.00-12-14PR	7.00-12-14PR	7.00-12-14PR	7.00-12-14PR	825-15-24PR	825-15-24PR
Battery (voltage/capacity)	V/ah	80/600(700/800)	80/600(700/800)	80/700(800/880)	80/800(8)	80/900	80/1000
drive motor	kw	2x11	2x11	2x11	2x11	2x19	2x19
lift motor	kw	26	26	26	26	2x26	2x26
Controller manufacturer		SME/ZAPI/CURTIS	SME/ZAPI/CURTIS	SME/ZAPI/CURTIS	SME/ZAPI/CURTIS	SME/ZAPI/CURTIS	SME/ZAPI/CURTIS

FEATURES

1. Spacious workplace: Ample leg room helps to provide a relaxed working environment, keeping the operator relaxed and focused throughout the working day for maximum productivity.
2. Adjustable steering wheel and safety seat.
3. Humanized right-side hydraulic operation handle and emergency power-off button.
4. Super low non-slip pedal.
5. Full-view mast and fork carriage ensure operator`s excellent operation vision.
6. High-strength overhead guard.
7.The controller is directly fixed in the balanced weight to lead better hear dissipation.
8.Side cover can be quickly removed without any tools; Hood cover angle ≥90°，makes a convenient battery maintenance.
9.Waterproof, dustproof and shockproof LCD instrument.
10.Motor: side-mounted pump motor makes easier maintenance.

Applications

Warranty and continuous original spare parts supply:

14 months or 1500 work-hour warranty period:
Frame, drive axle, wheel, rim, brake, brake pump, steering axle, steering cylinder, hydraulic pump, speed limit valve, fork, lift cylinder, tilt cylinder, control valve, hydraulic pipeline, water tank.
12 months or 1200 work-hour warranty period:
Engine ,hydraulic gear box, battery, instrument panel. Fan belt, all switches, plate friction outside and inside, generator and starter.
Our staff of sales and technical support is available to help you in selecting the right forklift, we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive product supplying. Our ultimate goal is your satisfaction！
