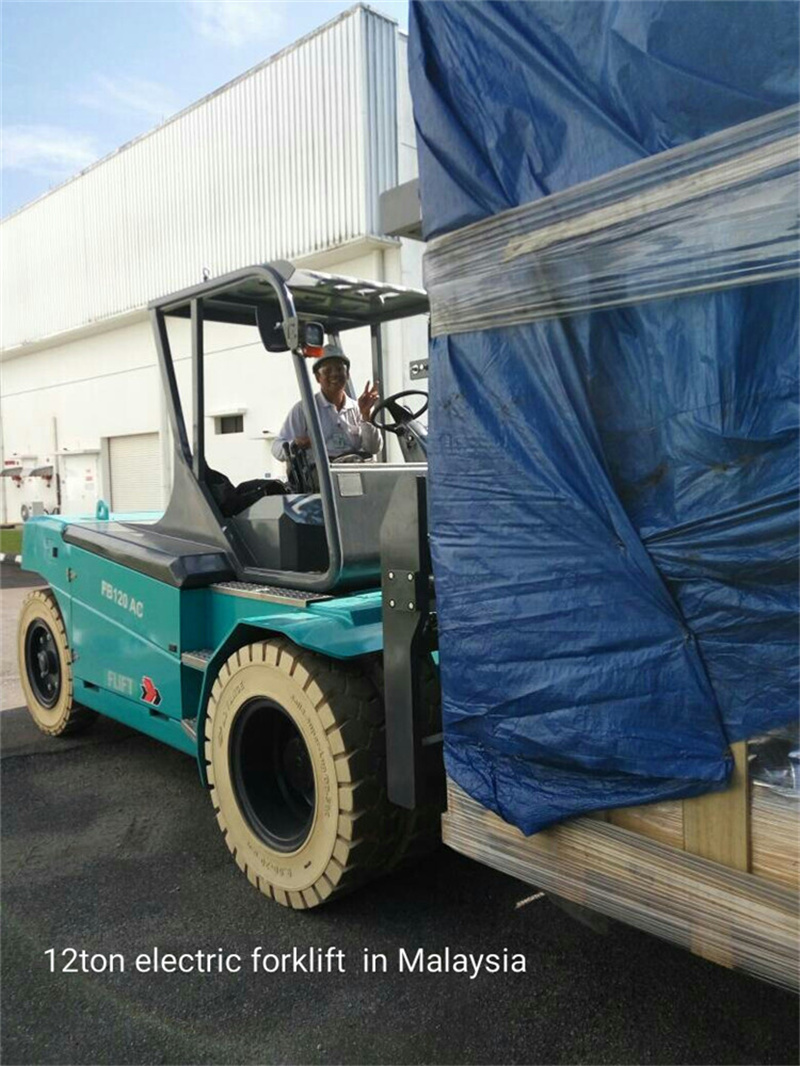

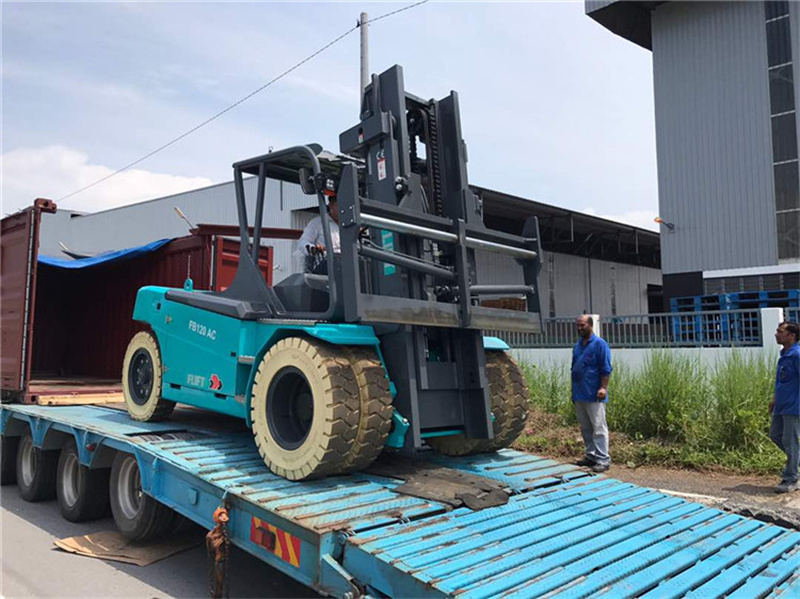

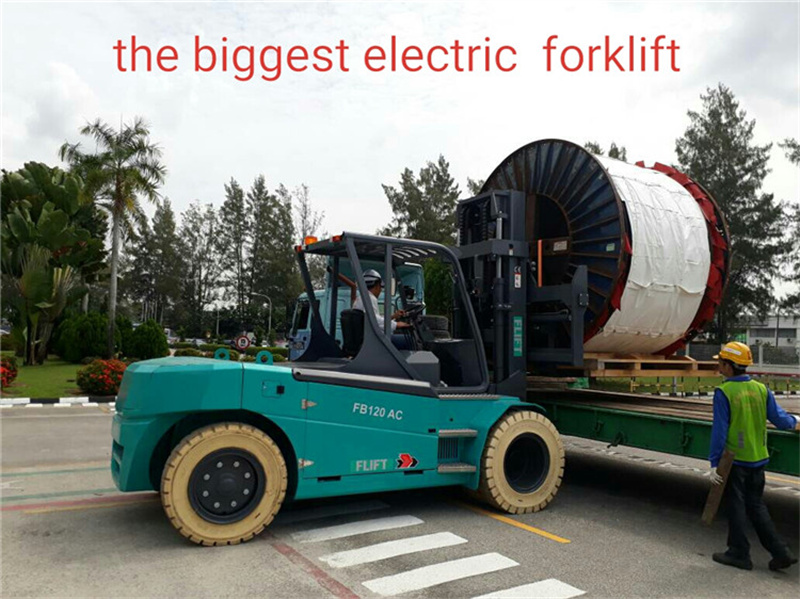

12t Electric Forklift Truck
Power TypeElectric
Driving TypeSeated
Rated Capacity12000KG
Service Weight16910kg
lift Height3000mm
We're here to help:Easy ways to get the answers you need.
- 12 Ton Electric Forklift
- Multi-function Factory Supply Seated Driving Type Solid Tires Battery Forklift with Chinese Battery.
.jpg)
| General | 1 | Model | FB120 | |||
| 2 | Power Type | Elctric | ||||
| 3 | Rated Capacity | kg | 12000 | |||
| 4 | Load Centre | mm | 600 | |||
| Characteristic & Dimension | 5 | Lift Height | mm | 3000 | ||
| 6 | Fork Size | L×W×T | mm | 1520*180*100 | ||
| 7 | Mast Tilt Angle | F/R | Deg | 6°/10° | ||
| 8 | Front Overhang (Wheel Center to fork face) | mm | 750 | |||
| 9 | Tread | F/R | mm | 1650/1700 | ||
| 10 | Ground Clearance (Bottom of mast) | mm | 210 | |||
| 11 | Fork Spread | Min./Max. | 515/2055 | |||
| 12 | Overall Dimension | Length to face of fork(Without fork) | mm | 4480 | ||
| 13 | Overall Width | mm | 2270 | |||
| 14 | Mast Lowered Height | mm | 2810 | |||
| 15 | Mast Extended Height(With backrest) | mm | 4550 | |||
| 16 | Overall Guard Height | mm | 2650 | |||
| 17 | Turning Radius(outside) | mm | 3850 | |||
| 18 | Min. insecting aisle | mm | 3200 | |||
| Performance | 19 | Speed | Travel(Empty load) | km/h | 15 | |
| 20 | Lifting(Full load) | mm/s | 220 | |||
| 21 | Max. Gradeability | % | 10 | |||
| Chassis | 22 | Tire | Front | 9.00-20 | ||
| 23 | Rear | 8.25-20 | ||||
| 24 | Wheel Base | mm | 2850 | |||
| 25 | Service Weight | kg | 16910 | |||
| Power & Transmission | 26 | Motor | Drive Motor | 2*20(SCHABMULLER) | ||
| 27 | Lift Motor | 2*28(SCHABMULLER) | ||||
| 28 | Battery | Voltage/Capacity | V/Ah | 96/1250 | ||
| 29 | Controller | Manufacturer | CURTIS | |||
| 30 | Type | AC | ||||
| 31 | Operating Pressure for Attachment | Mpa | 17.5 | |||
FEATURES
1,Spacious workplace: Ample leg room helps to provide a relaxed,working environment,keeping the operator relaxed and focused throught the working day for maximum productivity.
2,Adjustable Steering wheel and safety seat.
3,Humanized right-side hydraulic operation handle and amergency power-off button.
4,Super low Non-slip pedal.
5,Full-view mast and fork carriage ensure operator’s excellent operation vision.
6,High-strength overhead guard.
7,The controller is directly fixed in the balanced weight to lead better heat dissipation.
8,Side cover can be quickly removed without any tools.
Hood cover open angle ≧90 degree,makes a convenient battery maintennance.
9,Waterproof,dustproof and shockproof LCD instrument.
10,Motor: side-mounted pump motor makes easier maintenance.
.jpg)
DETAILS FIGURE
Warranty and continuous original spare parts supply:
14 months or 1500 work-hour warranty period:
Frame, drive axle, wheel, rim, brake, brake pump, steering axle, steering cylinder, hydraulic pump, speed limit valve, fork, lift cylinder, tilt cylinder, control valve, hydraulic pipeline, water tank.
12 months or 1200 work-hour warranty period:
Engine ,hydraulic gear box, battery, instrument panel. Fan belt, all switches, plate friction outside and inside, generator and starter.
