Sideshifting
BrandLDSJ

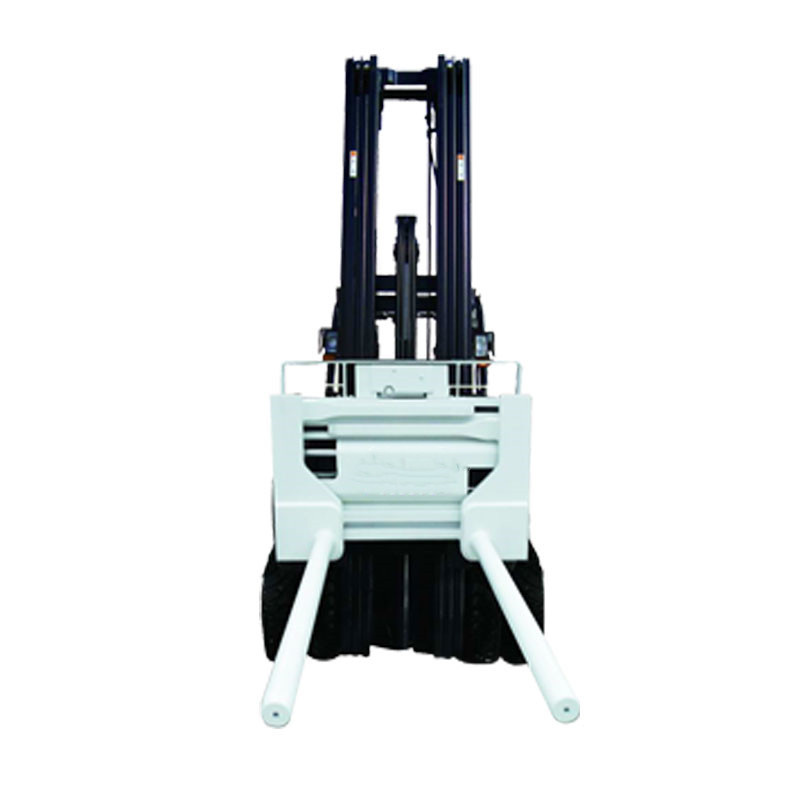

NameBar Arm Clamps
Applicationforklift
We're here to help:Easy ways to get the answers you need.
- Sideshifting
- Specifically designed for all tonnages of forklifts with international standard.With the forklift attachments, forklift will play its role to the best.
.jpg)
Technical Parameters
| 型号 | 载荷能力/ | 张臂 | 失载距 | 水平 | 自重 | 杆长 | 框架 | 安装 |
| Model | 载荷中心 | 范围 | Effective | 重心 | Weight | Bar | 宽度 | 等级 |
| Capacity/ | Opening | Thickness | Horizontal | Arm Length | Frame | Mounting | ||
| Load | Range | Center | Width | Class | ||||
| Center | Of | |||||||
| Gracity | ||||||||
| D | C | CGH | L | B | ||||
| KG/MM | MM | MM | MM | KG | MM | MM | ||
| G17S10-127A20 | 1000/500 | 440-1550 | 175 | 190 | 260 | 1000 | 860 | 2 |
| G17S10-127A40 | 210 | 280 | 1200 | 2 | ||||
| G17S15-140A20 | 1500/500 | 410-1650 | 180 | 195 | 305 | 1000 | 940 | 2 |
| G17S15-140A40 | 215 | 325 | 1200 | 2 | ||||
| G17S20-140A20 | 470-1800 | 210 | 200 | 430 | 1000 | 1040 | 2 | |
| G17S20-140B20 | 2000/500 | 3 | ||||||
| G17S20-140A40 | 470-1800 | 210 | 220 | 445 | 1200 | 1040 | 2 | |
| G17S20-140B40 | 3 | |||||||
| G17S25-184B40 | 245 | 710 | 1200 | 3 | ||||
| G17S25-184B60 | 2500/500 | 430-1950 | 230 | 255 | 730 | 1400 | 1200 | 3 |
| G17S25-184B70 | 260 | 745 | 1500 | 3 | ||||
| G17S30-184B40 | 315 | 730 | 1200 | 3 | ||||
| G17S30-184B60 | 3000/800 | 430-1950 | 250 | 320 | 755 | 1400 | 1200 | 3 |
| G17S30-184B70 | 325 | 770 | 1500 | 3 | ||||
| G17S35-184B40 | 330 | 850 | 1200 | 3 | ||||
| G17S35-184C40 | 4 | |||||||
| G17S35-184B60 | 3500/500 | 430-1950 | 270 | 340 | 880 | 1400 | 1200 | 3 |
| G17S35-184C60 | 4 | |||||||
| G17S35-184B70 | 345 | 900 | 1500 | 3 | ||||
| G17S35-184C70 | 4 |
FEATURES
Forklift attachments are an unique tool for forklifts
Character:
1.More convenient and safe
2.Multifunctional with different usages
3.Easy to assemble and dissemble
4.Coordinate with forklifts wonderfully
.jpg)
Applications
After-sales service
Warranty policy ：
If anything go wrong within 12months from the date of purchase we will pay for parts to have the repairs conducted with shipping expenses paid by the buyer.
We will not be responsible for damage cause by the user or owner or lack of required maintenance
or abuse.
