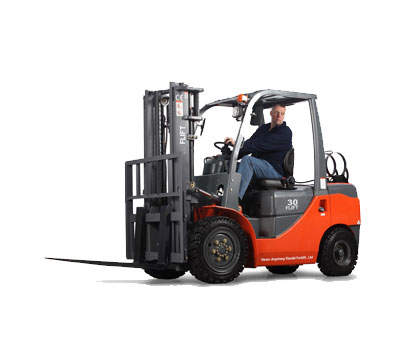

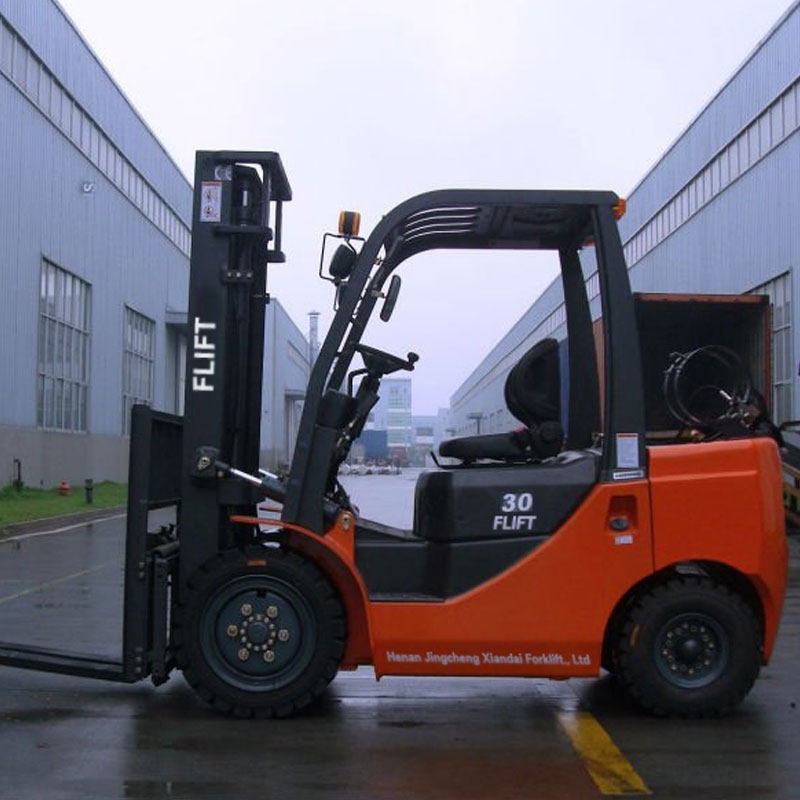

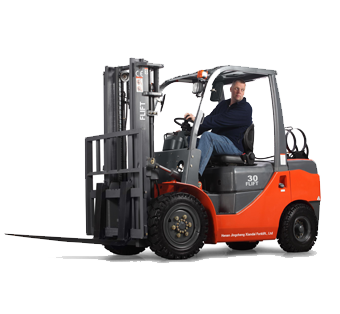

3 Ton LPG
ModelFY10,FY15,FY18
Capacity1000kg,1500kg,1800kg
Load center500mm
Lift height3000mm
Fork size(LxWxH)920x120x35mm
We're here to help:Easy ways to get the answers you need.
- 3 Ton LPG
- By a combination of advanced designs and technologies, FLIFT forklifts with excellent quality and performance have become the designated essential equipment for domestic airports transportation and material handling.
Technical Parameters
| Model | FY30 | FY35 | |
| Capacity | kg | 3000 | 3500 |
| Load center | mm | 500 | 500 |
| Lift height | mm | 3000 | 3000 |
| Fork size(LxWxH) | mm | 1070x125x45 | 1070x125x45 |
| Mast tilt angle(F/R) | Deg | 6°/12° | 6°/12° |
| Length to face of fork | mm | 2730 | 2770 |
| Overall width | mm | 1225 | 1225 |
| Mast lowered height | mm | 2115 | 2115 |
| Mast extended height | mm | 4160 | 4160 |
| Overhead guard height | mm | 2090 | 2090 |
| Turning radius | mm | 2440 | 2480 |
| Front overhang | mm | 475 | 480 |
| Ground clearance | mm | 135 | 135 |
| Wheelbase | mm | 1700 | 1700 |
| Travel (no load) | km/h | 19 | 19 |
| Lifting (full load) | mm/s | 440 | 420 |
| Gradeability(laden) | % | 20 | 20 |
| Service weight | kg | 4300 | 4500 |
| Front tire | 28x9-15-12PR | 28x9-15-12PR | |
| Rear tire | 6.50-10-10PR | 6.50-10-10PR | |
| Battery (voltage/capacity) | v/ah | 12/ 80 | 12/ 80 |
| Engine model | k25 | k25 | |
| Engine rated output/r.p.m | kw | 37.4/2300 | 37.4/2300 |
| Engine rated torque/r.p.m. | n.m | 176.5/1600 | 176.5/1600 |
| Engine No. of cylinder | 4 | 4 | |
| Bore x stroke | mm | 89x100 | 89x100 |
| Displacement | cc | 2488 | 2488 |
| Fuel tank capacity | L | 60 | 60 |
FEATURES
Small ton internal combustion forklift
Character:
1.Strong power system
2.Wide-view mast
3.Unique overhead guard design
4.Low non-slip pedal
5.Adjustable safety seat
6.Solid-state LCD digital meter
7.Eco-friendly design
8.Adjustable steering wheel
9.By a combination of advanced designs and technologies, FLIFT forklifts with excellent quality and performance have become the designated essential equipment for domestic airports transportation and material handling.
Applications
Warranty and continuous original spare parts supply:
14 months or 1500 work-hour warranty period:
Frame, drive axle, wheel, rim, brake, brake pump, steering axle, steering cylinder, hydraulic pump, speed limit valve, fork, lift cylinder, tilt cylinder, control valve, hydraulic pipeline, water tank.
12 months or 1200 work-hour warranty period:
Engine ,hydraulic gear box, battery, instrument panel. Fan belt, all switches, plate friction outside and inside, generator and starter.
Our staff of sales and technical support is available to help you in selecting the right forklift, we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive product supplying. Our ultimate goal is your satisfaction！
