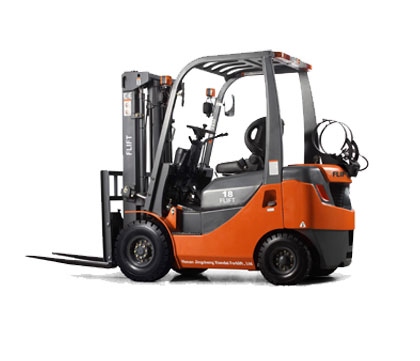

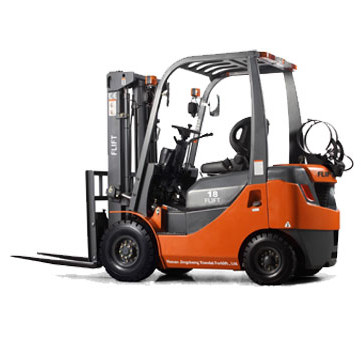

1.8 Ton CNG forklift
ModelCNG18
Capacity1800kg
Load center500mm
Lift height3000mm
Fork size(LxWxH)920x120x35mm
We're here to help:Easy ways to get the answers you need.
- 1.8 Ton CNG forklift
- By a combination of advanced designs and technologies, FLIFT forklifts with excellent quality and performance have become the designated essential equipment for domestic airports transportation and material handling.
Technical Parameters
| Model | CNG10 | CNG15 | CMG18 | |
| Capacity | kg | 1000 | 1500 | 1800 |
| Load center | mm | 500 | 500 | 500 |
| Lift height | mm | 3000 | 3000 | 3000 |
| Fork size(LxWxH) | mm | 920x120x35 | 920x120x35 | 920x120x35 |
| Mast tilt angle(F/R) | Deg | 6°/12° | 6°/12° | 6°/12° |
| Length to face of fork | mm | 2215 | 2295 | 2295 |
| Overall width | mm | 1086 | 1086 | 1086 |
| Mast lowered height | mm | 1995 | 1995 | 1995 |
| Mast extended height | mm | 3940 | 3940 | 3940 |
| Overhead guard height | mm | 2040 | 2040 | 2040 |
| Turning radius | mm | 1975 | 2055 | 2055 |
| Front overhang | mm | 420 | 420 | 420 |
| Ground clearance | mm | 420 | 420 | 420 |
| Wheelbase | mm | 1400 | 1400 | 1400 |
| Travel (no load) | km/h | 15 | 15 | 15 |
| Lifting (full load) | mm/s | 460 | 450 | 440 |
| Gradeability(laden) | % | 20 | 20 | 20 |
| Service weight | kg | 2490 | 2820 | 3000 |
| Front tire | 6.50-10-10PR | 6.50-10-10PR | 6.50-10-10PR | |
| Rear tire | 5.00-8-10PR | 5.00-8-10PR | 5.00-8-10PR | |
| Battery (voltage/capacity) | v/ah | 12/ 80 | 12/ 80 | 12/ 80 |
| Engine model | k21 | k21 | k21 | |
| Engine rated output/r.p.m | kw | 31.2/2250 | 31.2/2250 | 31.2/2250 |
| Engine rated torque/r.p.m. | n.m | 143.7/1600 | 143.7/1600 | 143.7/1600 |
| Engine No. of cylinder | 4 | 4 | 4 | |
| Bore x stroke | mm | 89x83 | 89x83 | 89x83 |
| Displacement | cc | 2065 | 2065 | 2065 |
| Fuel tank capacity | L | 45 | 45 | 45 |
FEATURES
Small ton internal combustion forklift
Character:
1.Strong power system
2.Wide-view mast
3.Unique overhead guard design
4.Low non-slip pedal
5.Adjustable safety seat
6.Solid-state LCD digital meter
7.Eco-friendly design
8.Adjustable steering wheel
9.By a combination of advanced designs and technologies, FLIFT forklifts with excellent quality and performance have become the designated essential equipment for domestic airports transportation and material handling.
Applications
