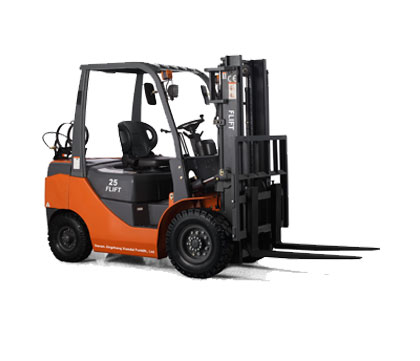

2.5 Ton CNG forklift
ModelCNG25
Capacity2500kg
Load center500mm
Lift height3000mm
Fork size(LxWxH)1070x125x45mm
We're here to help:Easy ways to get the answers you need.
- 2 .5 Ton CNG forklift
- By a combination of advanced designs and technologies, FLIFT forklifts with excellent quality and performance have become the designated essential equipment for domestic airports transportation and material handling.
Technical Parameters
| Model | CNG20 | CNG25 | |
| Capacity | kg | 2000 | 2500 |
| Load center | mm | 500 | 500 |
| Lift height | mm | 3000 | 3000 |
| Fork size(LxWxH) | mm | 1070x120x40 | 1070x120x40 |
| Mast tilt angle(F/R) | Deg | 6°/12° | 6°/12° |
| Length to face of fork | mm | 2600 | 2600 |
| Overall width | mm | 1150 | 1150 |
| Mast lowered height | mm | 2055 | 2055 |
| Mast extended height | mm | 4050 | 4050 |
| Overhead guard height | mm | 2070 | 2070 |
| Turning radius | mm | 2310 | 2310 |
| Front overhang | mm | 470 | 470 |
| Ground clearance | mm | 120 | 120 |
| Wheelbase | mm | 1600 | 1600 |
| Travel (no load) | km/h | 19 | 19 |
| Lifting (full load) | mm/s | 530 | 530 |
| Gradeability(laden) | % | 20 | 20 |
| Service weight | kg | 3560 | 3700 |
| Front tire | 7.00-12-12PR | 7.00-12-12PR | |
| Rear tire | 6.00-9-10PR | 6.00-9-10PR | |
| Battery (voltage/capacity) | v/ah | 12/ 80 | 12/ 80 |
| Engine model | k25 | k25 | |
| Engine rated output/r.p.m | kw | 37.4/2300 | 37.4/2300 |
| Engine rated torque/r.p.m. | n.m | 176.5/1600 | 176.5/1600 |
| Engine No. of cylinder | 4 | 4 | |
| Bore x stroke | mm | 89x100 | 89x100 |
| Displacement | cc | 2488 | 2488 |
| Fuel tank capacity | L | 60 | 60 |
FEATURES
Small ton internal combustion forklift
Character:
1.Strong power system
2.Wide-view mast
3.Unique overhead guard design
4.Low non-slip pedal
5.Adjustable safety seat
6.Solid-state LCD digital meter
7.Eco-friendly design
8.Adjustable steering wheel
9.By a combination of advanced designs and technologies, FLIFT forklifts with excellent quality and performance have become the designated essential equipment for domestic airports transportation and material handling.
Feature
