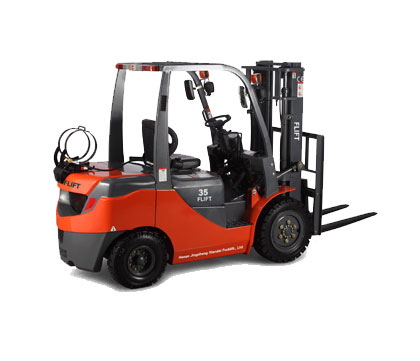

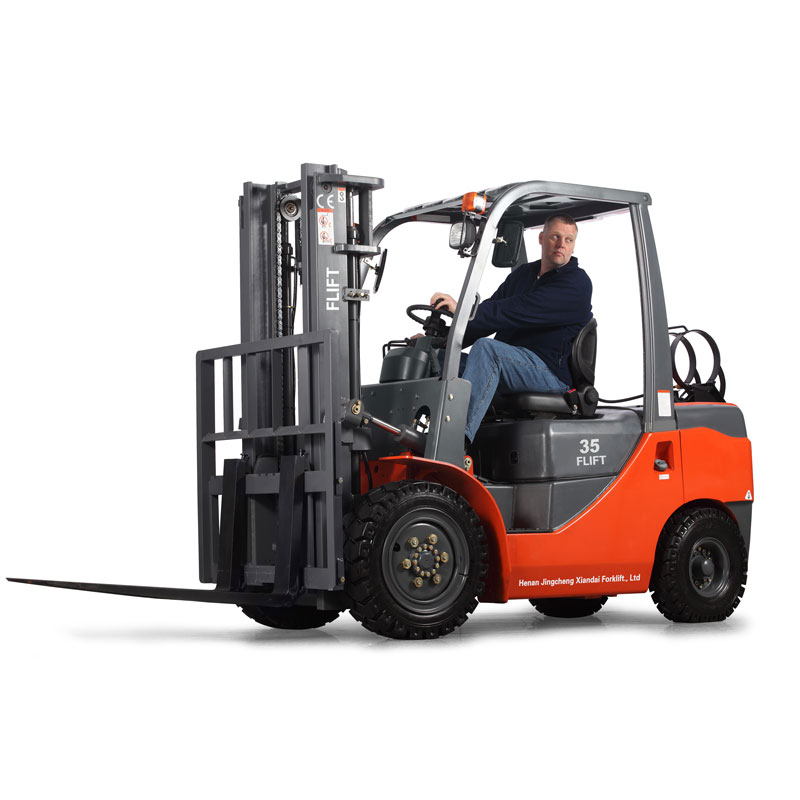

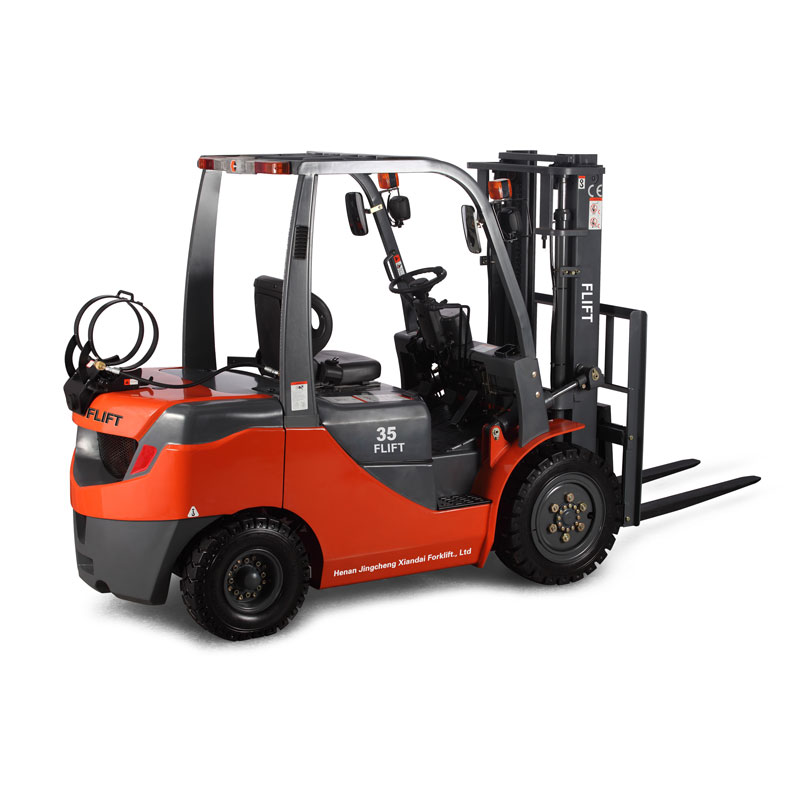

3.5 Ton CNG forklift with NISSON engine
ModelCNG35
Capacity3500kg
Load center500mm
Lift height3000mm
Fork size(LxWxH)1070x125x45mm
We're here to help:Easy ways to get the answers you need.
- 3.5ton CNG forklift
- By a combination of advanced designs and technologies, FLIFT forklifts with excellent quality and performance have become the designated essential equipment for domestic airports transportation and material handling.
Technical Parameters
| Model |
CNG35 |
|
| Capacity |
kg |
3500 |
| Load center |
mm |
500 |
| Lift height |
mm |
3000 |
| Fork size(LxWxH) |
mm |
1070x125x45 |
| Mast tilt angle(F/R) |
Deg |
|
| Length to face of fork |
mm |
2770 |
| Overall width |
mm |
1225 |
| Mast lowered height |
mm |
2115 |
| Mast extended height |
mm |
4160 |
| Overhead guard height |
mm |
2090 |
| Turning radius |
mm |
2480 |
| Front overhang |
mm |
480 |
| Ground clearance |
mm |
135 |
| Wheelbase |
mm |
1700 |
| Travel (no load) |
km/h |
19 |
| Lifting (full load) |
mm/s |
420 |
| Gradeability(laden) |
% |
20 |
| Service weight |
kg |
4500 |
| Front tire |
28x9-15-12PR |
|
| Rear tire |
6.50-10-10PR |
|
| Battery (voltage/capacity) |
v/ah |
12/ 80 |
| Engine model |
k25 |
|
| Engine rated output/r.p.m |
kw |
37.4/2300 |
| Engine rated torque/r.p.m. |
n.m |
176.5/1600 |
| Engine No. of cylinder |
4 |
|
| Bore x stroke |
mm |
89x100 |
| Displacement |
cc |
2488 |
| Fuel tank capacity |
L |
60 |
FEATURES
Small ton internal combustion forklift
Character:
1.Strong power system
2.Wide-view mast
3.Unique overhead guard design
4.Low non-slip pedal
5.Adjustable safety seat
6.Solid-state LCD digital meter
7.Eco-friendly design
8.Adjustable steering wheel
9.By a combination of advanced designs and technologies, FLIFT forklifts with excellent quality and performance have become the designated essential equipment for domestic airports transportation and material handling.
