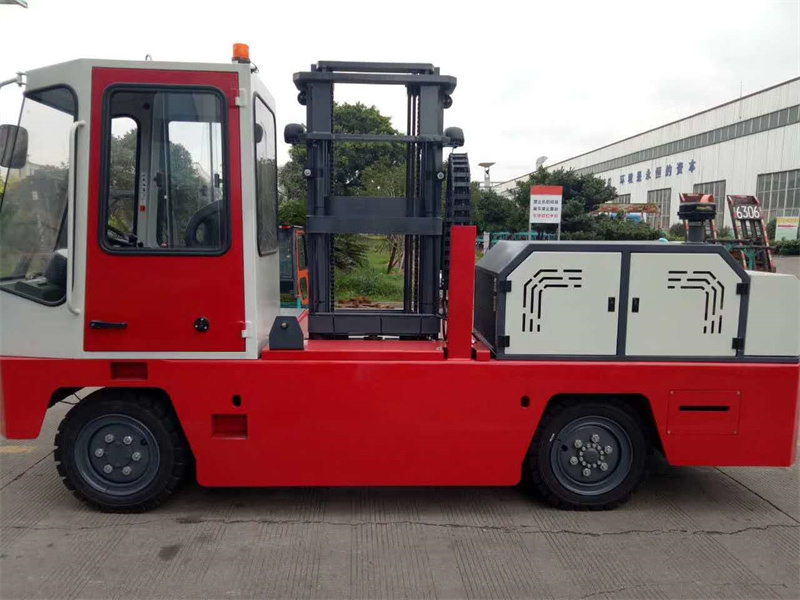

12t Diesel Side Loader Forklift
Power TypeDiesel
Lifting Height3600mm
Rated Capacity12000KG
Service Weight15000kg
Fork Length1.65m
We're here to help:Easy ways to get the answers you need.
- 12Ton Electric Forklift
- Factory Supply High Capacity 12t FDS120 Diesel Side Loader Forklift with Pneumatic Tires.
Technical Parameters
|
Rated lift quality (cargo center of gravity off the fork wall 0. 76m) |
12000㎏ |
|||
|
Maximum lifting height |
3.6m |
|||
|
Fork free lift height |
0.4m |
|||
|
Maximum lift speed (at full load) |
≥0.25m/s |
|||
|
Run Speed |
Good road surface |
Forward I. Block |
24km/h |
|
|
Forward II Block |
31.8km/h |
|||
|
Back off |
11.25km/h |
|||
|
Fork Inclination Up / Down |
5°/3° |
|||
|
Minimum turn radius（Outer outline） |
5.8m |
|||
|
Maximum traction |
64KN |
|||
|
Climbing Slope |
20% |
|||
|
Minimum ground clearance（Full） |
0.22m |
|||
|
Overall Dimension |
Long |
6.2m |
||
|
Wide（No reversing mirrors） |
2.6m |
|||
|
High |
When the fork is at the lowest position |
3.45m |
||
|
When the fork is at the highest position |
5.23m |
|||
|
Wheelbase |
3.7m |
|||
|
Tread(Front /Rear) |
2.2/2.11m |
|||
|
The height of the cargo stand（Full Load） |
1.34m |
|||
|
The width of the cargo stand |
1.76m |
|||
|
Fork length |
1.65m |
|||
|
Fork Maximum Pitch |
1.31m |
|||
|
Battery |
6-QA-135 2 piece 24V |
|||
|
Tire |
12.00-20-18PR (The rear wheel are dual) |
|||
|
Service weight |
15000kg |
|||
|
Engine |
Type No. |
Isuzu 6BG1 |
||
|
Rated power（kw/rpm） |
82.4/2000 |
|||
|
Maximum torque / speed（ N.m/rpm） |
416.8/1500 |
|||
FEATURES
1.Innovative Design;
2.Simplified Serviceability;
3.Enhanced Productivity;
4. Wide-view Mast -- offer enhanced forward visibility, thus more efficiency and safty during operation;
5.Solid Overhead Guard -- specially designed for additional security;
6.Ergonomics Seat -- much more comfortable and fatigue-relieve able after long time operation;
7.Powerful Engine -- imported brand engine ensures high performance, safty and efficiency;
8.Super low & Non-slip step.

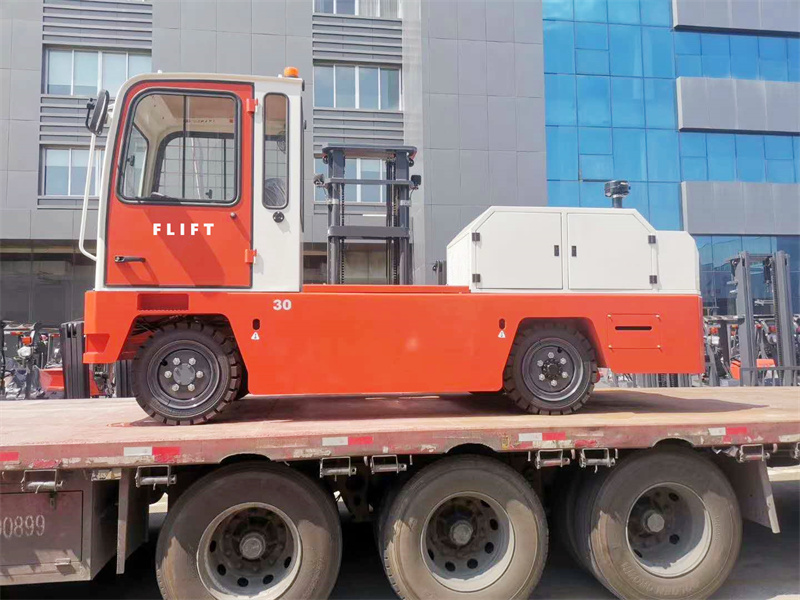

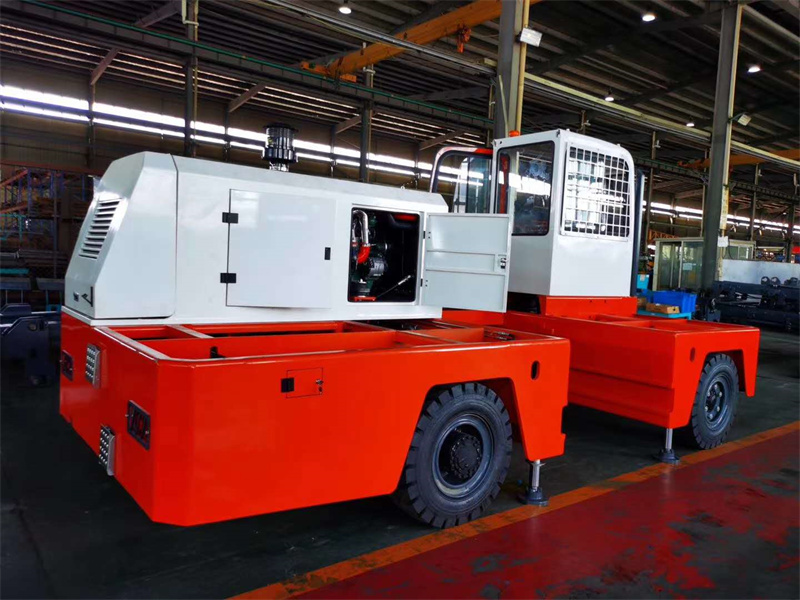

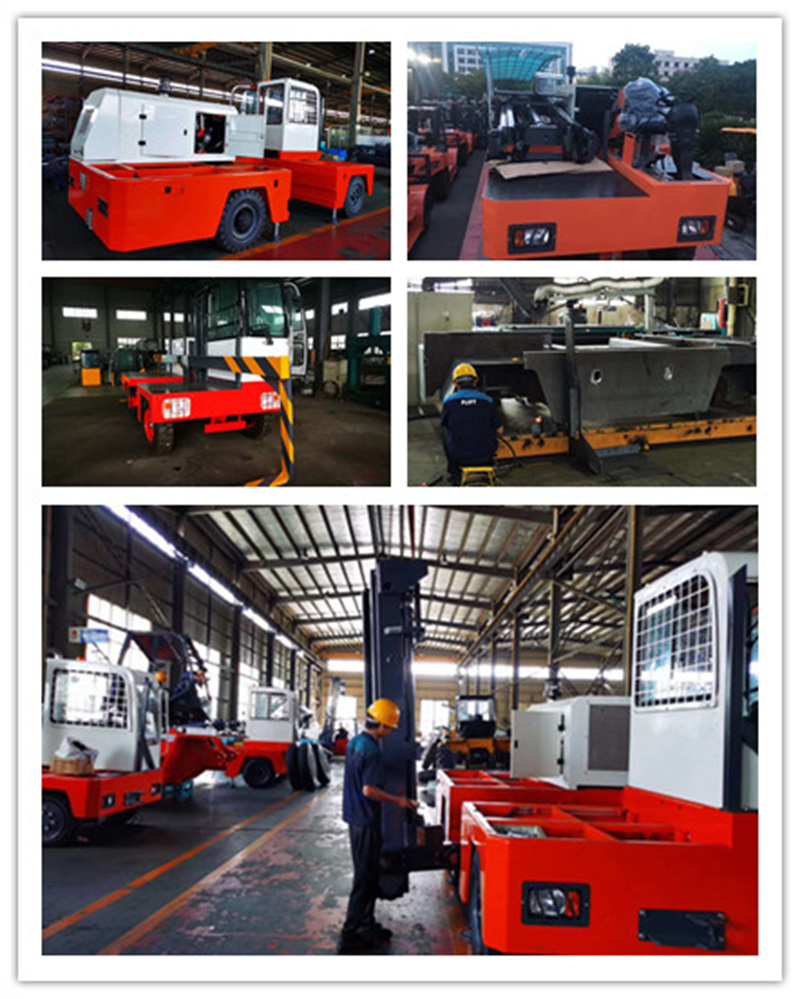

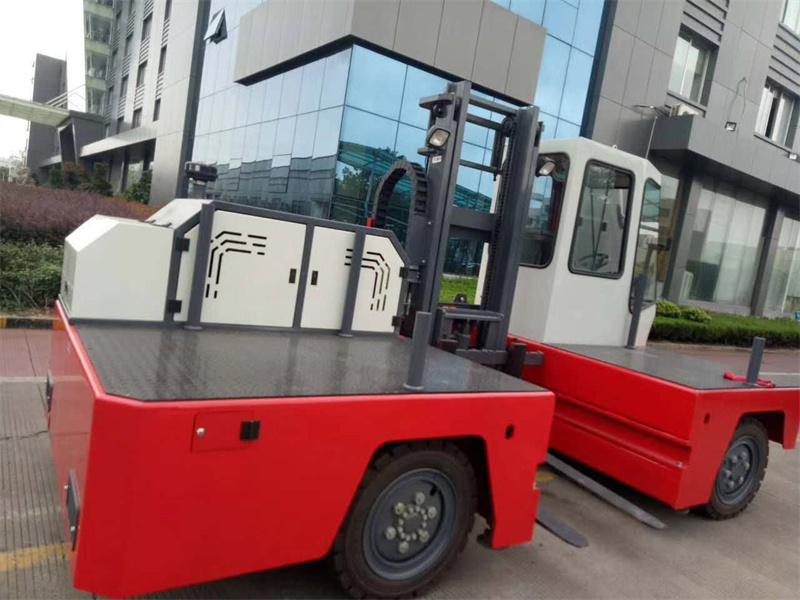

PRODUCT DISPLAY
.jpg)
Warranty and continuous original spare parts supply:
14 months or 1500 work-hour warranty period:
Frame, drive axle, wheel, rim, brake, brake pump, steering axle, steering cylinder, hydraulic pump, speed limit valve, fork, lift cylinder, tilt cylinder, control valve, hydraulic pipeline, water tank.
12 months or 1200 work-hour warranty period:
Engine ,hydraulic gear box, battery, instrument panel. Fan belt, all switches, plate friction outside and inside, generator and starter.
Our staff of sales and technical support is available to help you in selecting the right forklift, we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive product supplying. Our ultimate goal is your satisfaction！
