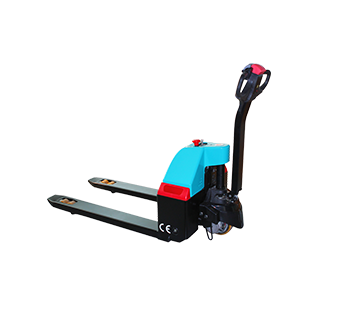

1.5 Ton Handling Electric Pallet Truck
ModelFBTA15
Turning radius(outside)1480mm
Service weight115kg
Max. gradeability(full load/unload)30%
Fork width560mm
We're here to help:Easy ways to get the answers you need.
- 1.5 Ton Handling Electric Pallet Truck
- mini material handling tools powered 1.5 ton electric pallet truck
| Technical Parameter | ||||
| Model | Mini ET Series | |||
| Characteristic | ||||
| Rated capacity | kg | 1000 | 1300 | 1500 |
| Service weight | kg | 115 | ||
| Dimension | ||||
| Height od fork,lowered | mm | 85 | ||
| Overall length | mm | 1600 | ||
| Overall width | mm | 560 | ||
| Fork width | mm | 560 | ||
| Min.right angle aisle width with pallet(1000x1200) | mm | 1930 | ||
| Min.right angle aisle width with pallet(800x1200) | mm | 1780 | ||
| Turning radius(outside) | mm | 1480 | ||
| Performance | ||||
| Travel speed(full load/unload) | Km/h | 3.5/4 | ||
| Max. gradeability(full load/unload) | % | 3/10 | ||
| Battery voltage/capacity | V/ah | 24/60x2 | ||
FEATURES
Built-in charging style
Anti-rollover design
Coulombmeter shows battery level, timely remind charging
Humanized, multifunction handle
Mini shape, economic and efficient
Beautiful design, delicate structure
Light, flexible, srong power
Applications
.jpg)
.jpg)
.jpg)
Warranty and continuous original spare parts supply:
14 months or 1500 work-hour warranty period:
Frame, drive axle, wheel, rim, brake, brake pump, steering axle, steering cylinder, hydraulic pump, speed limit valve, fork, lift cylinder, tilt cylinder, control valve, hydraulic pipeline, water tank.
12 months or 1200 work-hour warranty period:
Engine ,hydraulic gear box, battery, instrument panel. Fan belt, all switches, plate friction outside and inside, generator and starter.
Our staff of sales and technical support is available to help you in selecting the right forklift, we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive product supplying. Our ultimate goal is your satisfaction！
