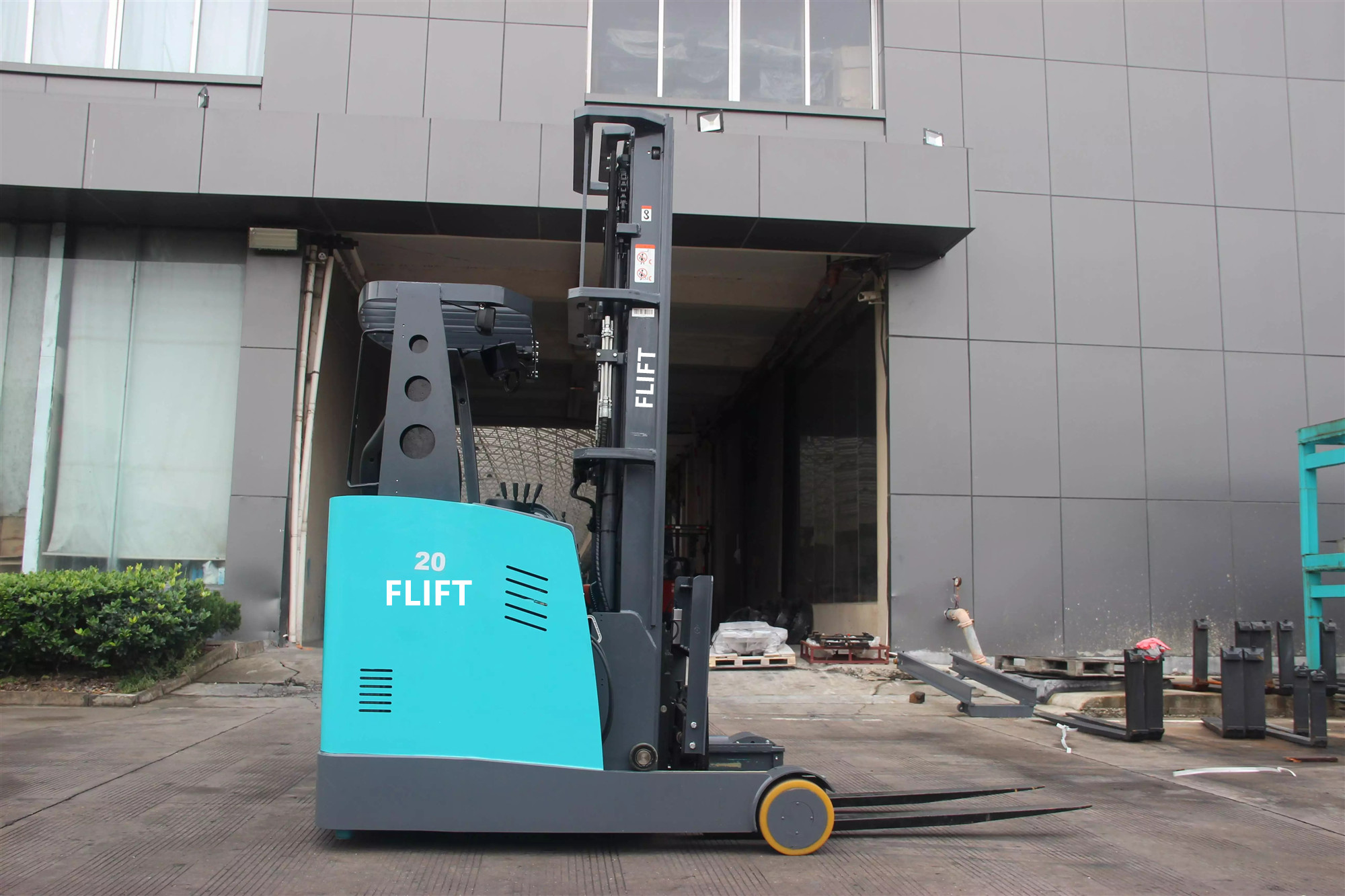

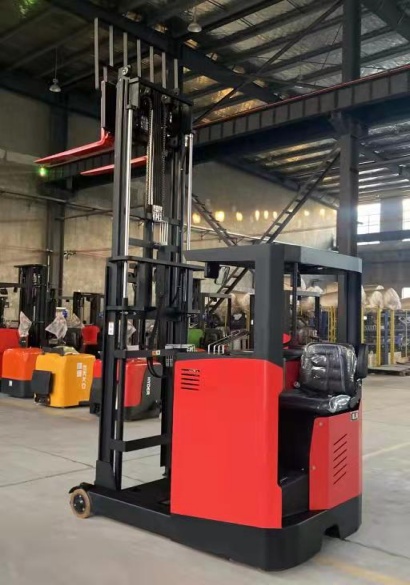

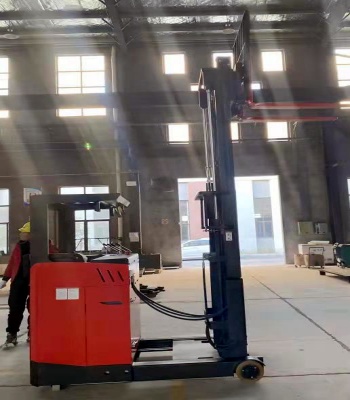

2 Ton Reach Forklift,Forklift Electric,Reach Truck

technical parameters

Description		Reach Truck
Model		FBR15	FBR18	FBR20	FBR25
Power		battery	battery	battery	battery
Operation		seated	seated	seated	seated
Rated load capacity	kg	1500	1800	2000	2500
Lift height	mm	3000-8000	3000-8000	3000-8000	3000-8000
Load center	mm	500	500	500	500
Fork carriage tilt(F/R)	%	3/5	3/5	3/5	3/5
Travel speed(forward and backward)	mm	10	10	10	10
Lifting speed(laden)	mm	300/400	300/400	300/400	300/400
Gradeability	mm	10	10	10	10
Min turning radius	mm	1775	1775	2000	2000
Reach distance	mm	500	500	500	500
Wheelbase	mm	1558	1558	1558	1558
Overall length	mm	2248	2248	2345	2345
Overall width	mm	1200	1200	1230	1230
The fork declines height	mm	2080	2080	2080	2080
Free lift height	mm	100	100	100	100
The fork rises height	mm	4007	4007	4007	4007
Height of overhead guard	mm	2165	2165	2165	2165
Fork size(LxWxT)	mm	920x120x35	920x120x35	1070x120x40	1070x120x40
Fork spread	mm	240-750	240-750	240-750	240-750
Guard clearance(Body)	mm	90	90	90	90
Aisle width with pallet(1200x1200)	mm	2700	2700	2900	2900
Aisle width with pallet(1000x1000)	mm	2600	2600	2700	2700
Service weight	kg	2700	2850	2900	3100
Drive motor	kw	5	5	5	5
Lift motor	kw	10	10	10	10

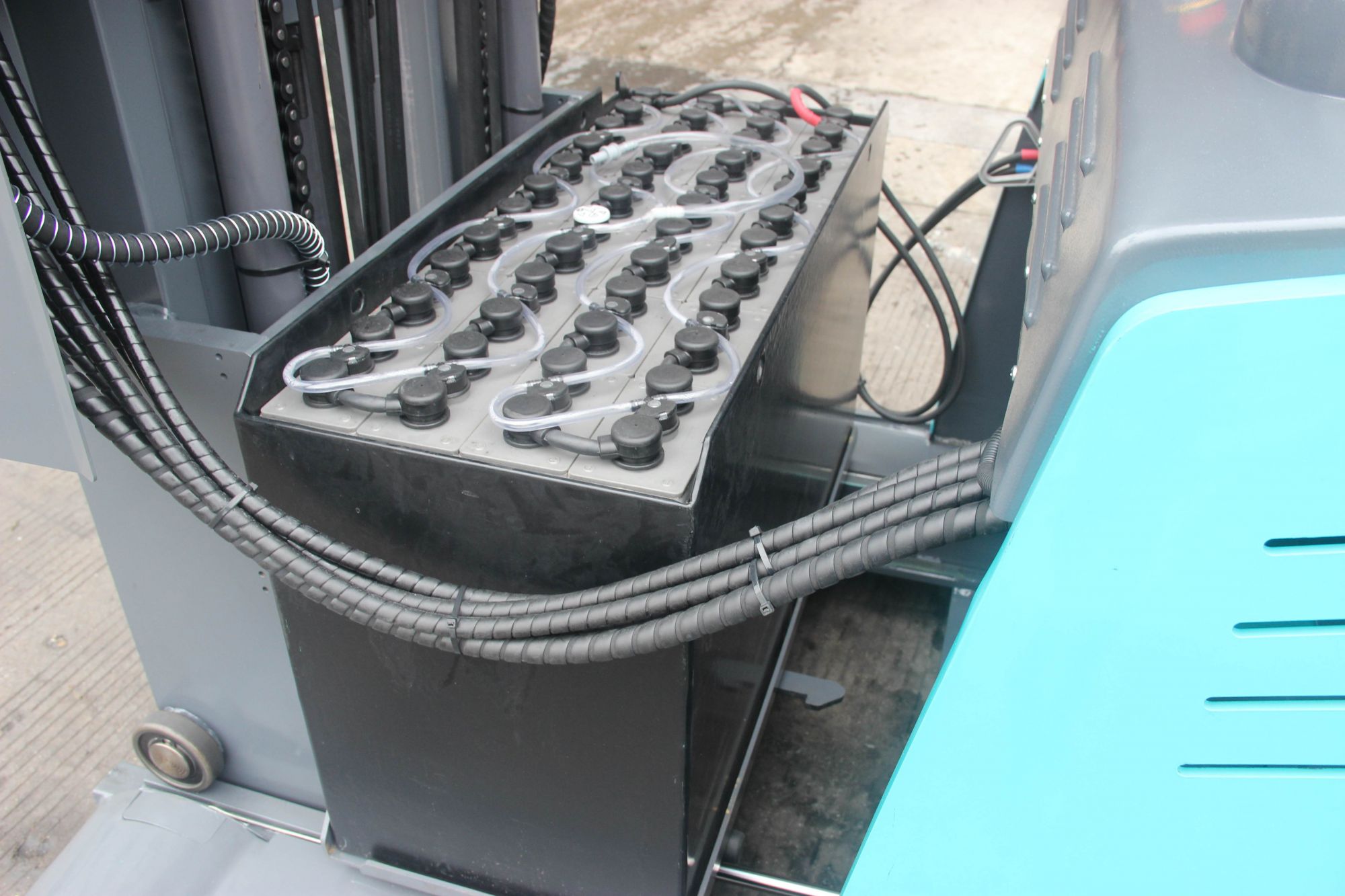

Voltage/capacity	V/AH	48/400	48/400	48/400	48/400
Tyres		polyurethane tyre
Size of front tyre		Ф254x102	Ф254x102	Ф267x114	Ф167x114
Size of rear tyre		Ф343x140	Ф343x140	Ф343x140	Ф343x140
Track width(front)	mm	1087	1087	1087	1087

FEATURES

AC system, stepless speed regulating, high stability
High speed limit, ensure the security of aloft work
EPS electric power-assisted steering with slight and flexible performance

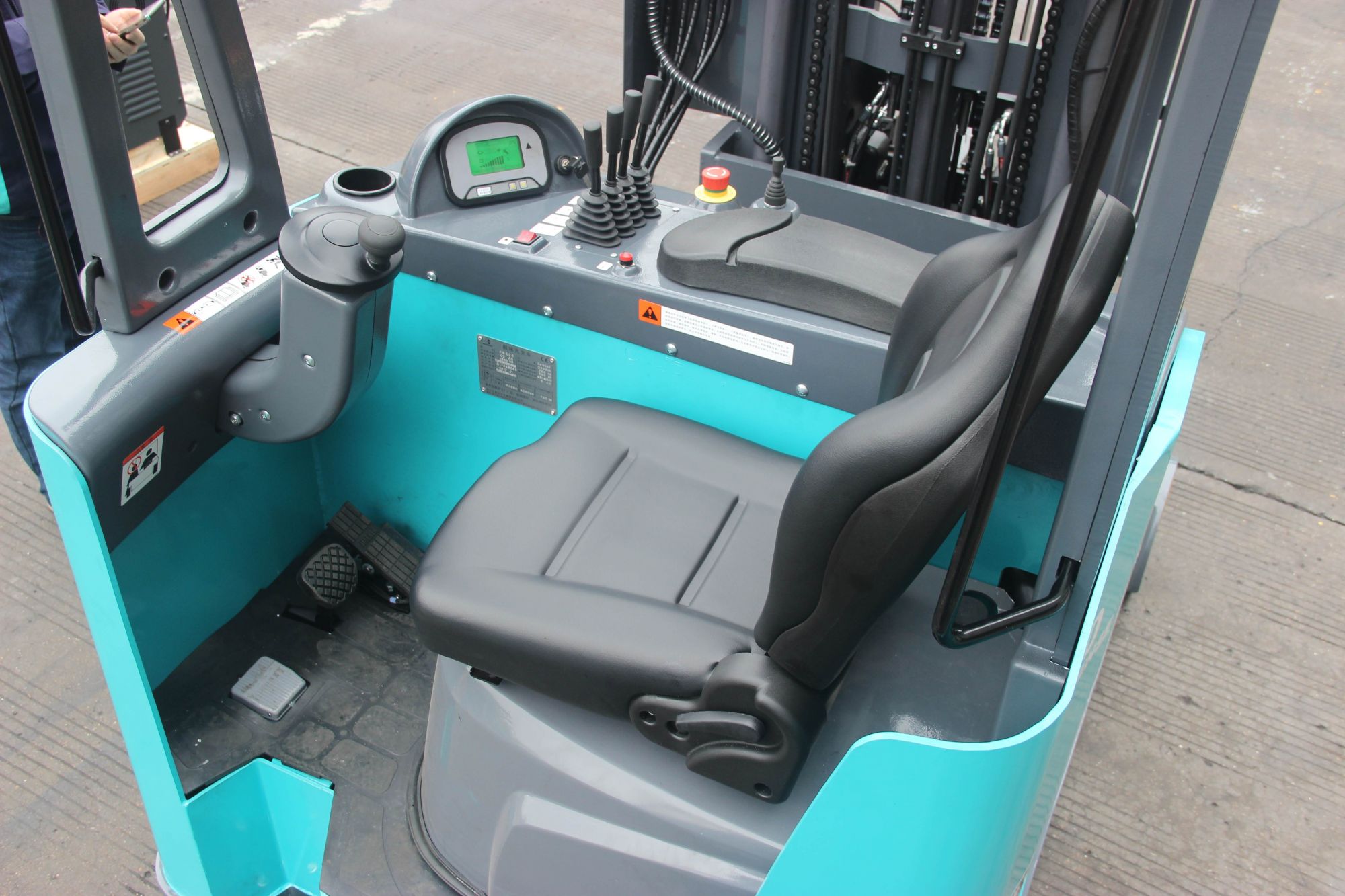

Instruments with angle reminder of steering wheel, the steering wheel reset automatically when the car gets started
LCD display screen and camere(optinal)

Applications

Warranty and continuous original spare parts supply:

14 months or 1500 work-hour warranty period:
Frame, drive axle, wheel, rim, brake, brake pump, steering axle, steering cylinder, hydraulic pump, speed limit valve, fork, lift cylinder, tilt cylinder, control valve, hydraulic pipeline, water tank.
12 months or 1200 work-hour warranty period:
Engine ,hydraulic gear box, battery, instrument panel. Fan belt, all switches, plate friction outside and inside, generator and starter.
Our staff of sales and technical support is available to help you in selecting the right forklift, we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive product supplying. Our ultimate goal is your satisfaction！
