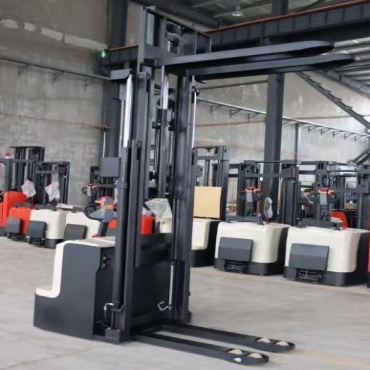

3-Way Pallet Stacker
BrandFLIFT
ModelTC Series
Type3-Way Pallet Stacker
CategoriesElectric Forklift Truck
We're here to help:Easy ways to get the answers you need.
- 3-Way Pallet Stacker
- Specifically designed for all tonnages of forklifts with international standard.With the forklift attachments, forklift will play its role to the best.
Technical Parameters
| Description Model No. |
TC10-75
|
| Rated Capacity (KG) |
1000kg at 6000mm,750kg at 7500mm
|
| Load Dimensions ---mm |
1250*1250
|
| Operate Type |
Stand-on
|
| Max. Lifting Height (MM) |
7500
|
| Min. Turning Radius (MM) |
1880
|
| Min. Stacking Aisle ---mm (1000*1000 Pallet) |
1480
|
| Max Travel Speed km/h-laden/unladen |
7.0/8.0
|
| Load center MM |
500
|
| Fork Dimensions -L/W/T---mm |
1070*100*35
|
| Shift Stroke (1000/1100mm pallet)--mm |
1060/1160
|
| Lifting Speed (MM/S)-laden/unladen |
180/315
|
| Rotating Speed of forks---s/180o |
12
|
| Shift Speed ---mm/s |
240
|
| Overall Length (MM) |
3454
|
| Overall Width (MM) |
1450
|
| Height-Overhead guard--mm |
2320
|
| Height---Mast Lowered(MM) |
3750
|
| Height-Mast Extended w/ Load-Backrest -mm |
8525
|
| Fork Spread Range(MM) |
260-820
|
| Min Ground Clearance--mm |
40
|
| Max. Gradeability ---% |
10
|
| Wheel Type |
Polyurethane Solid Tyre
|
| Driving Wheel (MM) |
Φ343×108
|
| Balance Wheel (MM) |
Φ180×76
|
| Front Wheel (MM) |
Φ140×100
|
| Battery V/AH- Domestic BRAND |
48V /300 AH
|
| Service Brake |
Mech.
|
| Parking Brake |
Mech.
|
| Charger-Intelligent |
48V /50 A
|
| Driving Motor (KW) |
5.5 (AC)
|
| Lifting Motor (KW) |
7.5
|
FEATURES
1:TC Series 3-Way pallet stacker, with 180° rotating fork;
2:The min. width of aisle is 1510mm;
3:Driving position display;
4:More Product Storage - Up to 60% increase;
5:More efficient use of available space;
6:Reduced handling costs.
7:A narrow classis design, small battery compartment and tiller arm steering with 180° range give this compact stacker excellet manoeuvrability, even in limited space.
8:Full AC system, maintenance-free, high efficiency and energy saving, strong endurance；
9:The minimum working aisle is 1480mm, and the maximum lifting height is 9000mm. Forklifts do not need to turn, and the stacking and taking of goods on both sides ,it can be realized through the rotation of the fork, effectively increasing the storage capacity;
10:The mast is made of KRUPP steel from Germany, with good load capacity and stability;

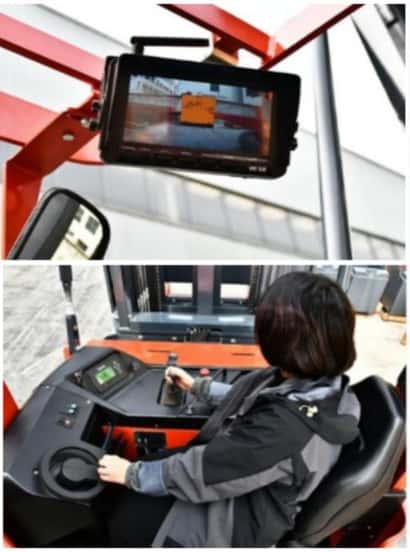

11:Electric steering, easy to operate rod design and multi-functional intelligent instrument panel, with wheel display function, easy to operate, with soft cushion, reduce driving fatigue;
12:Standard side pull battery, easy to replace battery and daily mainten
3:Driving position display;
4:More Product Storage - Up to 60% increase;
5:More efficient use of available space;
6:Reduced handling costs.
7:A narrow classis design, small battery compartment and tiller arm steering with 180° range give this compact stacker excellet manoeuvrability, even in limited space.
8:Full AC system, maintenance-free, high efficiency and energy saving, strong endurance；
9:The minimum working aisle is 1480mm, and the maximum lifting height is 9000mm. Forklifts do not need to turn, and the stacking and taking of goods on both sides ,it can be realized through the rotation of the fork, effectively increasing the storage capacity;
10:The mast is made of KRUPP steel from Germany, with good load capacity and stability;
11:Electric steering, easy to operate rod design and multi-functional intelligent instrument panel, with wheel display function, easy to operate, with soft cushion, reduce driving fatigue;
12:Standard side pull battery, easy to replace battery and daily mainten
Warranty and continuous original spare parts supply:
- 14 months or 1500 work-hour warranty period:
- Frame, drive axle, wheel, rim, brake, brake pump, steering axle, steering cylinder, hydraulic pump, speed limit valve, fork, lift cylinder, tilt cylinder, control valve, hydraulic pipeline, water tank.
- 12 months or 1200 work-hour warranty period:
- Engine ,hydraulic gear box, battery, instrument panel. Fan belt, all switches, plate friction outside and inside, generator and starter.
