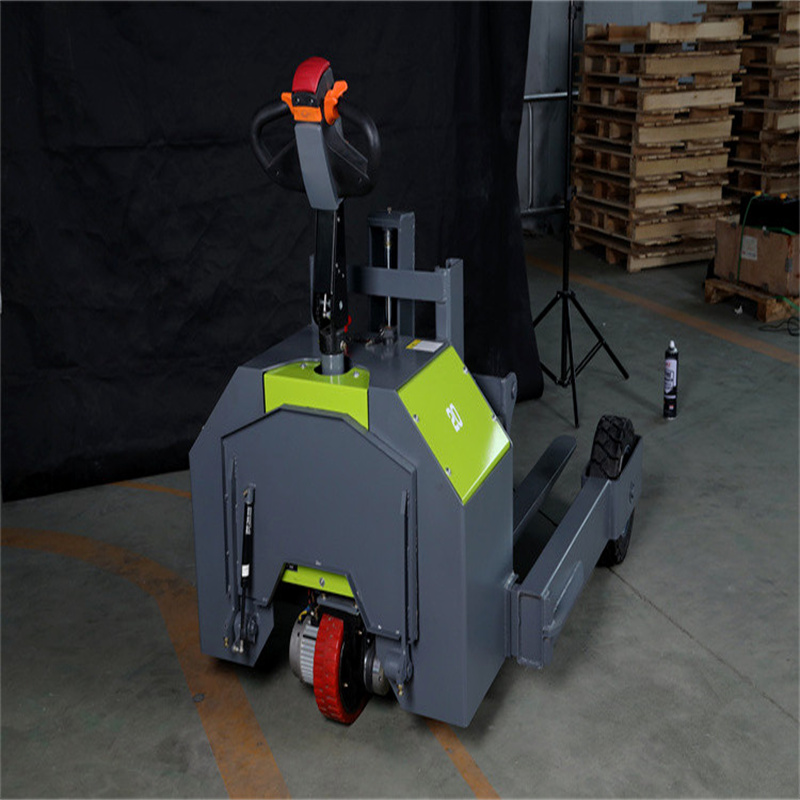

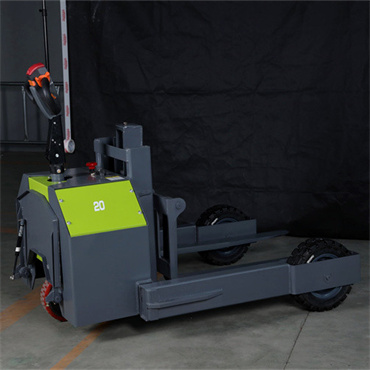

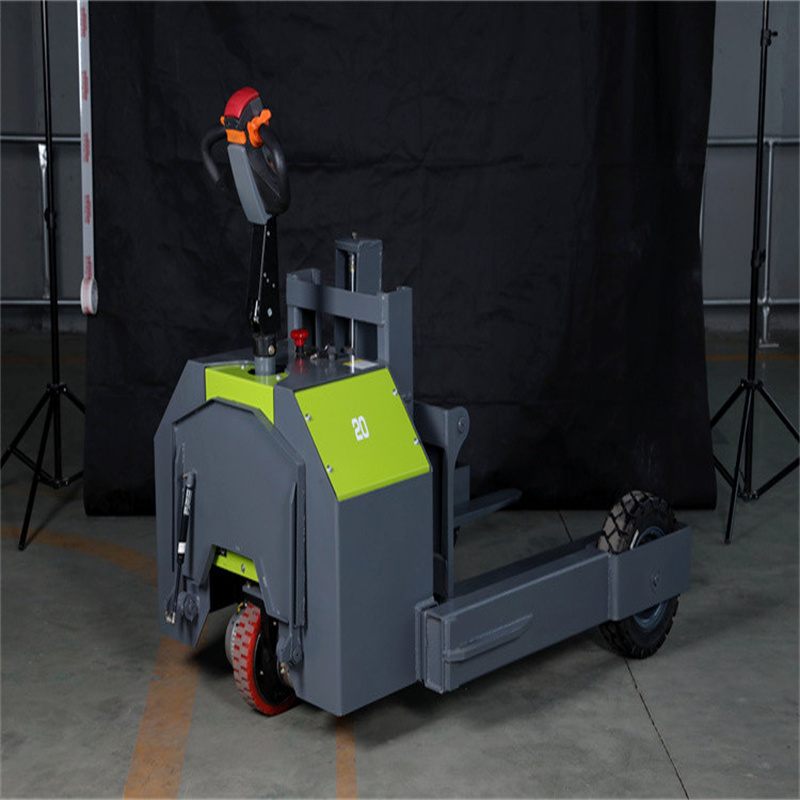

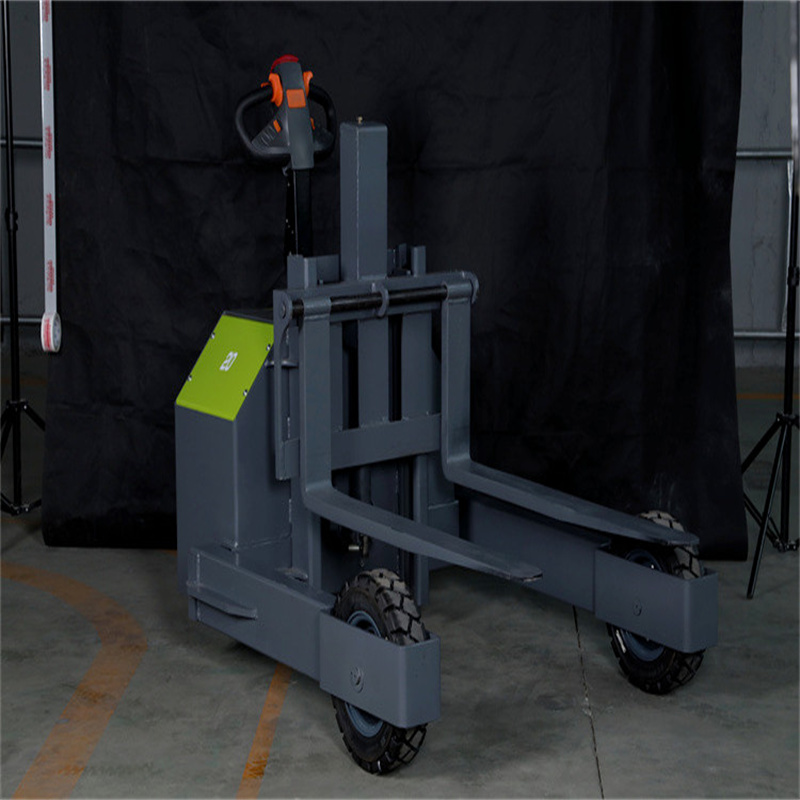

CTXA20 2t Rough-Terrain-Pallet-Truck
Power TypeLead Battery
Operation TypeStanding Driving
Load Center400mm
Lift Height200-400mm
Wheel Base1151mm
We're here to help:Easy ways to get the answers you need.
- CTXA20 2t Rough Terrain Pallet Truck
- Automatic Intelligence System CTXA20 2.0ton Innovative Standing Driving Rough Terrain Pallet Truck with Load Center 400mm.
.jpg)
Technocal Parameters
| FLIFT Electric Out-door Forklift Specification | ||||
FEATURE |
1.1 | Origin | China | |
| 1.2 | Brand | FLIFT | ||
| 1.3 | Model | CTXA-20 | ||
| 1.4 | Power Type | Lead Battery | ||
| 1.5 | Operation Type | Standing Driving | ||
| 1.6 | Load Capacity | kg | 2000 | |
| 1.7 | Load Center | mm | 400 | |
| 1.8 | Lift Height | mm | 200-400 | |
| 1.9 | Wheel Base | mm | 1151 | |
DIMENSION |
2.1 | Overal Dimension | mm | 1600×1200 |
| 2.2 | Fork Dimension(L×W×H) | mm | 1070×140×60 | |
| 2.3 | Fork Width Min./Max. | mm | 900/1350 | |
| 2.4 | Turning Radius | mm | 1600 | |
| 2.5 | Channel Width with 1000*1200mm tray | mm | 2678 | |
WEIGHT |
3.1 | Self weight | kg | 600 |
| 3.2 | Battery Weight | kg | 52 | |
WHEEL |
4.1 | Wheel Type | Solid Rubber | |
| 4.2 | Driving Wheel Sizes | mm | 250×70 | |
| 4.4 | Loading wheel sizes | mm | 370×100 | |
| 4.5 | Min. Ground Clearance | mm | 100 | |
DRIVE＆CONTROL |
5.1 | Driving Motor | kw(60min) | 1.5 |
| 5.2 | Liifting Motor | kw(60min) | 2.2 | |
| 5.3 | Batterydimension | mm | 271×174×213 | |
| 5.4 | Battery Voltage/Capacity | V/Ah | 24/80 | |
| 5.5 | Controller | Brushless | ||
| 5.6 | Working Pressure | mpa | 14 | |
PERFORMANCE |
6.1 | Driving Speed | km/h | 3.5/4 |
| 6.2 | Lifting Speed | mm/s | 45/55 | |
| 6.3 | Lowering Speed | mm/s | 40/55 | |
| 6.4 | Max Climbing Ability | % | 4 | |
| 6.5 | Service Braking | electromagnetic induction | ||
| 6.6 | Parking Braking | electromagnetic induction | ||
OTHER |
7.1 | Driving type | Electric | |
| 7.2 | Steering Type | Manual | ||
| 7.3 | Noise Level | 63 | ||
| 7.4 | Waterproof Grade | IP54 | ||
FEATURES
1.Use special C-shaped channel steel for forklifts.
2.Sealing and waterproofing of the wiring plug of the whole vehicle.
3.Enhanced Productivity.
4. It adopts the well-known hydraulic pump station in the industry, with low noise and low power consumption.
.jpg)
Applications
.jpg)
Warranty and continuous original spare parts supply:
14 months or 1500 work-hour warranty period:
Frame, drive axle, wheel, rim, brake, brake pump, steering axle, steering cylinder, hydraulic pump, speed limit valve, fork, lift cylinder, tilt cylinder, control valve, hydraulic pipeline, water tank.
12 months or 1200 work-hour warranty period:
Engine ,hydraulic gear box, battery, instrument panel. Fan belt, all switches, plate friction outside and inside, generator and starter.
Our staff of sales and technical support is available to help you in selecting the right forklift, we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive product supplying. Our ultimate goal is your satisfaction！
Sales Service
We offer 2 years or 2000 working hours period of warranty to our partners. In case of any defects or quality problems during the warranty period, Maximal will supply technical and spare parts supports to help our partners solving the problems immediately. 7x24 onlineservice are ready for you to ensure your equipments in excellent working condition.
.jpg)
.jpg)
.jpg)
Pre-Sales Service
* Inquiry and consulting support.
* Inspection support
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
