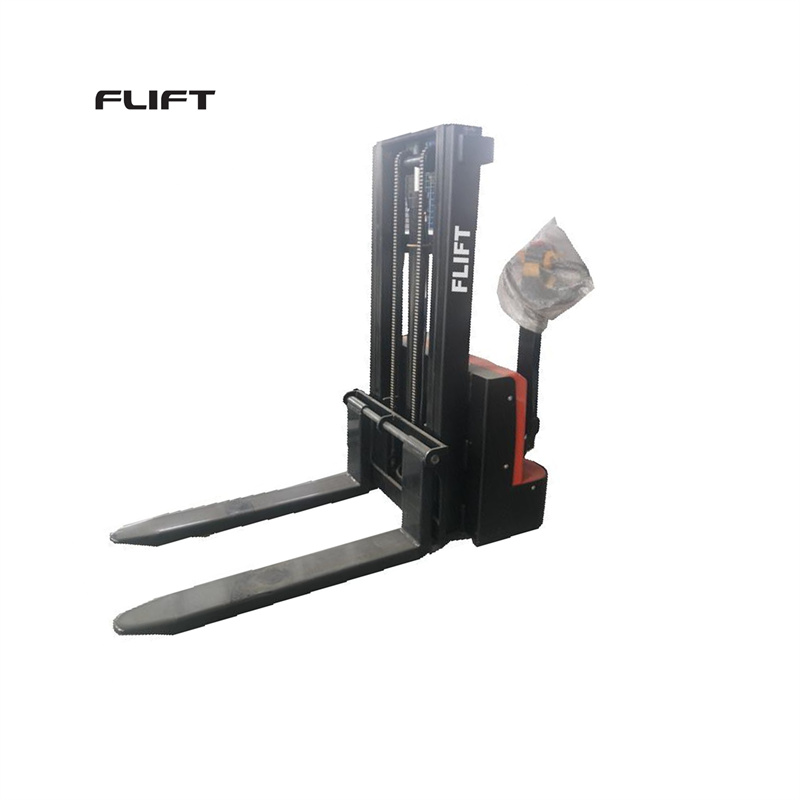

DGX1220 1.2t Walking Type Electric Stacker
Power TypeStorage Battery
Driving TypeWalking Type
Rated Capacity1200kg
Load Centre400mm
lift Height2000mm
We're here to help:Easy ways to get the answers you need.
- 1.2t Electric Stacker
- Innovative New Design Walking Type Electric Stacker with Fork Length 1080mm.
.jpg)
technology parameters
|
FLIFT DGX12-15 series battery forklift technical parameters table |
||||||||
|
Overline |
1 |
Place of Origin |
|
Changge |
Changge |
Changge |
Changge |
|
|
|
2 |
Model |
|
DGX1220 |
DGX1225 |
DGX1230 |
DGX1520 |
|
|
|
3 |
Power Type |
|
Storage Battery |
Storage Battery |
Storage Battery |
Storage Battery |
|
|
|
4 |
Rated Capacity |
Kg |
1200 |
1200 |
1200 |
1500 |
|
|
|
5 |
Load Center |
mm |
400 |
400 |
400 |
400 |
|
|
Size |
6 |
Lifting Height |
mm |
2000 |
2500 |
3000 |
2000 |
|
|
|
7 |
Fork Size |
L×W×T |
mm |
1080×140×60 |
1080×140×60 |
1080×140×60 |
1080×140×60 |
|
|
8 |
Fork Distance（Outside） |
Min./Max. |
mm |
685 |
685 |
685 |
685 |
|
|
9 |
|
|
|
|
|
|
|
|
|
10 |
Overall dimensions |
Overall Length |
mm |
1730 |
1730 |
1730 |
1730 |
|
|
11 |
|
Overall Width |
mm |
800 |
800 |
800 |
800 |
|
|
12 |
|
Mast Lowered Height |
mm |
1580 |
2030 |
2630 |
1580 |
|
|
13 |
|
Mast Extended Height |
mm |
2550 |
3250 |
3750 |
2550 |
|
|
14 |
Min. Turning Radius |
mm |
1410 |
1410 |
1410 |
1410 |
|
|
|
15 |
Minimum right-angle channel width |
mm |
1000 |
1000 |
1000 |
1000 |
|
|
Performance |
16 |
Speed |
Driving Speed(Full Load） |
km/h |
4 |
4 |
4 |
3 |
|
|
17 |
|
Lift Speed（Full Load） |
mm/sec |
130 |
130 |
130 |
110 |
|
|
18 |
Max. Gradeability (Full Load） |
% |
3 |
3 |
3 |
3 |
|
|
|
19 |
Self-Weight |
Kg |
500 |
540 |
620 |
600 |
|
|
Tire |
20 |
Tire |
Load-bearing wheel (polyurethane)） |
|
80×70 |
80×70 |
80×70 |
80×70 |
|
|
21 |
|
Training wheel (polyurethane) |
|
110×55 |
110×55 |
110×55 |
110×55 |
|
|
22 |
|
Driving wheel (polyurethane) |
|
210×70 |
210×70 |
210×70 |
210×70 |
|
|
23 |
Wheel Base |
Front |
mm |
530 |
530 |
530 |
530 |
|
|
24 |
|
Rear |
mm |
503 |
503 |
503 |
503 |
|
|
25 |
Wheelbase |
mm |
1151 |
1151 |
1151 |
1151 |
|
|
|
26 |
Min. ground clearance |
mm |
30 |
30 |
30 |
30 |
|
|
Power unit and control |
27 |
storage battery |
Voltage |
V/Ah |
24V/60Ah |
24V/60Ah |
24V/60Ah |
24V/100Ah |
|
|
28 |
|
Weight |
kg |
52 |
52 |
52 |
52 |
|
|
29 |
Motor |
Driving Motor（AC） |
kw(60min) |
0.8 |
0.8 |
0.8 |
0.8 |
|
|
30 |
|
Oil pump motor（AC） |
kw(15min) |
2.2 |
2.2 |
2.2 |
2.2 |
FEATURES
1.Innovative Design;
2.Simplified Serviceability;
3.Enhanced Productivity;
4. The steering is flexible and the whole machine runs smoothly.
5. Adjustable auxiliary wheels to solve the slip of the driving wheels with traditional structure.
6.Maintenance-free power battery, and optional 24V/60Ah/80Ah/100Ah.
7.The fault lamp is installed externally, which is convenient for maintenance and judgment.
8.Control system intelligent code diagnosis fault, low voltage automatic protection, intelligent charging device.
.jpg)

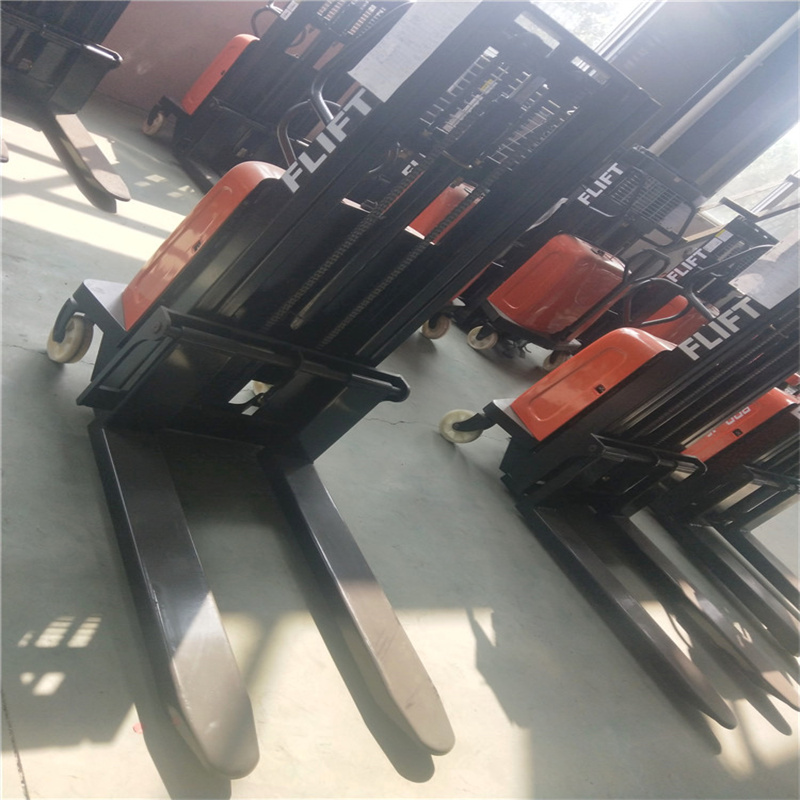

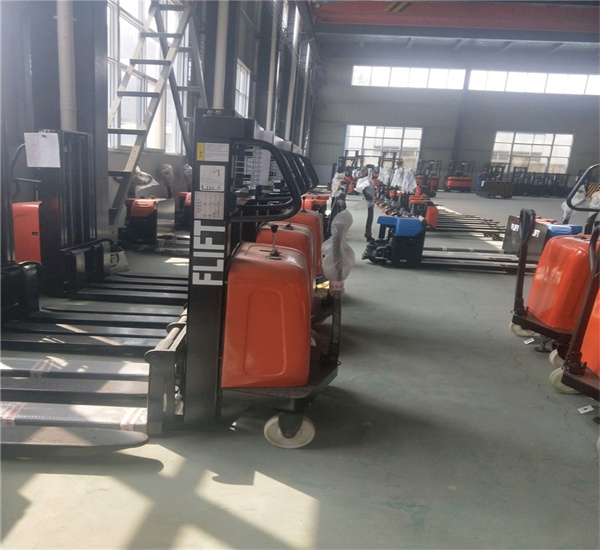

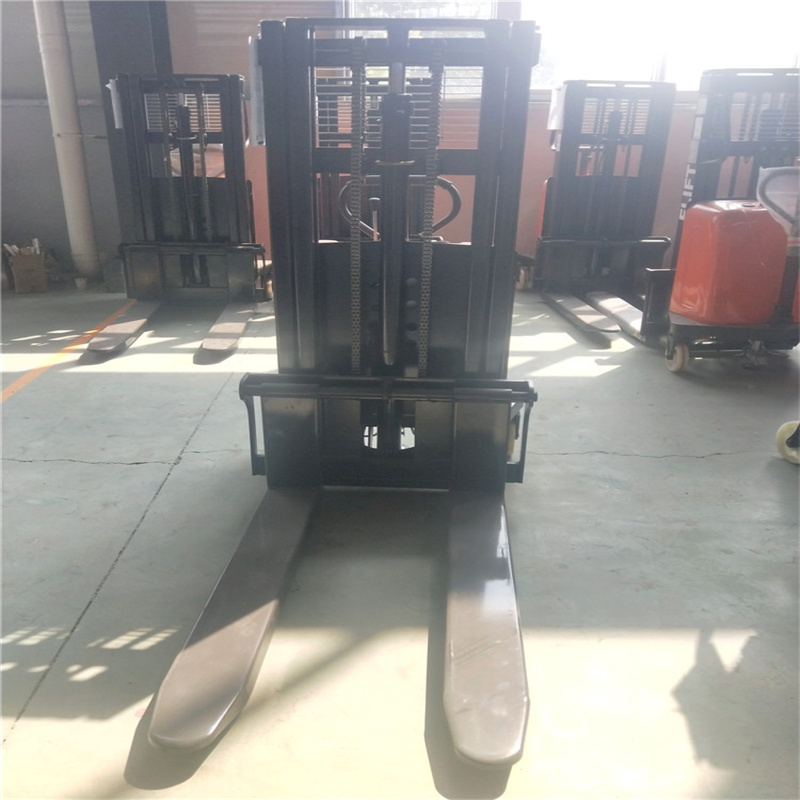

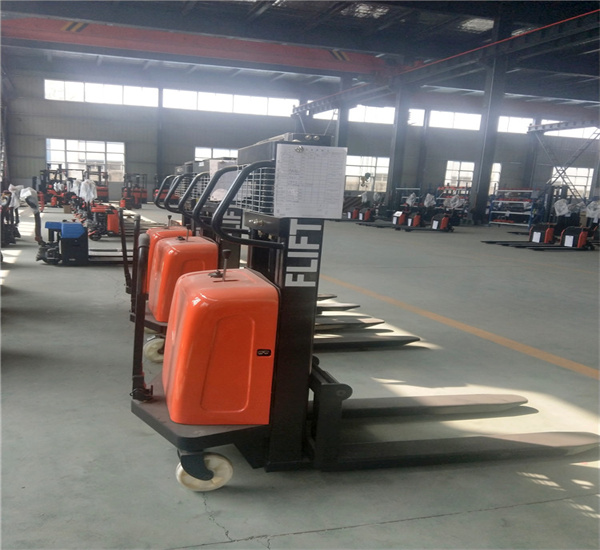

product Display
.jpg)
.jpg)
Sales Service
We offer 2 years or 2000 working hours period of warranty to our partners. In case of any defects or quality problems during the warranty period, Maximal will supply technical and spare parts supports to help our partners solving the problems immediately. 7x24 onlineservice are ready for you to ensure your equipments in excellent working condition.
.jpg)
.jpg)
.jpg)
Pre-Sales Service
* Inquiry and consulting support.
* Inspection support
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
