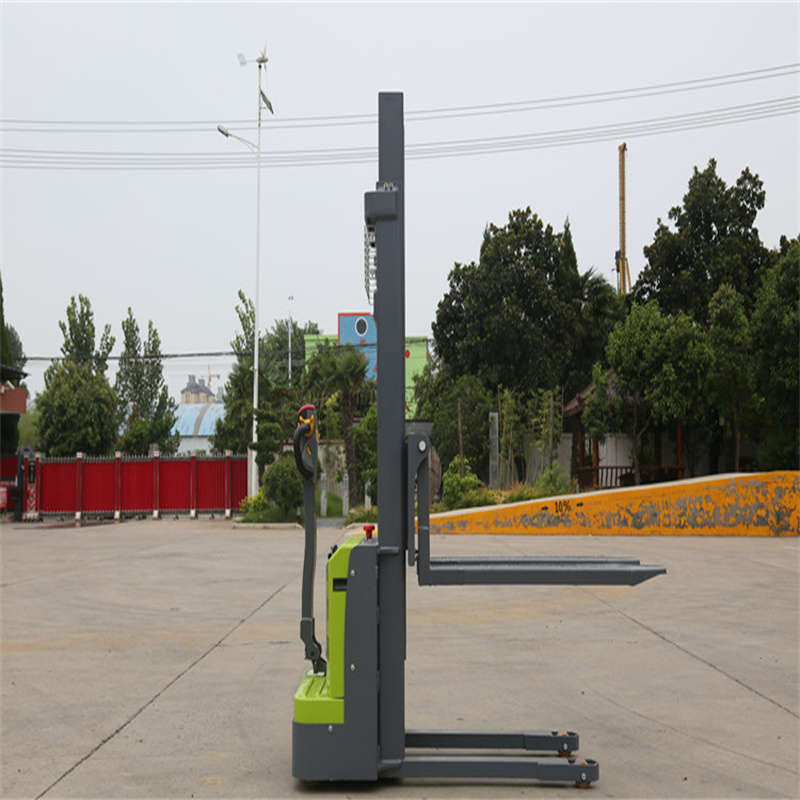

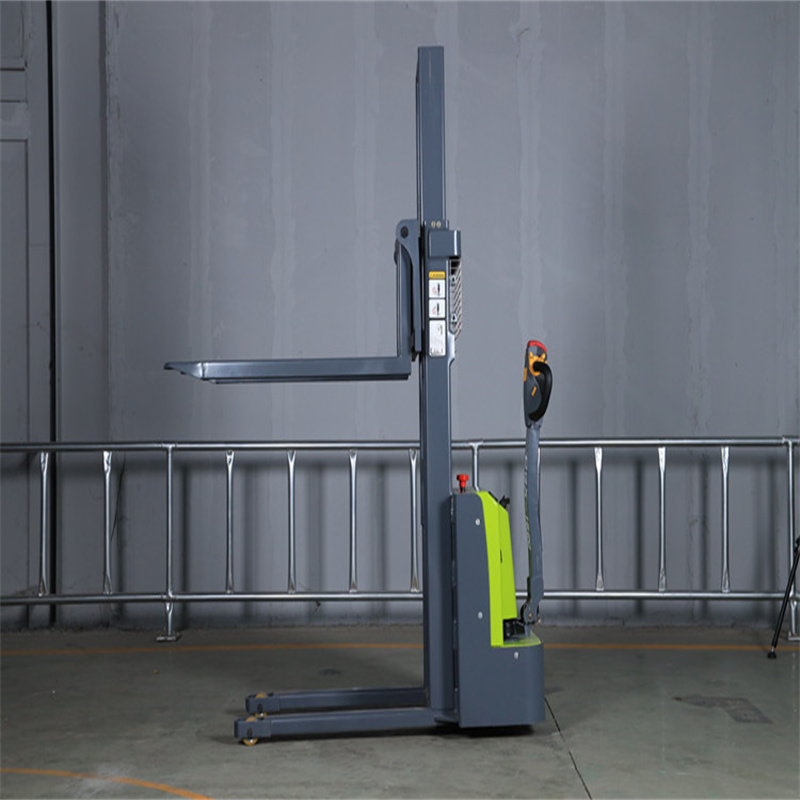

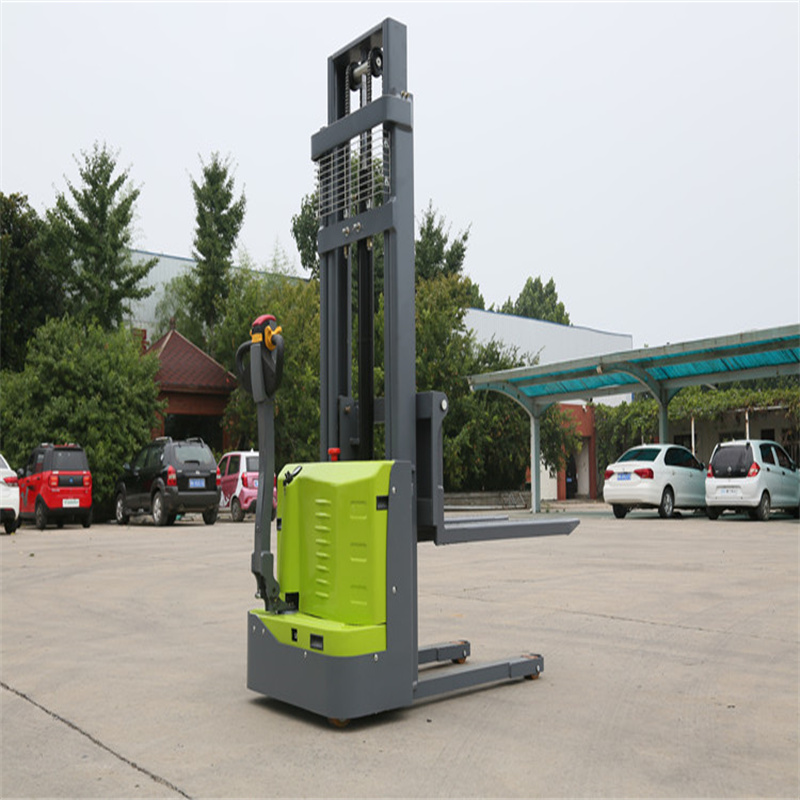

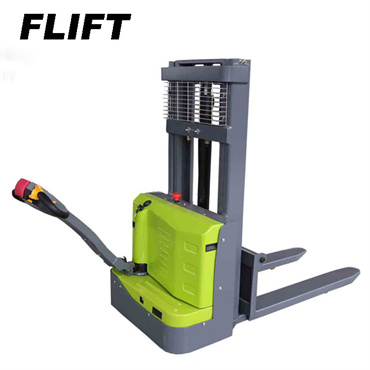

DGX1520 1.5t Electric Pallet Stacker
ModelDGX1520
Rated Capacity1500kg
Load Centre400mm
Lift height 2000mm
Fork Length1080mm
We're here to help:Easy ways to get the answers you need.
- 1.5t Electric Pallet Stacker
- Easy Operation High Safety Load Center 400mm Electric Pallet Stacker Fork Length 1080mm.
.jpg)
technology parameters
|
FLIFT DGX12-15 series battery forklift technical parameters table |
||||||||
|
Overline |
1 |
Place of Origin |
|
Changge |
Changge |
Changge |
Changge |
|
|
2 |
Model |
|
DGX1220 |
DGX1225 |
DGX1230 |
DGX1520 |
||
|
3 |
Power Type |
|
Storage Battery |
Storage Battery |
Storage Battery |
Storage Battery |
||
|
4 |
Rated Capacity |
Kg |
1200 |
1200 |
1200 |
1500 |
||
|
5 |
Load Center |
mm |
400 |
400 |
400 |
400 |
||
|
Size |
6 |
Lifting Height |
mm |
2000 |
2500 |
3000 |
2000 |
|
|
7 |
Fork Size |
L×W×T |
mm |
1080×140×60 |
1080×140×60 |
1080×140×60 |
1080×140×60 |
|
|
8 |
Fork Distance（Outside） |
Min./Max. |
mm |
685 |
685 |
685 |
685 |
|
|
9 |
|
|
|
|
|
|
||
|
10 |
Overall dimensions |
Overall Length |
mm |
1730 |
1730 |
1730 |
1730 |
|
|
11 |
Overall Width |
mm |
800 |
800 |
800 |
800 |
||
|
12 |
Mast Lowered Height |
mm |
1580 |
2030 |
2630 |
1580 |
||
|
13 |
Mast Extended Height |
mm |
2550 |
3250 |
3750 |
2550 |
||
|
14 |
Min. Turning Radius |
mm |
1410 |
1410 |
1410 |
1410 |
||
|
15 |
Minimum right-angle channel width |
mm |
1000 |
1000 |
1000 |
1000 |
||
|
Performance |
16 |
Speed |
Driving Speed(Full Load） |
km/h |
4 |
4 |
4 |
3 |
|
17 |
Lift Speed（Full Load） |
mm/sec |
130 |
130 |
130 |
110 |
||
|
18 |
Max. Gradeability (Full Load） |
% |
3 |
3 |
3 |
3 |
||
|
19 |
Self-Weight |
Kg |
500 |
540 |
620 |
600 |
||
|
Tire |
20 |
Tire |
Load-bearing wheel (polyurethane)） |
|
80×70 |
80×70 |
80×70 |
80×70 |
|
21 |
Training wheel (polyurethane) |
|
110×55 |
110×55 |
110×55 |
110×55 |
||
|
22 |
Driving wheel (polyurethane) |
|
210×70 |
210×70 |
210×70 |
210×70 |
||
|
23 |
Wheel Base |
Front |
mm |
530 |
530 |
530 |
530 |
|
|
24 |
Rear |
mm |
503 |
503 |
503 |
503 |
||
|
25 |
Wheelbase |
mm |
1151 |
1151 |
1151 |
1151 |
||
|
26 |
Min. ground clearance |
mm |
30 |
30 |
30 |
30 |
||
|
Power unit and control |
27 |
storage battery |
Voltage |
V/Ah |
24V/60Ah |
24V/60Ah |
24V/60Ah |
24V/100Ah |
|
28 |
Weight |
kg |
52 |
52 |
52 |
52 |
||
|
29 |
Motor |
Driving Motor（AC） |
kw(60min) |
0.8 |
0.8 |
0.8 |
0.8 |
|
|
30 |
Oil pump motor（AC） |
kw(15min) |
2.2 |
2.2 |
2.2 |
2.2 |
||
|
31 |
Controller |
Place of Origin |
|
CURTIS1212 |
CURTIS1212 |
CURTIS1212 |
CURTIS1212 |
|
|
32 |
Operation Pressure for Attachment |
Mpa |
12 |
12 |
12 |
12 |
||
FEATURES
1.Innovative Design;
2.Simplified Serviceability;
3.Enhanced Productivity;
4.Electric stacker is a kind of transport vehicle for loading and unloading, stacking and short-distance transportation of pallets.
5.Including: all electric stacker, semi electric stacker, forward moving stacker, forward moving all electric stacker, forward moving counterweight stacker.
6.Electric stacker is widely used in factory workshop, warehouse, distribution center, station, freight yard and so on. It can enter the cabin, carriage and container to load and unload pallet goods.
.jpg)

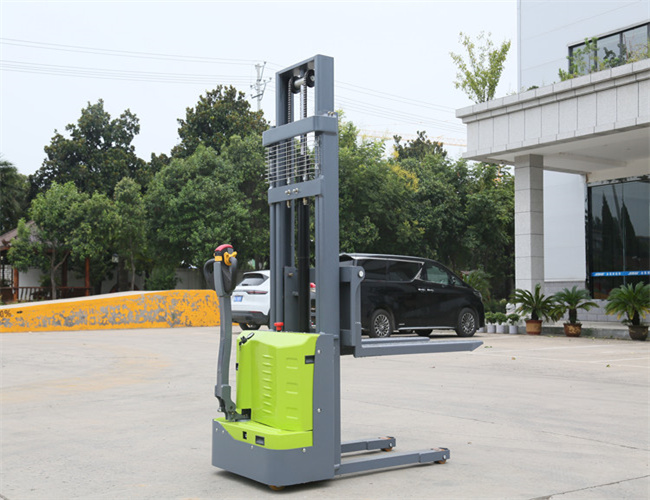

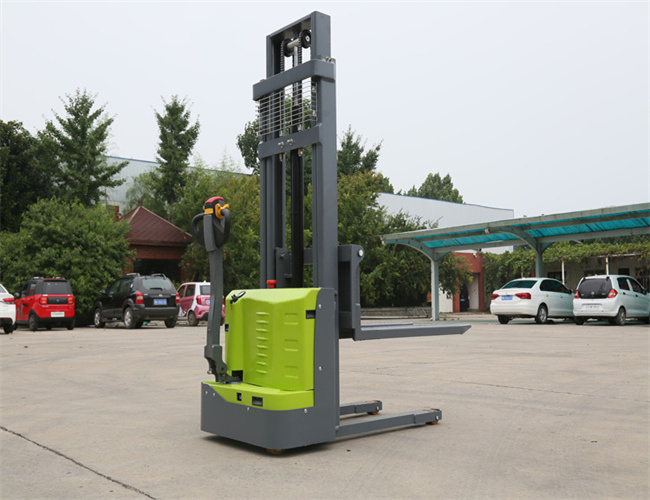

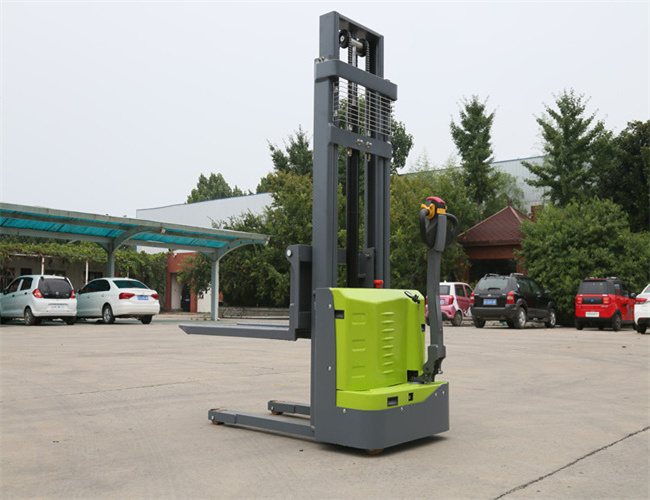

Product Display
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Sales Service
We offer 2 years or 2000 working hours period of warranty to our partners. In case of any defects or quality problems during the warranty period, Maximal will supply technical and spare parts supports to help our partners solving the problems immediately. 7x24 onlineservice are ready for you to ensure your equipments in excellent working condition.
.jpg)
.jpg)
.jpg)
Pre-Sales Service
* Inquiry and consulting support.
* Inspection support
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
