DGXC1530 1.5t Outdoor Electric Pallet Stacker
Power TypeLead Battery
Lifting Height3000mm
Load Center400mm
Wheel Base1151mm
Turning Radius1600mm
We're here to help:Easy ways to get the answers you need.
- 1.5t Electric Pallet Stacker
- Inovative High Safety DGXC1530 Electric Pallet Stacker with Fork Length 1080mm.
.jpg)
Technical Parameters
| FLIFT Electric Out-door Forklift Specification | ||||
FEATURE |
1.1 | Origin | China | |
| 1.2 | Brand | FLIFT | ||
| 1.3 | Model | DGXC15-30 | ||
| 1.4 | Power Type | Lead Battery | ||
| 1.5 | Operation Type | Standing Driving | ||
| 1.6 | Load Capacity | kg | 1500 | |
| 1.7 | Load Center | mm | 400 | |
| 1.8 | Lift Height | mm | 3000 | |
| 1.9 | Wheel Base | mm | 1151 | |
DIMENSION |
2.1 | Overal Dimension | mm | 1600×1200 |
| 2.2 | Fork Dimension(L×W×H) | mm | 1080×140×60 | |
| 2.3 | Fork Width Min./Max. | mm | 685 | |
| 2.4 | Turning Radius | mm | 1600 | |
| 2.5 | Min.Right Angle Channel Width | mm | 1000 | |
WEIGHT |
3.1 | Self weight | kg | 600 |
| 3.2 | Battery Weight | kg | 52 | |
WHEEL |
4.1 | Wheel Type | Solid Rubber | |
| 4.2 | Driving Wheel Sizes | mm | 250×70 | |
| 4.4 | Loading wheel sizes | mm | 370×100 | |
| 4.5 | Min. Ground Clearance | mm | 114 | |
DRIVE&CONTROL |
5.1 | Driving Motor | kw(60min) | 1.5 |
| 5.2 | Liifting Motor | kw(60min) | 2.2 | |
| 5.3 | Battery dimension | mm | 271×174×213 | |
| 5.4 | Battery Voltage/Capacity | V/Ah | 24/80 | |
| 5.5 | Controller | Brushless | ||
| 5.6 | Working Pressure | mpa | 14 | |
PERFORMANCE |
6.1 | Driving Speed | km/h | 3.5/4 |
| 6.2 | Lifting Speed | mm/s | 45/55 | |
| 6.3 | Lowering Speed | mm/s | 40/55 | |
| 6.4 | Traction | kN | 0.9 | |
| 6.5 | Max. traction | kN | 0.9 | |
| 6.6 | Max Climbing Ability | % | 4 | |
| 6.7 | Service Braking | electromagnetic induction | ||
| 6.8 | Parking Braking | electromagnetic induction | ||
OTHER |
7.1 | Driving type | Electric | |
| 7.2 | Steering Type | Manual | ||
| 7.3 | Noise Level | 63 | ||
| 7.4 | Waterproof Grade | IP54 | ||
FEATURES
1.Innovative Design;
2.Simplified Serviceability;
3.Enhanced Productivity;
4.Use special C-shaped channel steel for forklifts.
5.Sealing and waterproofing of the wiring plug of the whole vehicle.
6.It adopts the well-known hydraulic pump station in the industry, with low noise and low power consumption.
7.Lifting height of the mast is optional 2m/2.5m/3m
8.Super low & Non-slip step.
.jpg)

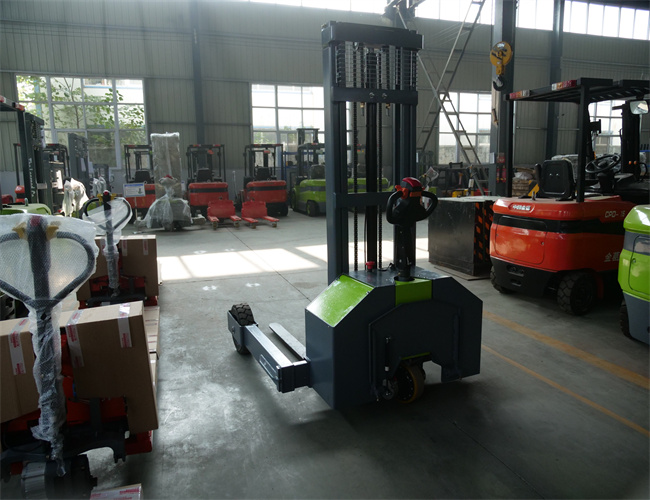

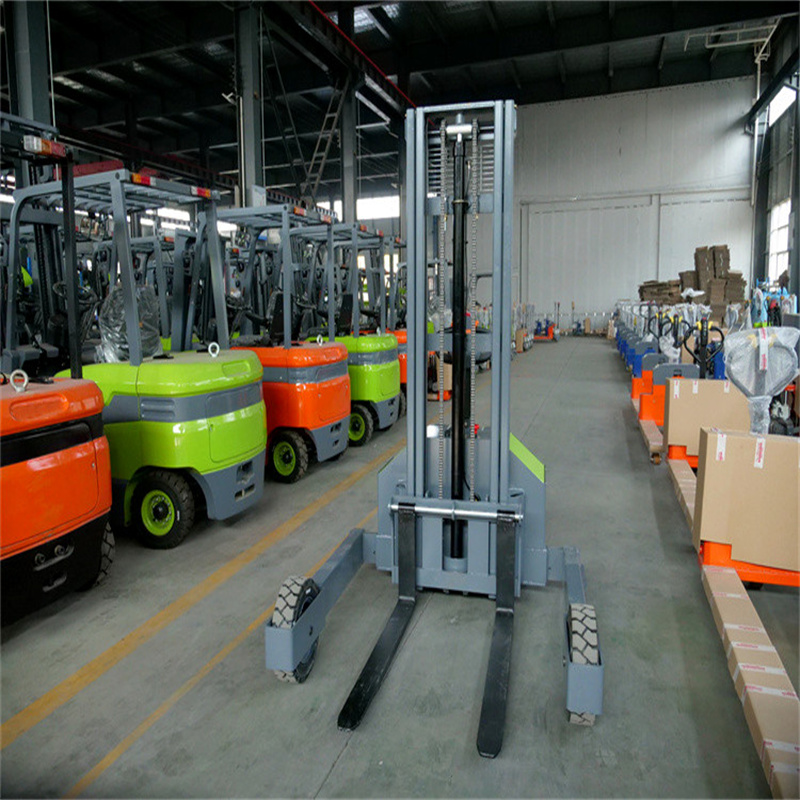

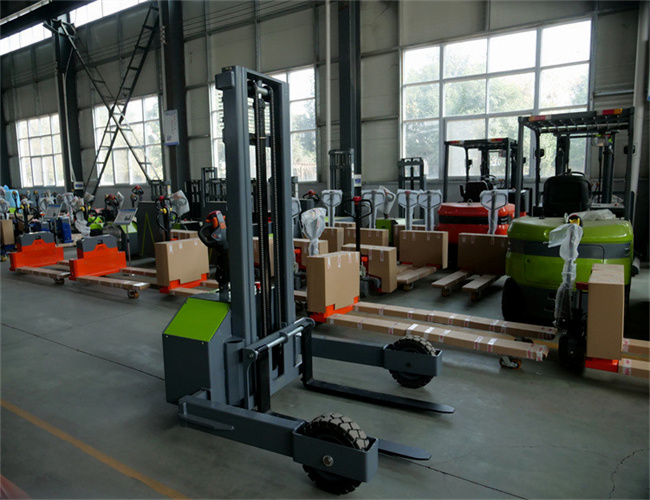

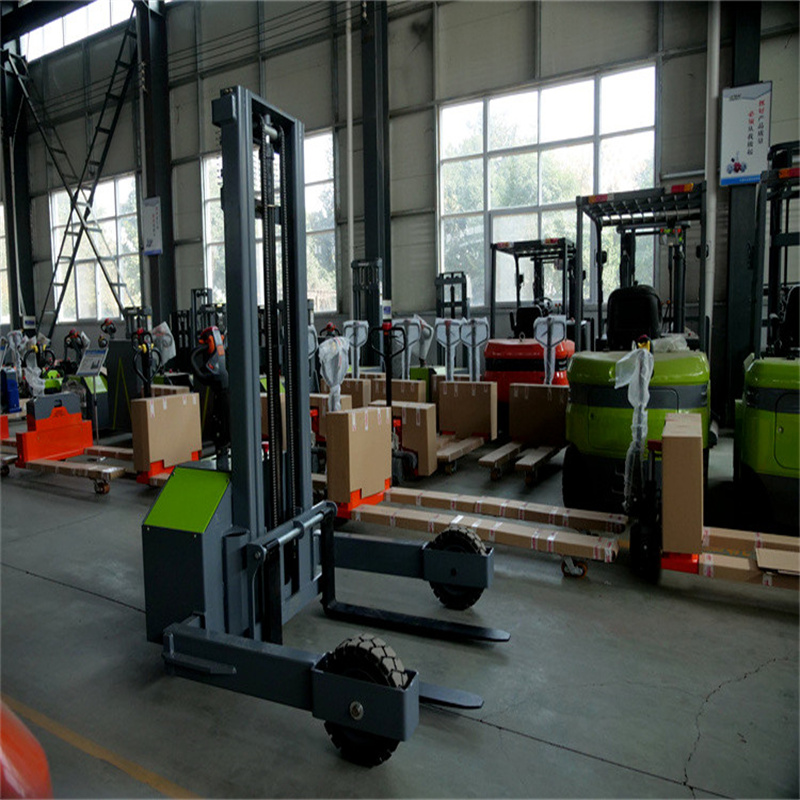

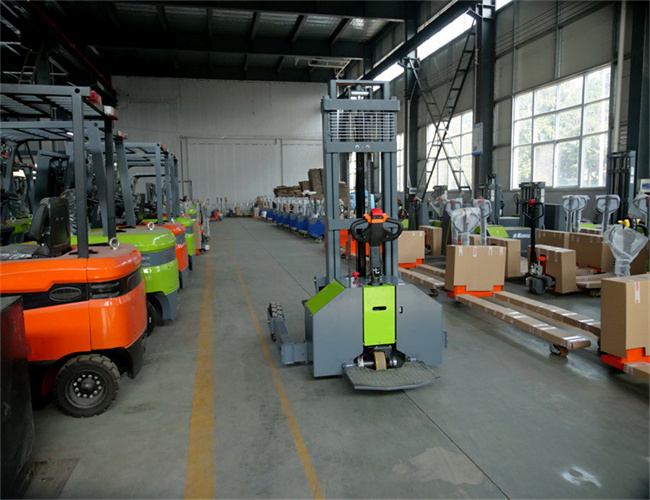

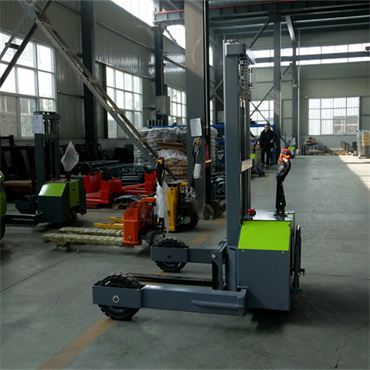

product display
.jpg)
.jpg)
.jpg)
Sales Service
We offer 2 years or 2000 working hours period of warranty to our partners. In case of any defects or quality problems during the warranty period, Maximal will supply technical and spare parts supports to help our partners solving the problems immediately. 7x24 onlineservice are ready for you to ensure your equipments in excellent working condition.
.jpg)
.jpg)
.jpg)
Pre-Sales Service
* Inquiry and consulting support.
* Inspection support
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
